SMC Networks CYP Series Technical Data Manual page 8

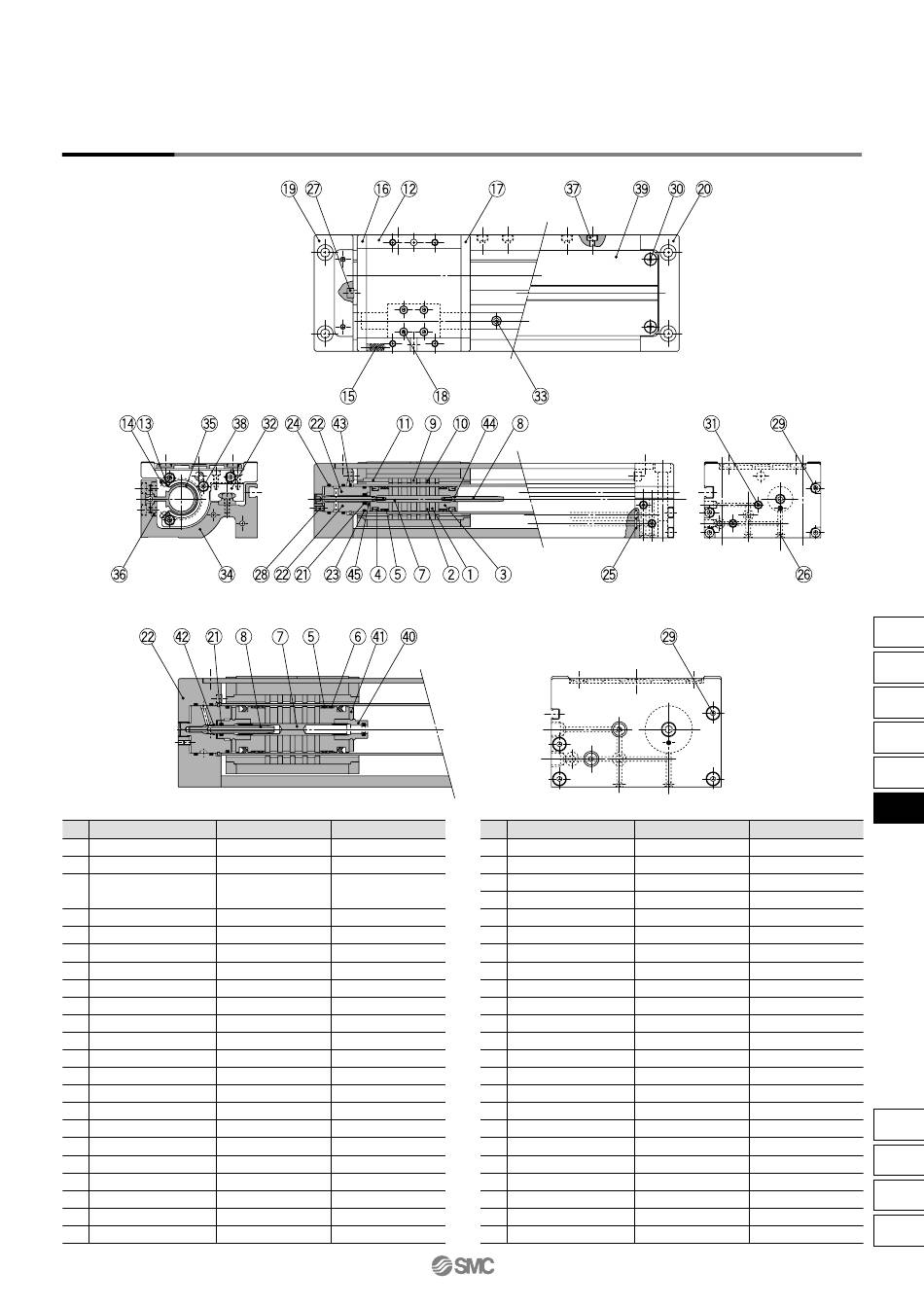

Construction
CYP15
CYP32
Component Parts
No. Description
1 Magnet A
2 Piston side yoke
Piston
3
4 Piston seal
5
Wear ring A
6
Wear ring
7 Shaft
8 Cushion ring
9 Magnet B
10 External slider side yoke
11 Hold spacer
12 Slide table
13 Insertion guide plate
14 Round head Phillips screw
15 Magnet
16
Side plate A
17 Side plate B
18 Hexagon socket head cap screw
19 Plate A
20 Plate B
21 Cushion seal
22 Inner cover
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Material Note
—
Rolled steel plate Zinc chromated
ø15: Electroless nickel
Brass/Aluminum alloy
plated, ø32: Chromated
NBR
Special resin
Special resin
Stainless steel
Stainless steel/Brass ø15: Electroless nickel plated
—
Rolled steel Electroless nickel plated
Aluminum alloy Electroless nickel plated
Aluminum alloy Electroless nickel plated
Stainless steel
Carbon steel Nickel plated
—
Aluminum alloy Electroless nickel plated
Aluminum alloy Electroless nickel plated
Chrome molybdenum steel Nickel plated
Aluminum alloy Clear hard anodized
Aluminum alloy Clear hard anodized
NBR
Aluminum alloy Clear hard anodized
Clean Rodless Cylinder
No. Description
23 Cylinder tube gasket
24 O-ring
25 O-ring
26 Steel ball
27 Bumper Polyurethane
28 Chrome molybdenum steel
Hexagon socket head set screw
29
Hexagon socket head cap screw Chrome molybdenum steel
30 Round head Phillips screw Stainless steel
31 Hexagon socket head plug Chrome molybdenum steel
32 Linear guide Stainless steel
33 Hexagon socket head cap screw Chrome molybdenum steel
34 Body Aluminum alloy
35 Cylinder tube Aluminum alloy
36 Tube attaching bracket Aluminum alloy
37 Hexagon socket head cap screw Chrome molybdenum steel
38 Hexagon socket head cap screw Chrome molybdenum steel
39
Top cover Aluminum alloy
40 Cushion seal holder Aluminum alloy
41 Bumper
42 O-ring
43 Type C retaining ring for axis Carbon tool steel
44 O-ring
45 Retaining plate Aluminum alloy
CYP
Series
Material Note
NBR
NBR
NBR
Carbon steel
Nickel plated
Nickel plated
Nickel plated
Nickel plated
Nickel plated
Clear hard anodized
Hard anodized
Clear hard anodized
Nickel plated
Nickel plated
Clear hard anodized
Chromated
Urethane CYP32 only
NBR
NBR
CYP15 only
