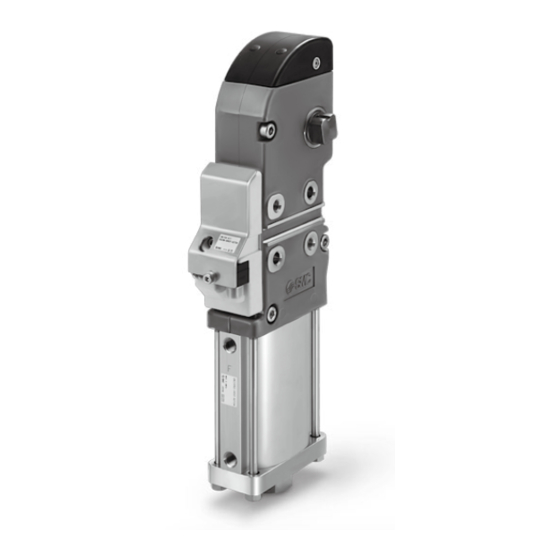

Power Clamp Cylinder
ø50, ø63
Simple switch adjustment greatly reduces work-hours.
Switch can be adjusted easily when changing the arm opening angle.
CKZ3T
Remove bolts to change the position
With metal switch cassette cover
¡Protects switch cassette from unexpected impact
Weight reduced by up to
¡ Aluminum body with greatly reduced weight
¡ Ideal for robot material handling
Bore size
CKZT
50
63
* Arm opening angle: 135°
High clamping force
(ø63, Arm length: 100 mm, 0.5 MPa)
Spatter proof construction
¡ Fully closed structure prevents intrusion of spatter
Select from two types of top cover
¡ Rubber cover: Rounded design reduces accumulation of welding spatter
Equivalent to UL94 standard V0: Flame resistant
¡Metal cover : Suitable for arc welding lines
: Protects the cylinder from unexpected external impact
CKZ3T-X2734
New
New
CKZ3T-X2734
Change switch position with one touch
CKZ3T-X2734
a
Reduction rate
3.1
5.0 kg
kg
a
4.3
7.1 kg
kg
a
4000
Switch on the unclamping side
39
%
38% reduced
39% reduced
N
INFORMATION
15-E654
Advertisement
Related Manuals for SMC Networks CKZ3T-X2734
Summary of Contents for SMC Networks CKZ3T-X2734

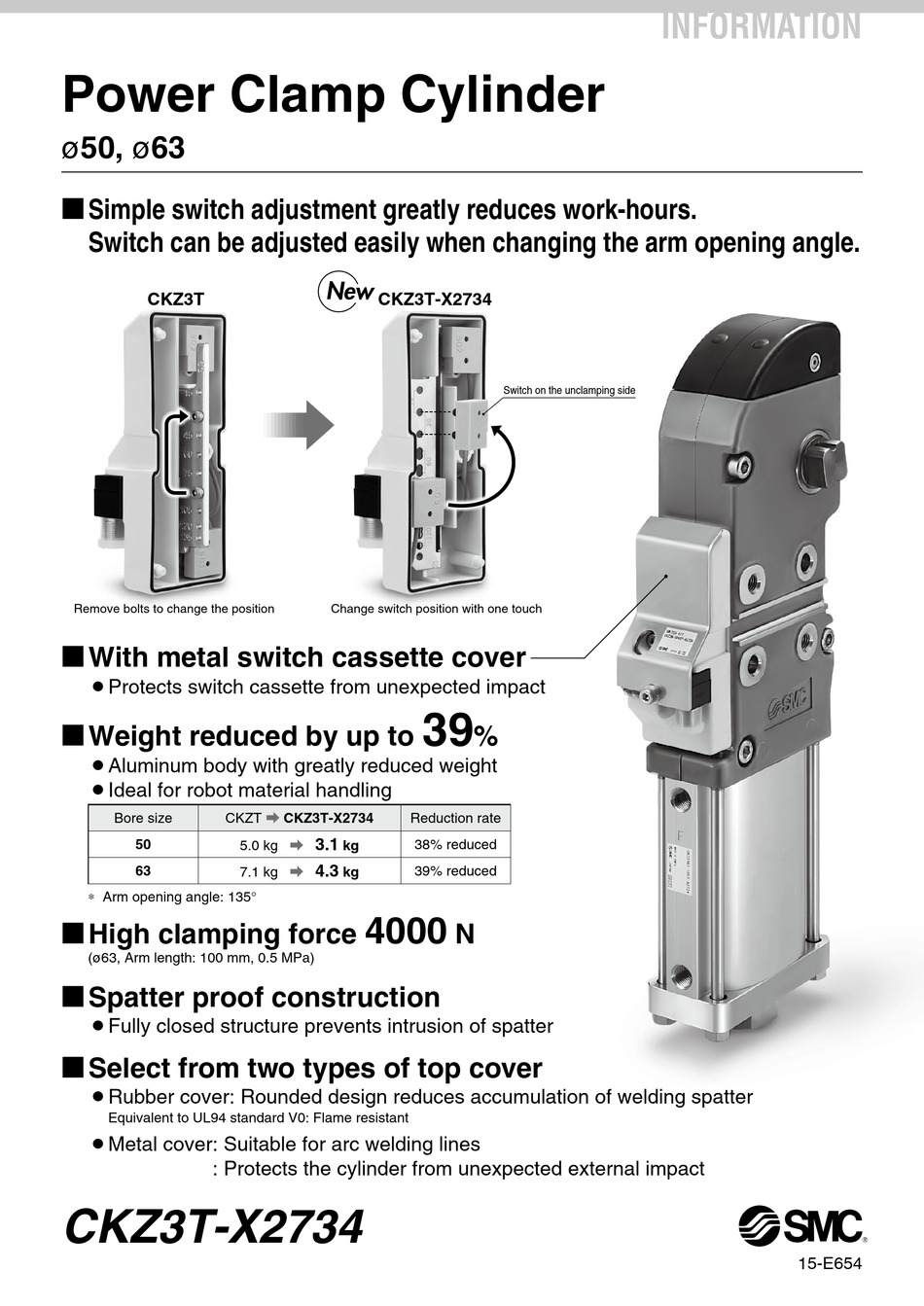

- Page 1 ø50, ø63 Simple switch adjustment greatly reduces work-hours. Switch can be adjusted easily when changing the arm opening angle. CKZ3T CKZ3T-X2734 Switch on the unclamping side Remove bolts to change the position Change switch position with one touch With metal switch cassette cover ¡Protects switch cassette from unexpected impact...
- Page 2 Power Clamp Cylinder CKZ3T-X2734 ø50, ø63 How to Order CKZ3T X2734 Cylinder (Without Arm) Bore size Top cover ø50 equivalent Rubber cover ø63 equivalent Metal cover Cylinder port Proximity switch TURCK P&F None Arm opening angle 15° 30° 45° 60°...
- Page 3 CKZ3T-X2734 Power Clamp Cylinder Cylinder Specifications Bore size Action Double acting Fluid Proof pressure 1.2 MPa Max. operating pressure 0.8 MPa Min. operating pressure 0.3 MPa Ambient and fluid temperature –10 to 60°C (No freezing) Clamping side: None Cushion Unclamping side: Rubber bumper Operating time Clamping: 1 sec.
- Page 4 CKZ3T-X2734 Replacement Parts Top cover kits Switch kits Stopper bolt kits Switch kit no. (With metal switch cassette cover) Top cover kit no. Rubber cover CKZ3N X2734 CKZ2N Bore size Proximity switch Bore size ø50 equivalent TURCK ø50 equivalent ø63 equivalent P&F...
- Page 5 CKZ3T-X2734 Power Clamp Cylinder Dimensions Metal cover type Metal cover Lock release point Metal cover open Rubber cover type Lock release point Rubber cover Pivot point with square flats ±0.05 ±0.02 ±0.05 2 x ø H7 Depth ±0.02 Depth 2 x 2 x ø...
- Page 6 CKZ3T-X2734 Dimensions (Clamp Arm: Offset 15 mm) Bore size: Weight [kg] Left side CKZT50-A015CS CKZT50-A015CB CKZT50-A015RS CKZT50-A015RB CKZT50-A015LS CKZT50-A015LB Center Right side 2 x øD H7 through 2 x øD through ±0.2 ±0.1 ±0.02 Bore size: Weight [kg] Left side...
- Page 7 CKZ3T-X2734 Power Clamp Cylinder Dimensions (Clamp Arm: Offset 45 mm) Bore size: Weight [kg] Left side CKZT50-A045CS CKZT50-A045CB CKZT50-A045RS CKZT50-A045RB CKZT50-A045LS CKZT50-A045LB Center Right side 2 x øD H7 through 2 x øD through ±0.2 ±0.1 ±0.02 Bore size: Weight...
-
Page 8: Model Selection
CKZ3T-X2734 Model Selection Relation between arm length and clamping force Arm length Clamp arm Shim Clamping block Fulcrum Extension arm Load cell Bore size: Bore size: 12000 10000 10000 8000 8000 6000 6000 0.8 MPa 0.8 MPa 4000 0.5 MPa 0.5 MPa... - Page 9 CKZ3T-X2734 Model Selection Allowable arm length/Allowable offset Allowable arm length Allowable offset Arm length Offset Clamp arm Shim Clamping block Clamp arm Extension arm Fulcrum Extension arm Clamping position Clamping position [mm] [mm] * The clamping force does not change within the allowable...
-
Page 10: Setup Procedure
CKZ3T-X2734 Setup Procedure Precaution 1) The tightening torque of the clamp arm is ø50: 12 to 15 N·m, and ø63: 15 to 20 N·m. Refer to pages 5 and 6 for details on the clamp arm. 2) This product is designed to be used after being externally adjusted +0.5°... - Page 11 CKZ3T-X2734 Setup Procedure Power clamp cylinder mounting and setup procedure <Ex. 2 When using a hard stop: When not equipped with a workpiece receptacle> Cylinder Clamp arm Shim q Upper hard stop Unclamping port Shim w Clamping port Arm side block Hard stop ...
- Page 12 CKZ3T-X2734 Power clamp cylinder mounting and setup procedure Relation between shim thickness and clamping force * Use this figure as a guide, as there is a tolerance of about 10% in the clamp cylinder body. * When a shim exceeding the clamping force peak position on the graph is inserted, the lock will not be activated when clamped.
- Page 13 CKZ3T-X2734 Setup Procedure Arm opening angle change Caution Be sure to confirm safety, and perform the work while the air is exhausted. z Stopper bolt position change procedure 1) Remove the stopper bolt of the head cover, and replace with a stopper bolt for the desired angle using the tightening torque below.
-
Page 14: Specific Product Precautions
CKZ3T-X2734 Specific Product Precautions Be sure to read this before handling the products. For safety instructions and actuator precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: http://www.smcworld.com Caution Caution 1. Manual lock release 2. - Page 15 Safety Instructions Be sure to read the “Handling Precautions for SMC Products” (M-E03-3) and “Operation Manual” before use.
