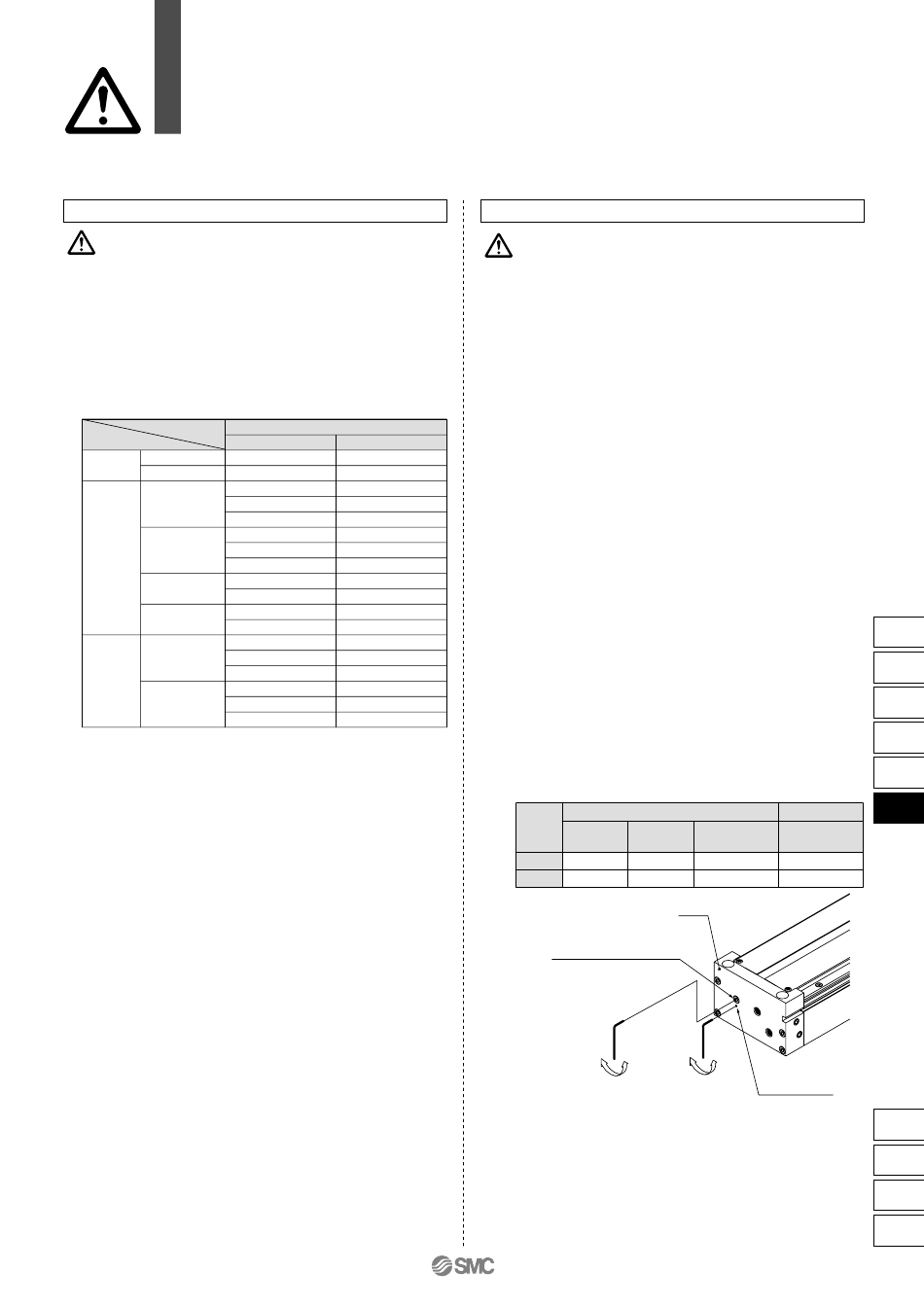

Speed Adjustment

Caution
1. A throttle valve for clean room use is recommended
for speed adjustment.
regarding equipment and methods to be used.)
Speed adjustment can also be performed with a meter-in or
meter-out type speed controller for clean room use, but it may
not be possible to obtain smooth starting and stopping
operation.
Throttle Valves and Dual Speed Controllers for Recommended
Speed Adjustment of CYP Cylinders
Throttle valve
Elbow type
Metal body
piping type
In-line type
Elbow type
(throttle valve)
Resin body
Universal type
with
(throttle valve)
One-touch
fitting
In-line type
(throttle valve)
Dual type
(speed controller)
Elbow type/Brass
(throttle valve)
With clean
One-touch
Elbow type/
fitting
Stainless steel 304
(throttle valve)
Note 1) Refer to Back Page 10 (How to Use Clean Series) for the selection of the
metal body piping type and the cylinders with a resin-body one-touch
fitting.
Note 2) Refer to the Pneumatic Clean Series (fittings for air line equipment) for
the fittings used for the metal body piping type.
2. In the case of vertical mounting, a system with a
reduced pressure supply circuit installed on the
down side is recommended. (This is effective
against upward starting delays and for conservation
of air.)
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
CYP
Series
Specific Product Precautions 2
Be sure to read before handing.
Refer to front matters 54 and 55 for Safety Instructions and pages 3 to 11 for Actuator
and Auto Switch Precautions.
(Please consult with SMC
Model
Series
CYP15
10-AS1200-M5-X216 10-AS2200-01-X214
10-AS2000-01-X209
10-AS1000-M5-X214
10-AS2201F-01-04-X214
10-AS1201F-M5-04-X214
10-AS1201F-M5-06-X214 10-AS2201F-01-06-X214
10-AS2201F-01-08-X214
10-AS1301F-M5-04-X214 10-AS2301F-01-04-X214
10-AS2301F-01-06-X214
10-AS1301F-M5-06-X214
10-AS2301F-01-08-X214
10-AS2001F-04-X214
10-AS1001F-04-X214
10-AS1001F-06-X214 10-AS2001F-06-X214
10-ASD230F-M5-04 10-ASD330F-01-06
10-ASD230F-M5-06 10-ASD330F-01-08
AS2201FPQ-01-04-X214
AS1201FPQ-M5-04-X214
AS2201FPQ-01-06-X214
AS1201FPQ-M5-06-X214
— AS2201FPQ-01-08-X214
AS1201FPG-M5-04-X214 AS2201FPG-01-04-X214
AS1201FPG-M5-06-X214 AS2201FPG-01-06-X214
— AS2201FPG-01-08-X214
Cushion Effect (Sine Cushion) and Stroke Adjustment
Caution
1. A sine cushion (smooth start, soft stop) function is
included in the standard specifications.
Due to the nature of a sine cushion, adjustment of the cushion
effect is not possible. There is no cushion needle adjustment
as in the case of conventional cushion mechanisms.
2. The stroke end adjustment is a mechanism to adapt
the slide table's stroke end position to a mechanical
stopper on other equipment, etc.
(Adjustment range: Total of both sides ±2 mm) To
ensure safety, perform adjustment after shutting off
CYP32
the drive air, releasing the residual pressure and
implementing drop prevention measures, etc.
1) Loosen the inner cover holding screw with a hexagon
wrench. (When adjusting strokes, be sure to adjust after
loosening set screws. If rotating stroke adjustment screws
without loosening them, hexagon holes for adjustment
screws may deform and stroke adjustment cannot be
performed.)
2) To match the position with a mechanical stopper on other
equipment, etc., rotate the stroke adjustment screws of the
inner cover with a hexagon wrench and move the inner
cover back and forth in the axial direction. Approximately 1
mm of adjustment is possible with one rotation. (Stroke
adjustment screw rotational direction: Left rotation →
+stroke, Right rotation → –stroke)
3) The maximum adjustment on one side is ±1 mm. A total
adjustment of approximately ±2 mm is possible using both
sides.
4) After adjusting the set stroke, tighten the inner cover holding
screw with a hexagon wrench.
Inner Cover Holding Screw Tightening Torque [N·m]
and Hexagon Wrench
Model
CYP15
CYP32
direction
Inner cover holding screw
Tightening Hexagon wrench
Screw size
torque (Nominal size)
M3 x 0.5 0.3
M6 x 1 2.45
Plate
Stroke adjustment screw
(inner cover)
Hexagon
Hexagon
wrench
wrench
– +
direction
CY3B
CY3R
CY1S
CY1L
CY1H
CY1F
CYP
Stroke adjustment screw
Hexagon wrench
(Nominal size)
1.5 2.5
3 4
