Step 1. Install the Inside Antenna

Inside antennas come in omni-directional (dome) and flat panel versions.

Required Between

Outside and Inside Antenna

Note:

As you can see from the table above, acquiring the recommended inside and outside antenna separation optimizes coverage significantly.

Any reduced antenna separation reduces the booster's coverage.

1. If your indoor antenna is a dome type, mount it on the ceiling in a central location.

2. If your indoor antenna is a flat panel, install it against a wall or surface projecting the

area where you want reception. Point the antenna away from the outside antenna.

To avoid interference stay a minimum distance of 3 feet from the panel antenna.

Force5 Industrial

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com

Installing Your Hardware

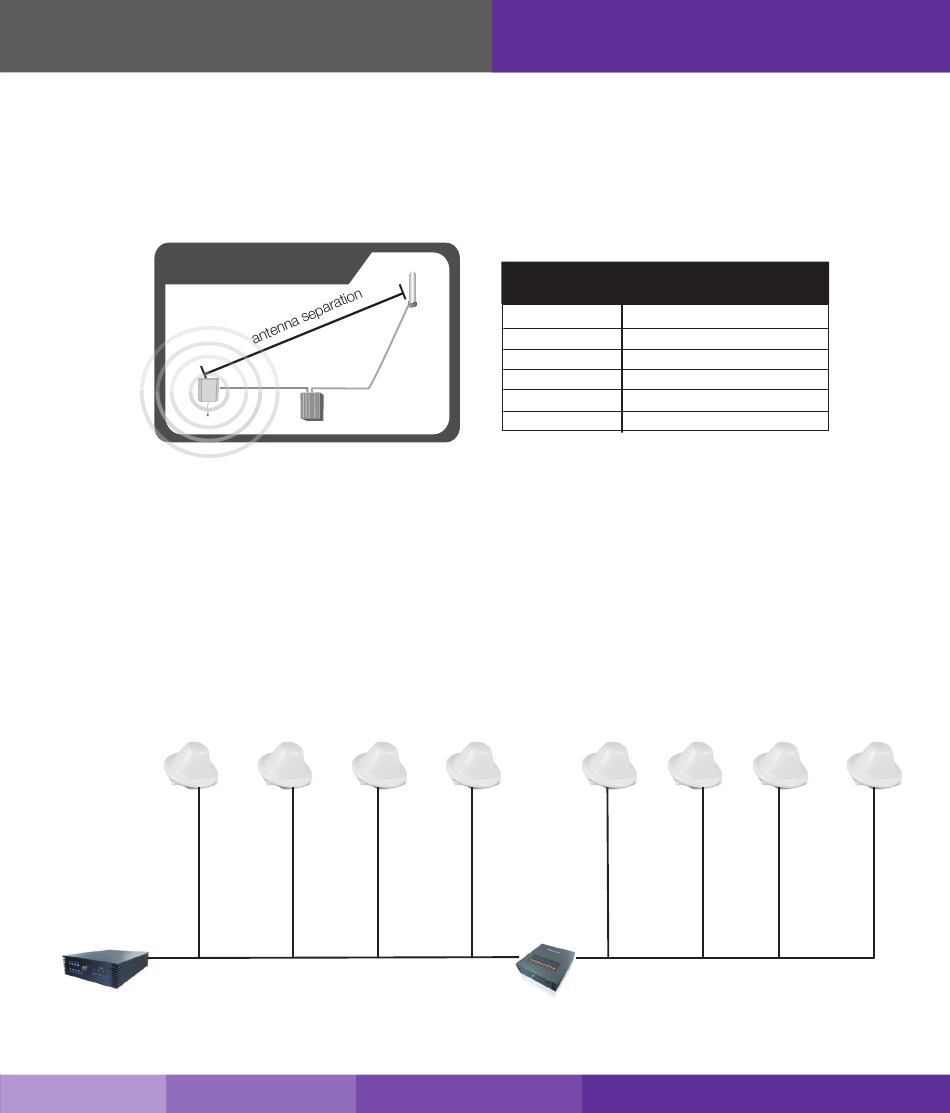

Antenna Separation Table

Amplifier gain

Min. separation (ad)

40dB

5-6'

45dB

15-20'

50dB

50'

55dB

60'

65dB

75-80'

72dB

100'-110'
