SureCall Fusion4Home Max Quick Start Manual

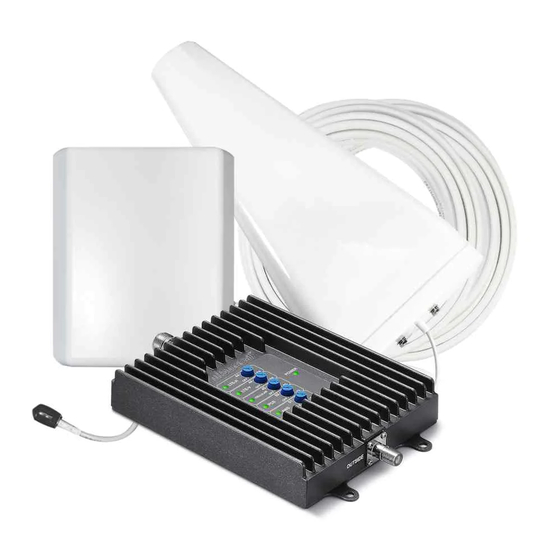

Cellular signal booster kit for the home or office
Hide thumbs
Also See for Fusion4Home Max:
- User manual (20 pages) ,
- Quick install manual (2 pages) ,
- User manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for SureCall Fusion4Home Max
Summary of Contents for SureCall Fusion4Home Max
- Page 1 Fusion4Home Max Cellular signal booster kit for the Home or Office User Guide 07.14.2021...
- Page 2 Thank you for purchasing SureCall’s Fusion4Home Max cellular signal booster kit. SureCall’s Fusion4Home Max was specifically designed to eliminate frustrations over dropped calls and limited range by amplifying incoming and outgoing cellular signals in homes and offices. If you have any questions during setup, please reach out to our US-based experienced support technicians: Call: 1-888-365-6283 Email: support@surecall.com...
-
Page 3: Table Of Contents
IF YOU WANT TO IMPROVE PERFORMANCE .................11 Antenna Isolation ..........................11 TROUBLESHOOTING ........................12 LED INDICATORS ..........................13 SPECIFICATIONS ..........................14 Kitting .............................. 14 CONSUMER GUIDELINES ........................ 16 WARRANTY ............................17 Three-Year Product Warranty ......................17 SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 4: How It Works
Using low-loss RG-6 cable, signal is transmitted from the outside to the inside Fusion4Home Max inside host amplifier. The signal is then broadcast from the inside panel antenna to all cellular devices in range. The Fusion4Home Max system also works in reverse, boosting the outgoing signal and to faraway and hard-to-reach towers. Outside... - Page 5 5. Yagi antenna 6. Outside cable (75 ft) With mounting bracket With mounting bracket Warning: Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com...
-
Page 6: Before Installation
The best way to confirm signal coverage is the ability to place and hold a call. More detailed measurements can be taken by reading your phone’s signal in decibels(dB). Decibels are measured in the Signal Strength Poor Good Excellent SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 7: Step 2. Install The Outside Yagi Antenna And Outside Amplifier
14 and later: Navigate to LTE in the menu list then tap on Serving Cell Meas. The measurements that read “rsrp0” and “rspr1” are your cellular signal strength in decibel-milliwatts. • If you’re using an earlier version of iOS, we have more information available here: https://blog.surecall.com/enter- field-test-mode-on-iphone-or-android-phones/ •... - Page 8 Connect the yagi cable connector to the outside amplifier as shown here, Outside system assembly Outside system assembled IMPORTANT: Take caution during installation to not aim these antenna towards the other antenna Aiming Directional Antennas SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com...
-
Page 9: Step 3. Install The Inside Amp And Inside Antenna
Note: This booster should not be used near open fire or flame. Storage and transportation: Store and place in non-extreme room-temperature and dry environment. Panel Antenna SureCall’s Inside panel antennas are directional with a 120˚ reach. They should be mounted facing the area signal is needed and away from the outdoor antenna (See “Aiming Directional Antennas” on page 8). -
Page 10: Step 4: Connect To Power And Turn On
Note: This booster is rated for 5-15V input voltage. DO NOT use the booster with a higher voltage power supply. This can damage the booster, cause personal injury, and void your warranty. N connector to inside antenna Power Switch Connector to Inside Antenna Power Jack Screw tab holes for optional wall mounting F connector to outside antenna Booster Diagram SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 11: Check And Optimize System, If Needed
WARNING: Do not attenuate the uplink and downlink dB settings below 35dB. This could cause the affected frequency band to turn off. IF YOU WANT TO IMPROVE PERFORMANCE Antenna Isolation The Fusion4Home Max automatically reduces gain (coverage performance) because of insufficient RF Separation between the inside and outside antennas. Review strategies to improve RF isolation between the inside and outside antennas. -
Page 12: Troubleshooting
Verify that the power source is not controlled by a switch that has removed power from the outlet. If it remains OFF, contact tech support at: 1-888-365-6283 or support@surecall.com After completing Verify that cable connections are tightly fitted to the booster and antenna. -
Page 13: Led Indicators
Keep in mind, identifying the setup that yields the best possible results for your environment will come from testing -- balancing the elimination of interference and while also receiving the best possible signal. SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 14: Specifications
Warning: Any product modifications that use unauthorized antennas, cables, and/or coupling devices are prohibited by the FCC. Contact FCC for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. Note: The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. -
Page 15: Kitting
15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Configuration 1: SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 16: Consumer Guidelines
Une telle réduction doit porter sur la puissance d’entrée ou sur le gain, et ne doit pas se faire au moyen d’un atténuateur raccordé à la sortie du dispositif. 1 For details on the requirements specified in ISED CPC-2-1-05, visit: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html 2 Pour plus de détails sur les exigences ISED CPC-2-1-05, reportez-vous au site: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 17: Warranty
As a condition to the warranties provided for herein, the Buyer will prepay the shipping charges for all products returned to SureCall for repair, and SureCall will pay the return shipping with the exception of products returned from outside the United States, in which case the Buyer will pay the shipping charges. - Page 18 SureCall, Inc 48346 Milmont Drive Fremont, California 94538, USA 888.365.6283 | www.surecall.com...
