System administration

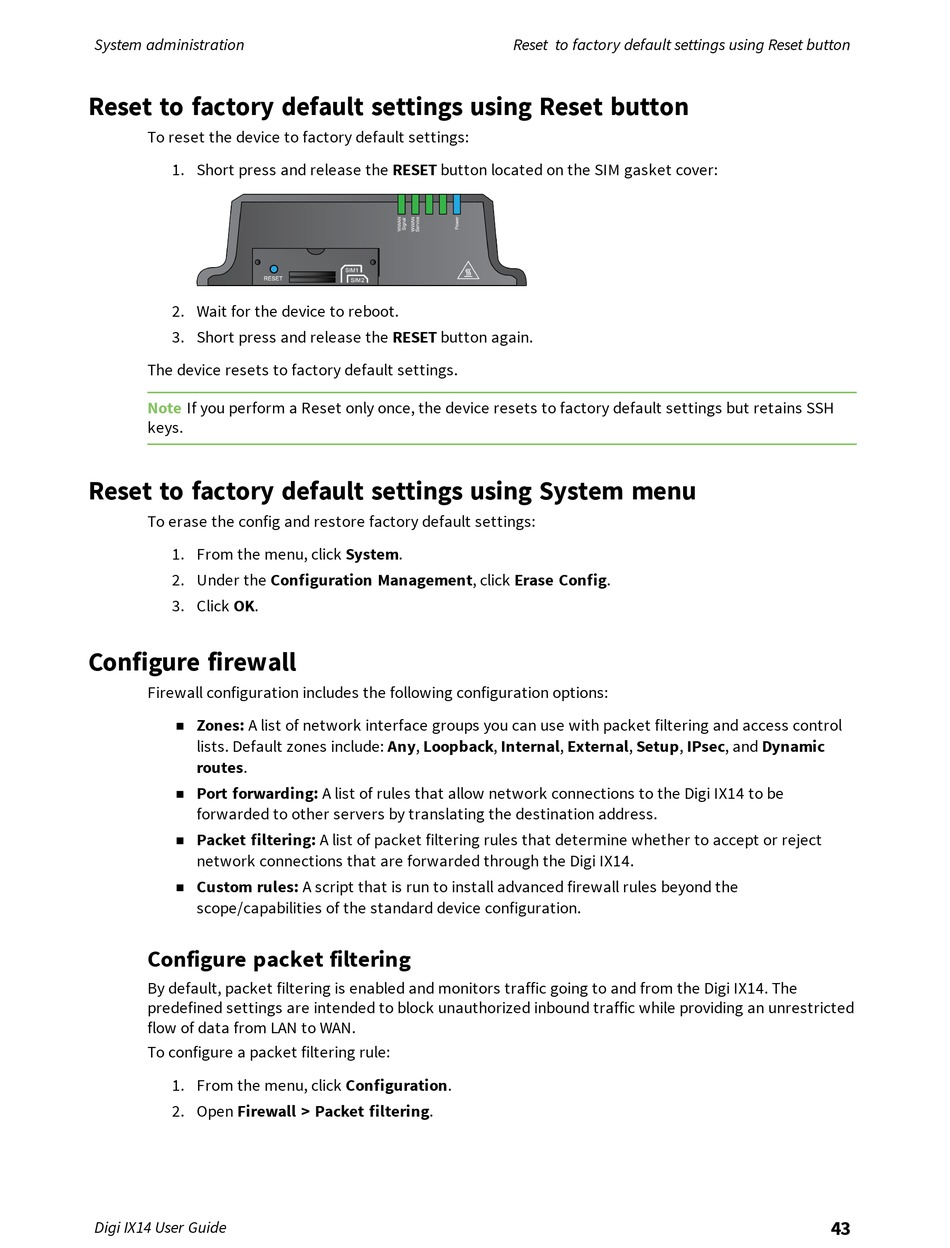

Reset to factory default settings using Reset button

To reset the device to factory default settings:
1. Short press and release the RESET button located on the SIM gasket cover:
2. Wait for the device to reboot.
3. Short press and release the RESET button again.
The device resets to factory default settings.
Note If you perform a Reset only once, the device resets to factory default settings but retains SSH
keys.

Reset to factory default settings using System menu

To erase the config and restore factory default settings:
1. From the menu, click System.
2. Under the Configuration Management, click Erase Config.
3. Click OK.

Configure firewall

Firewall configuration includes the following configuration options:
Zones: A list of network interface groups you can use with packet filtering and access control
n
lists. Default zones include: Any, Loopback, Internal, External, Setup, IPsec, and Dynamic
routes.
Port forwarding: A list of rules that allow network connections to the Digi IX14 to be
n
forwarded to other servers by translating the destination address.
Packet filtering: A list of packet filtering rules that determine whether to accept or reject
n
network connections that are forwarded through the Digi IX14.
Custom rules: A script that is run to install advanced firewall rules beyond the
n
scope/capabilities of the standard device configuration.

Configure packet filtering

By default, packet filtering is enabled and monitors traffic going to and from the Digi IX14. The
predefined settings are intended to block unauthorized inbound traffic while providing an unrestricted
flow of data from LAN to WAN.
To configure a packet filtering rule:
1. From the menu, click Configuration.
2. Open Firewall > Packet filtering.
