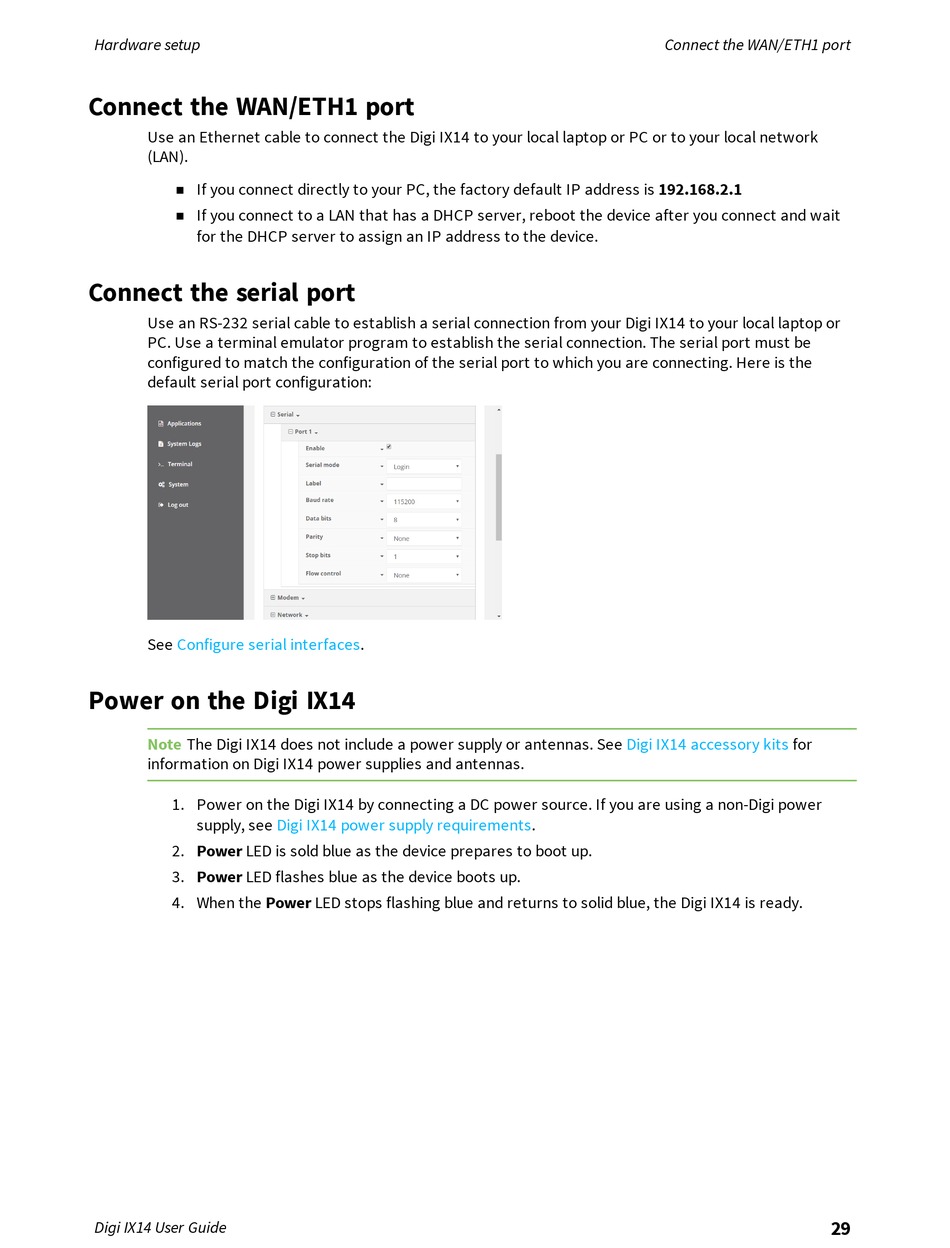

Hardware setup

Connect the WAN/ETH1 port

Use an Ethernet cable to connect the Digi IX14 to your local laptop or PC or to your local network
(LAN).
If you connect directly to your PC, the factory default IP address is 192.168.2.1
n
If you connect to a LAN that has a DHCP server, reboot the device after you connect and wait
n
for the DHCP server to assign an IP address to the device.

Connect the serial port

Use an RS-232 serial cable to establish a serial connection from your Digi IX14 to your local laptop or
PC. Use a terminal emulator program to establish the serial connection. The serial port must be
configured to match the configuration of the serial port to which you are connecting. Here is the
default serial port configuration:
See Configure serial

Power on the Digi IX14

Note The Digi IX14 does not include a power supply or antennas. See
information on Digi IX14 power supplies and antennas.
1. Power on the Digi IX14 by connecting a DC power source. If you are using a non-Digi power
supply, see
2. Power LED is sold blue as the device prepares to boot up.
3. Power LED flashes blue as the device boots up.
4. When the Power LED stops flashing blue and returns to solid blue, the Digi IX14 is ready.
Digi IX14 User Guide
interfaces.
Digi IX14 power supply requirements.
Connect the WAN/ETH1 port
Digi IX14 accessory kits for
29
