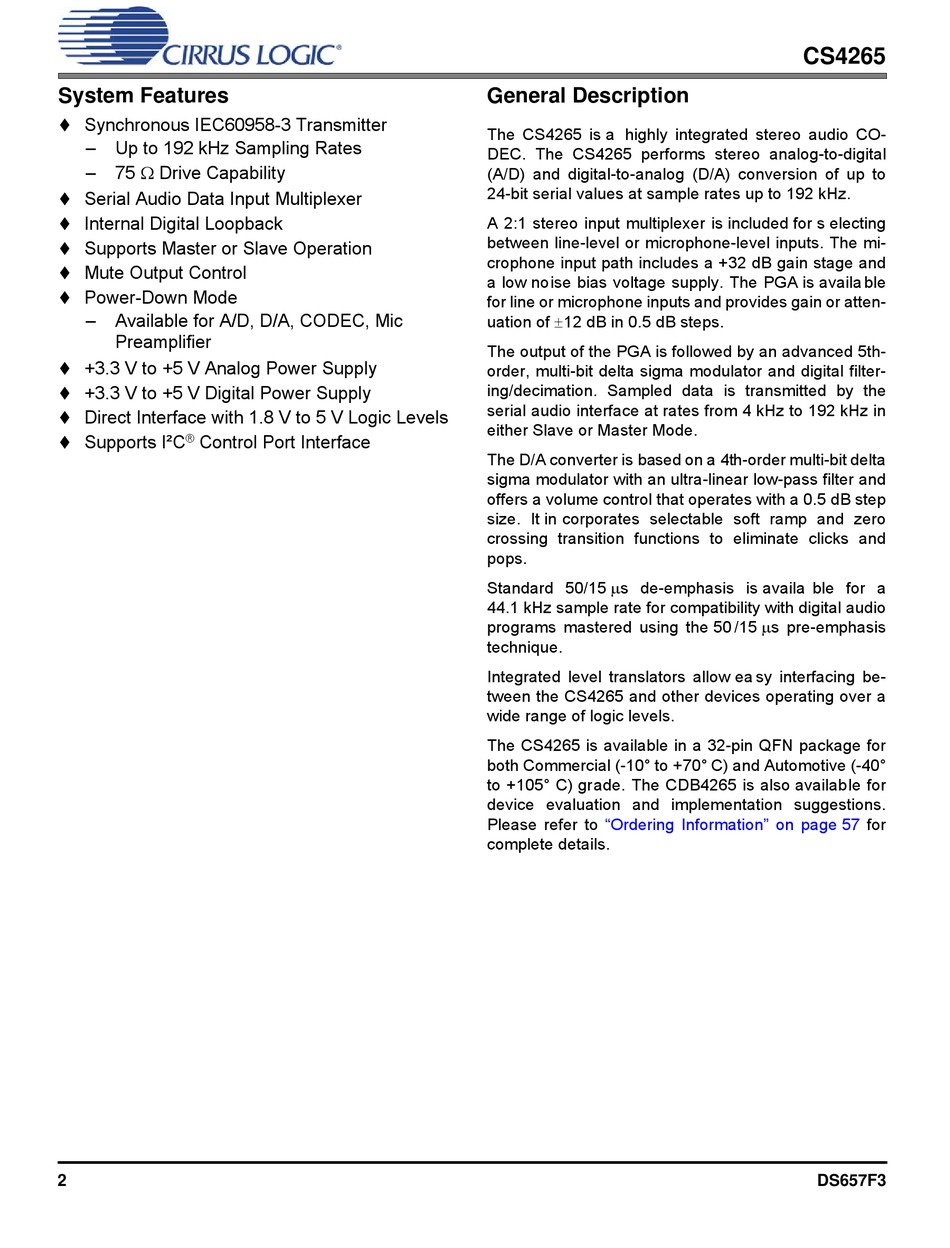

Cirrus Logic CS4265 Manual page 2

System Features
Synchronous IEC60958-3 Transmitter

– Up to 192 kHz Sampling Rates
– 75  Drive Capability
Serial Audio Data Input Multiplexer

Internal Digital Loopback

Supports Master or Slave Operation

Mute Output Control

Power-Down Mode

– Available for A/D, D/A, CODEC, Mic
Preamplifier
+3.3 V to +5 V Analog Power Supply

+3.3 V to +5 V Digital Power Supply

Direct Interface with 1.8 V to 5 V Logic Levels

Supports I²C Control Port Interface
®

2
General Description
The CS4265 is a highly integrated stereo audio CO-
DEC. The CS4265 performs stereo analog-to-digital
(A/D) and digital-to-analog (D/A) conversion of up to
24-bit serial values at sample rates up to 192 kHz.
A 2:1 stereo input multiplexer is included for s electing
between line-level or microphone-level inputs. The mi-
crophone input path includes a +32 dB gain stage and
a low noise bias voltage supply. The PGA is availa ble
for line or microphone inputs and provides gain or atten-
uation of 12 dB in 0.5 dB steps.
The output of the PGA is followed by an advanced 5th-
order, multi-bit delta sigma modulator and digital filter-
ing/decimation. Sampled data is transmitted by the
serial audio interface at rates from 4 kHz to 192 kHz in
either Slave or Master Mode.
The D/A converter is based on a 4th-order multi-bit delta
sigma modulator with an ultra-linear low-pass filter and
offers a volume control that operates with a 0.5 dB step
size. It in corporates selectable soft ramp and zero
crossing transition functions to eliminate clicks and
pops.
Standard 50/15 s de-emphasis is availa ble for a
44.1 kHz sample rate for compatibility with digital audio
programs mastered using the 50 /15 s pre-emphasis
technique.
Integrated level translators allow ea sy interfacing be-
tween the CS4265 and other devices operating over a
wide range of logic levels.
The CS4265 is available in a 32-pin QFN package for
both Commercial (-10° to +70° C) and Automotive (-40°
to +105° C) grade. The CDB4265 is also available for
device evaluation and implementation suggestions.
Please refer to "Ordering Information" on page 57
complete details.
