S P E C I F I C AT I O N S C O N T I N U E D

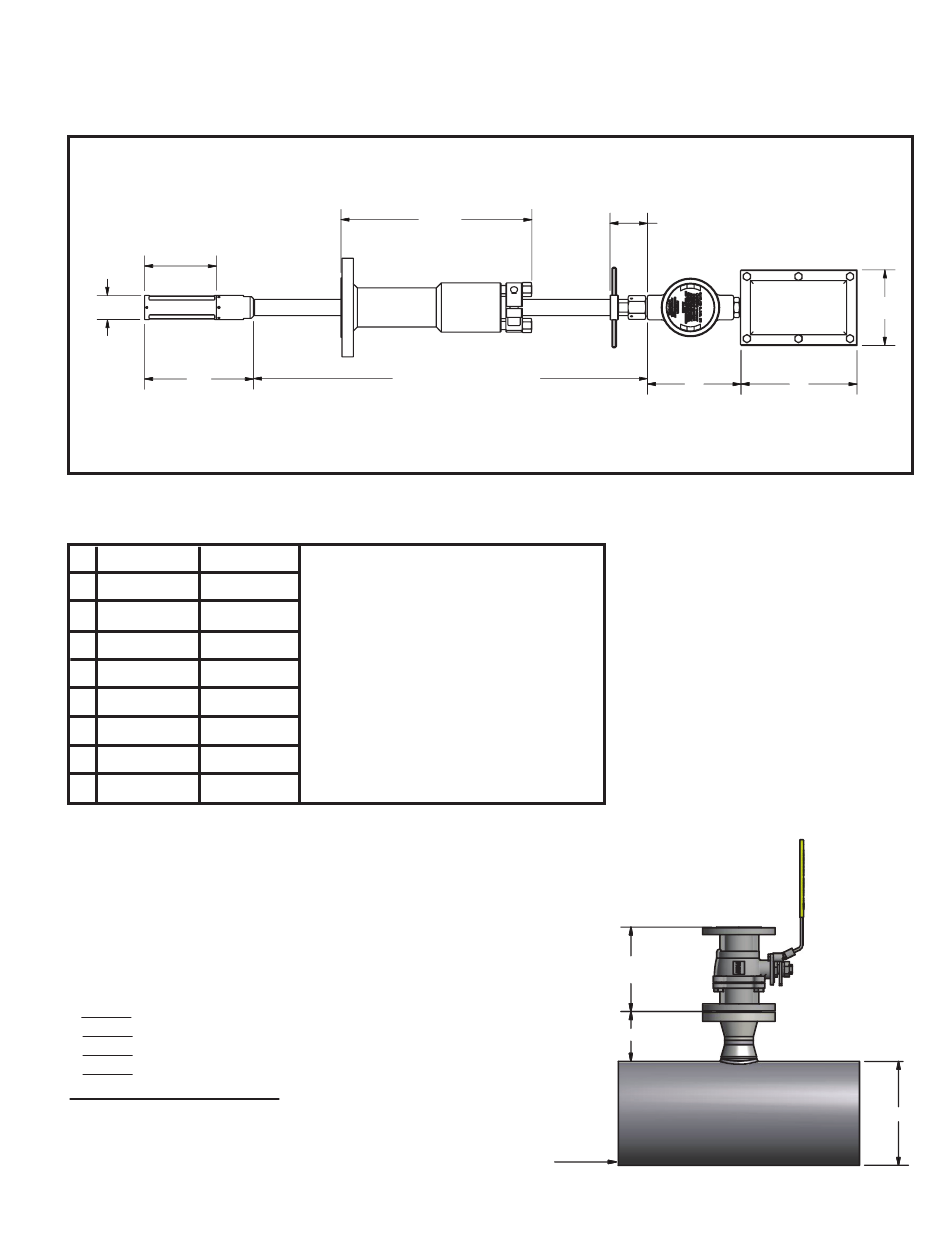

DIMENSIONAL DRAWINGS 0-20% MODELS
FIG. 2-3 INSERTABLE OWD
B
A
C
TABLE 2-4 DIMENSIONS INSERTABLE OWD
INCHES MM
A
1.48 38
B
4.4 112
C
6.62 168
D
max 13 330
E 2.3 58
F 5.7 145
G 7 178
H
4.6 117
*Seal housing dimensions vary according to flange size and pressure rating. 13" is the maximum length
required in calculating shaft length.
CALCULATING SHAFT LENGTH 0-20% MODELS
Determine minimum shaft length for proper insertion in the pipeline.
Off-the-shelf lengths are 12", 24", and 36".
D1
+ Valve Length:
+ Pipe OD x .5:
+ Seal housing length
13"
– 2" Probe factor
= Total / minimum shaft length for proper
insertion distance
OWDMANUAL 1114
SENSOR 0–20%
®
D
Custom Shaft
Lengths
SENSOR 0-20%
®
Shaft Lengths are available in .5"
(12.7mm) increments.
Standard sizes are 24", 30", 36", 48",
and 60" (609.6mm, 762mm, 914.4mm,
1219mm, 1524mm).
E
Valve
Length
D1
Main Pipe
6
G
F
Electronics
Enclosure
KAM CONTROLS, INC.
H
Pipe OD
