M A I N T E N A N C E C O N T I N U E D

ANTENNA REPLACEMENT

TOOLS REQUIRED
1. Phillips Screwdriver Size 0
2. 1/16" Allen Wrench
3. 5/64" Allen Wrench
4. 5/16" Allen Wrench
MATERIALS REQUIRED
1. Stainless Antenna
2. Titanium Antenna
3. (2) 2-004 O-rings
4. (2) 2-009 O-rings
5. Medium Strength Loctite
DISASSEMBLY
1. Remove all (6) 8-32 Set Screws using the 5/64" Allen Wrench. Make sure that the wrench in fully inserted or the
Set Screws will strip. FIG. 5-1

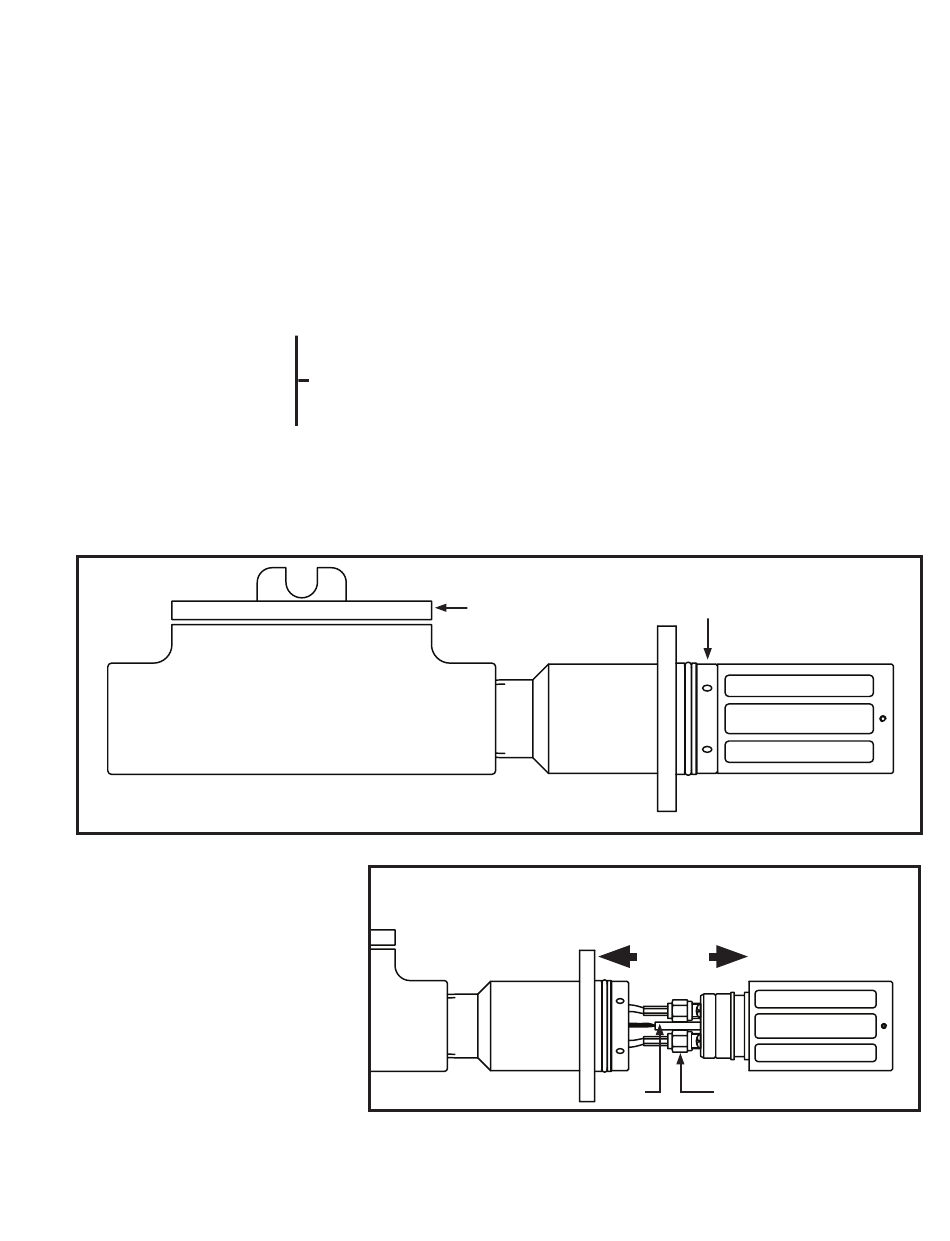

FIG. 5-1
Unscrew lid to round junction
2.
box (FIG. 5-1) and ensure that
cables are somewhat slack. If
not, untie/loosen the cables prior
to pulling probe away from hous-
ing.
3. Slowly pull Probe away from
Housing to gain access to the
SMA connectors. Do not pull too
hard or too far as the wires can
be damaged. FIG. 5-2
OWDMANUAL 1114
Contact KAM CONTROLS
at +1 713 784 0000,
Fax to +1 713 784 0001,
or email Sales@Kam.com.
Ask for Part Number: OWD ANT
Junction Box Lid
FIG. 5-2
29
8-32 Set Screws
RTD SMA Connectors
