M A I N T E N A N C E C O N T I N U E D
REASSEMBLY
Install the new 2-009 O-rings on the Seal Holder. FIG. 5-8A
1.
2. Screw the new Antennas into the Seal Holder. The Antennas need to extend .175–.180" from the top of
the Seal Holder. FIG. 5-8A
3. Slide the new 2-004 O-rings on the Antennas. FIG. 5-8B
4. Slide Seal Holder Covers behind the 2-004 O-rings. Make sure the use the Seal Holder Cover with the
larger center hole with the Coated Antenna. FIG. 5-8B
5. Add a small amount of grease to the 2-004 O-rings.
Push the 2-004 O-rings inside the Seal Holder using the Seal Holder Covers. FIG. 5-8C
6.

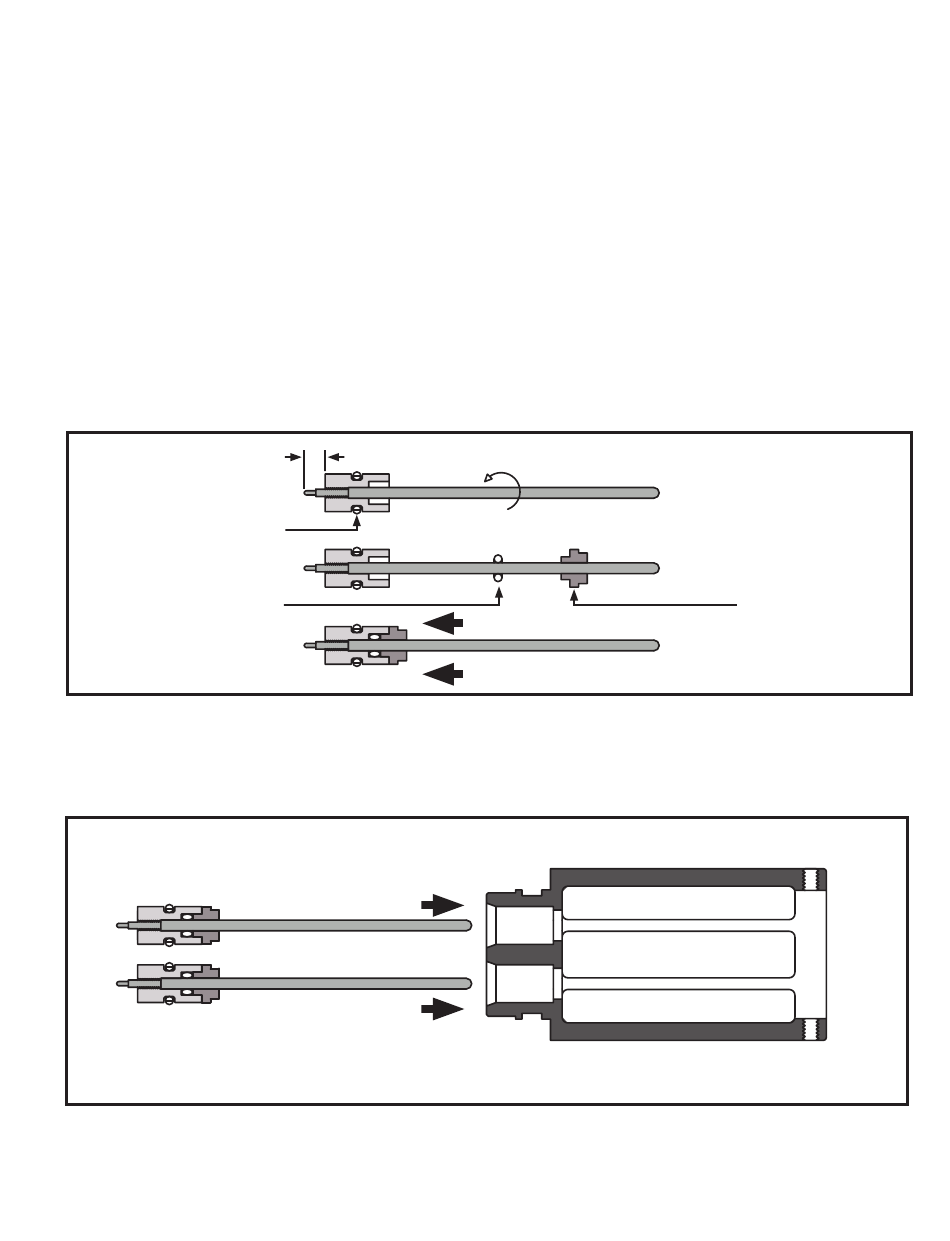

FIG. 5-8
.175–.180"
2-009 O-ring
2-004 O-ring
7. Add a small amount of grease to the 2-009 O-rings.
8. Insert Seal Holder/Antenna assembly into the Sensor Body. FIG. 5-9
FIG. 5-9
OWDMANUAL 1114
32
A.
B.
Seal Holder Cover
C.
