KAM Simple Precision OWD User Manual page 31

M A I N T E N A N C E C O N T I N U E D
4. Make a note of which color cable goes to which antenna. For example: Red cable goes to green antenna.
5. Loosen and unscrew completely the SMA Connectors using the 5/16" Allen Wrench.
6. Pull to remove the RTD. DO NOT pull from the wires. FIG. 5-2

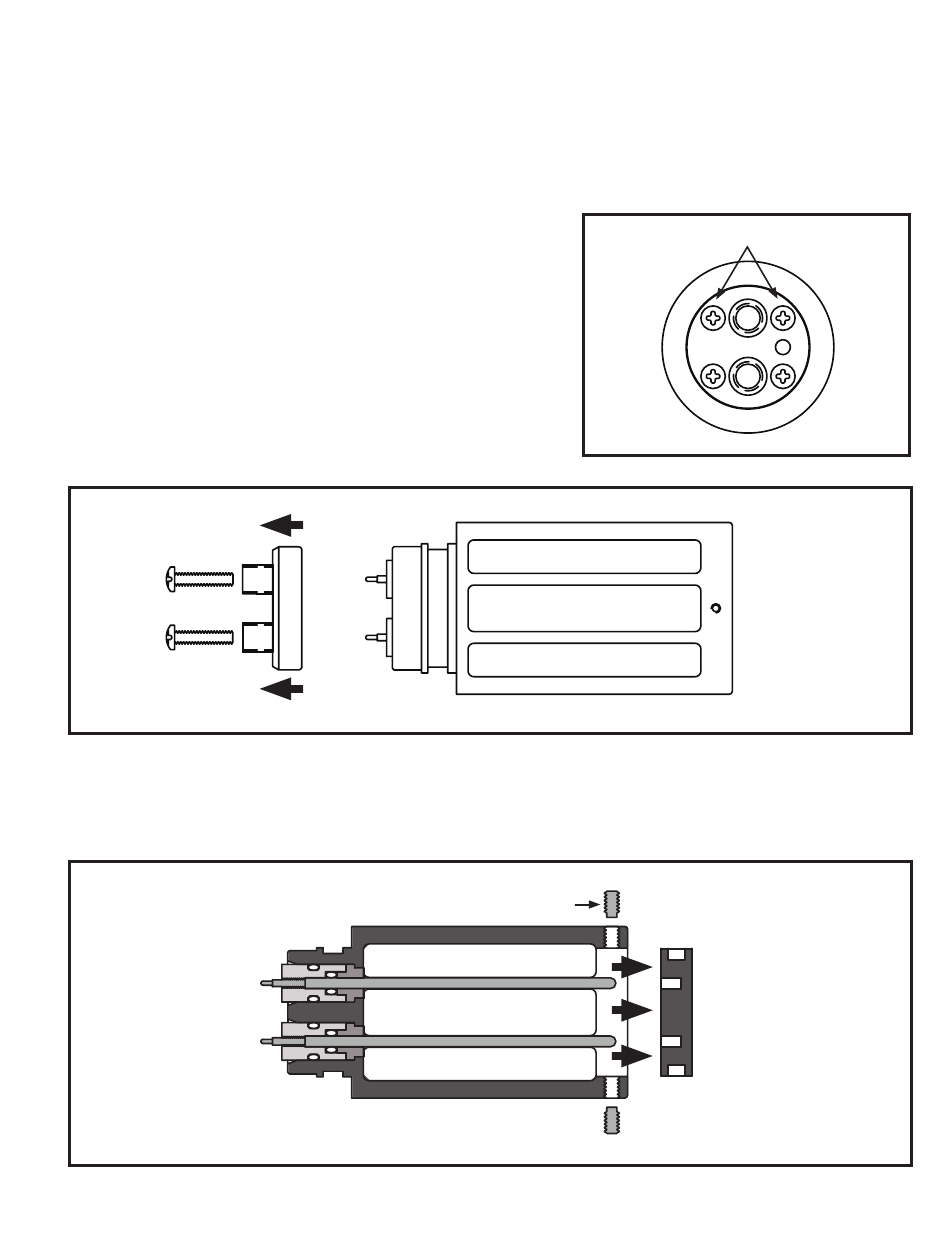

7. Unscrew the (4) 4-40 Screws on the top of the sensor using
the Phillips Screwdriver Size 0. FIG. 5-3
8. Remove the Cover from the Sensor. FIG. 5-4
FIG. 5-4
Remove the (4) Set Screws at the bottom of the Sensor using the 1/16" Allen Wrench. Be sure to insert wrench
9.
fully or screws will strip. FIG. 5-5
Push the Bottom Cover from the inside of the Sensor until it is completely free. FIG. 5-5
10.
FIG. 5-5
OWDMANUAL 1114
FIG. 5-3
6-32 x ¼" Set Screw
30
4-40 Screws
