KAM Simple Precision OWD User Manual page 20

I N S TA L L AT I O N C O N T I N U E D

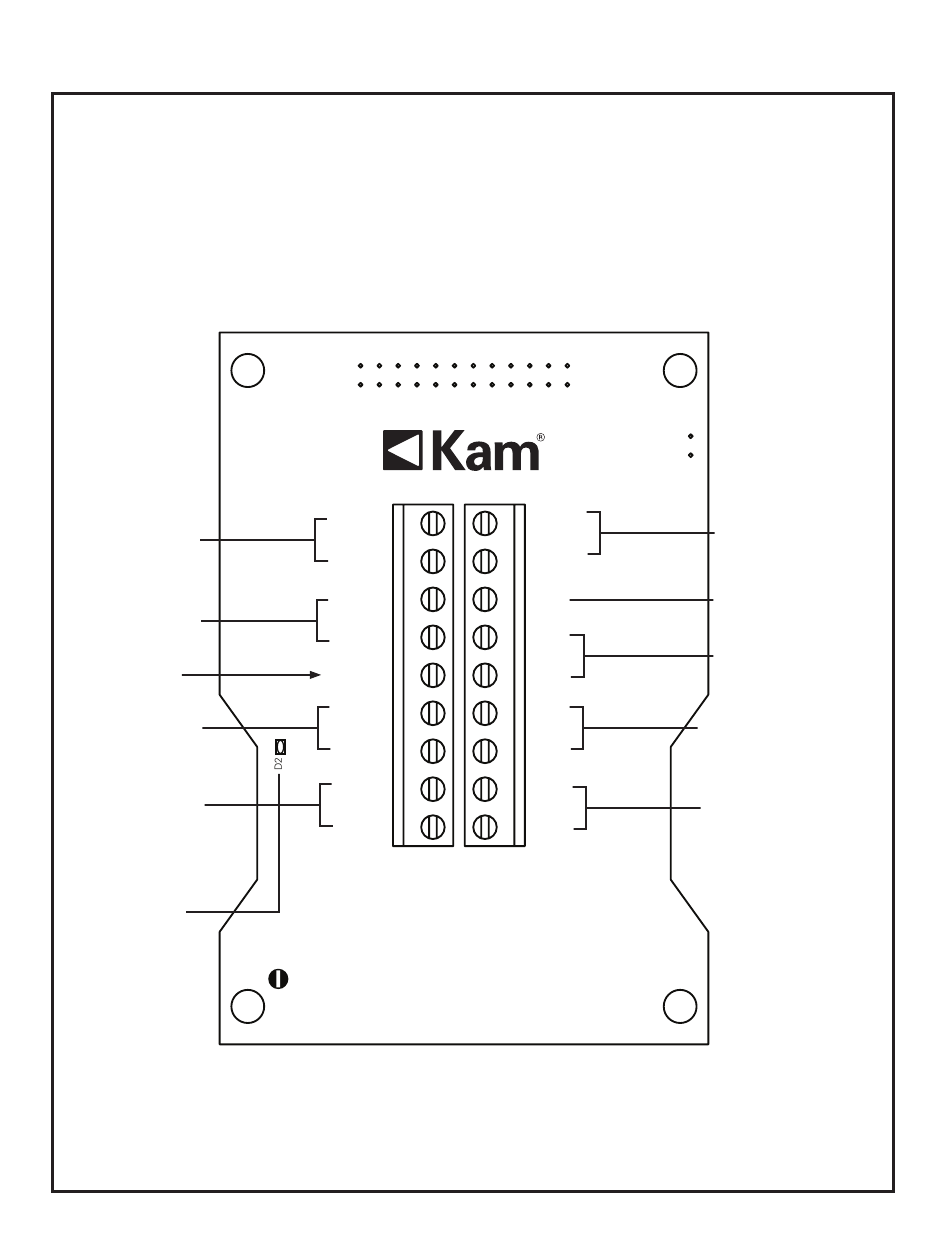

FIG. 3-14 WIRING DIAGRAM OWD MODELS WITH RANGES OTHER THAN 0-100%
Factory Use
RS485
Shared ground
(RS485 and RS232)
RS232
Factory Use
Main power
indicator
OWDMANUAL 1114
TEC+
GND
RS485 (-)
RS485 (+)
GND
RXDO
TXDO
GND
DIN
3939 Ann Arbor Drive
Houston, TX 77063 USA
Tel + 1 713 784 0000
Fax + 1 713 784 0001
E-mail askanengineer@Kam.com
www.Kam.com
GND
Made in USA
DENSITY
GND
DOUT
AGND
AOUT1
AGND
AOUT0
V (-) in
V (+) in
19
Density Input
Alarm or Relay
4-20mA Output or
analog voltage
4-20mA Output
24-30 VDC Power
KAM CONTROLS, INC.
