M A I N T E N A N C E C O N T I N U E D
13.
Connect the Cables to the Sensor with the SMA connectors. NOTE: Do not add Loctite to the SMA
Connectors. They should be finger tight and then turned 1/16 of a turn with the 5/16" Wrench.
14.
Ensure that the proper Cable colors are connected to the proper Antennas: red to titanium and black to
stainless.
15.

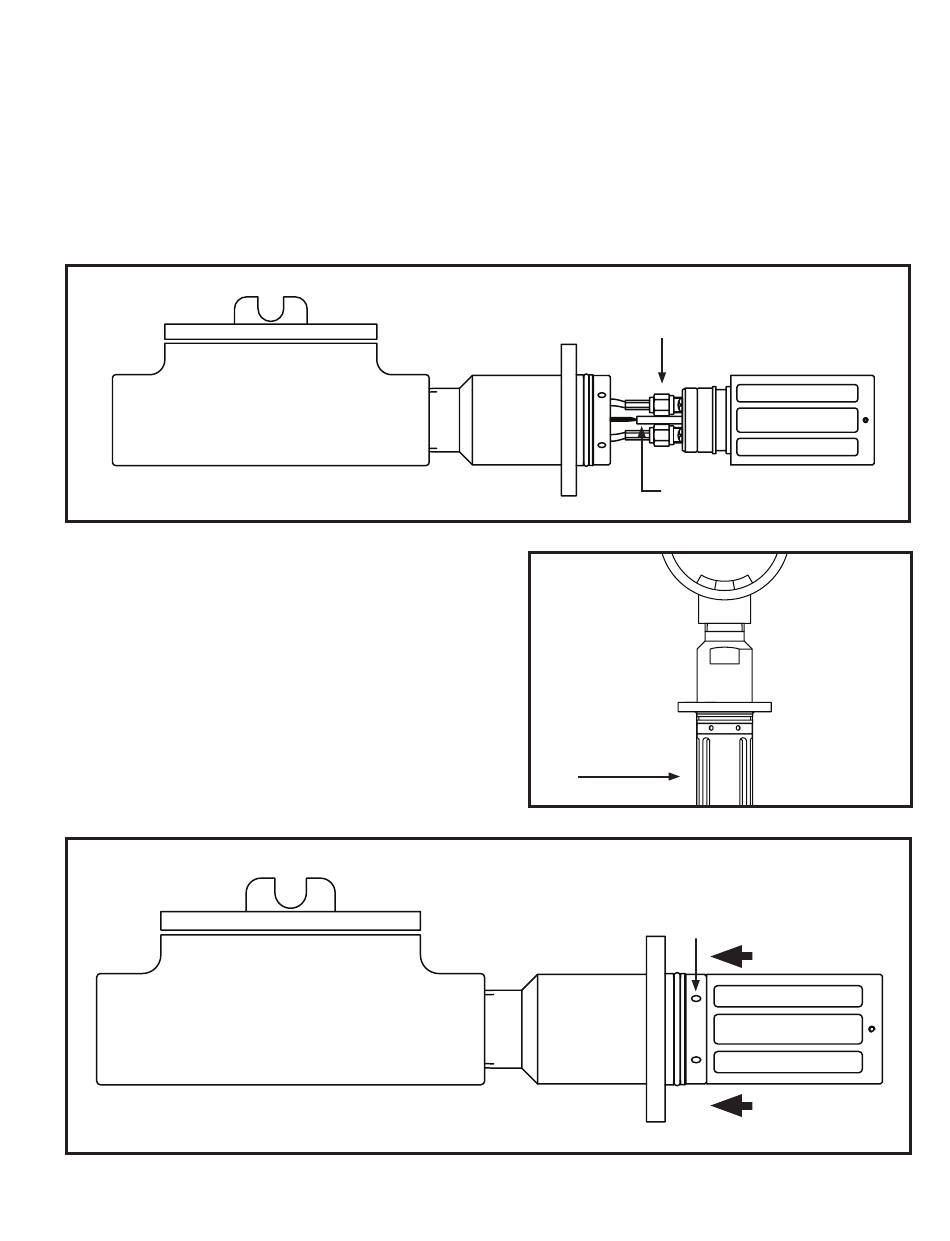

Insert the RTD into Sensor Body. FIG. 5-12
FIG. 5-12
16.
Push Sensor back into place.
Align the window so that it will directly face the
17.
direction of the flow. FIG. 5-13
Add Loctite to all (6) 8-32 Set Screws and install
18.
them back in Sensor. FIG. 5-14
FIG. 5-14
OWDMANUAL 1114
SMA Connectors
FIG. 5-13
Flow
34
RTD
8-32 Set Screws
KAM CONTROLS, INC.
