Cable assemblies

All cable assemblies for JS1-H are 185 mm (7.30 in) from the bottom of the case to the end of the
connector.

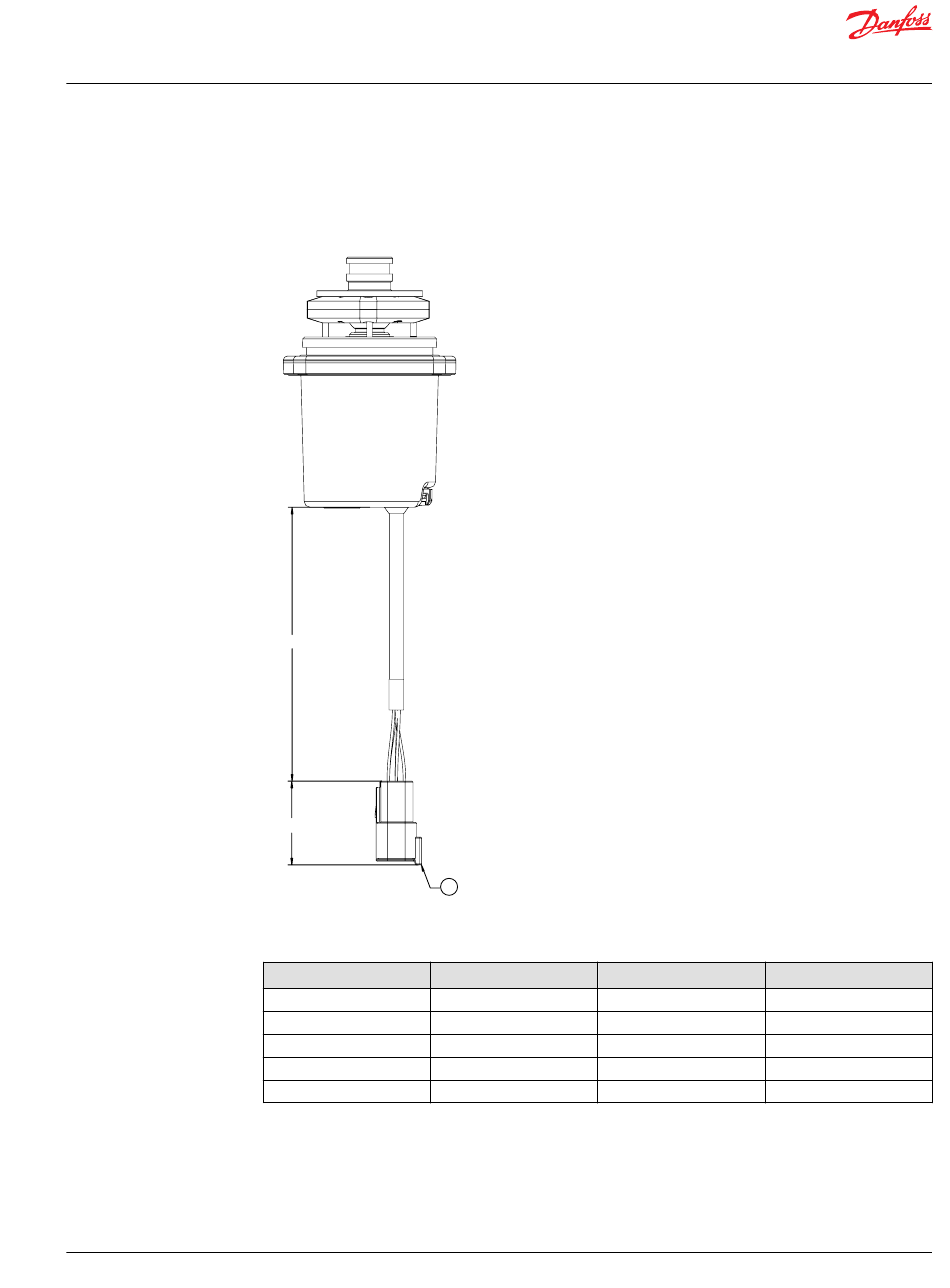

JS1-H cable length
143.00 [5.63]
43.70 [01.72]
1. DEUTSCH DTM04 receptacle
Compatible mating cables available for different applications
Code no. 162B.... Length mm [in]
6013 4000 [157]
6014 4000 [157]
6015 500 [19]
6016 230 [9]
6017 230 [9]
1
Plug type
Leads
Leads
Clipper
TRIM TRIO
Tabs
Type
Vertical SUB-D
Horizontal Sub-D
–
–
PVRE compatibility
