Summary of Contents for Danfoss JS2000 Series

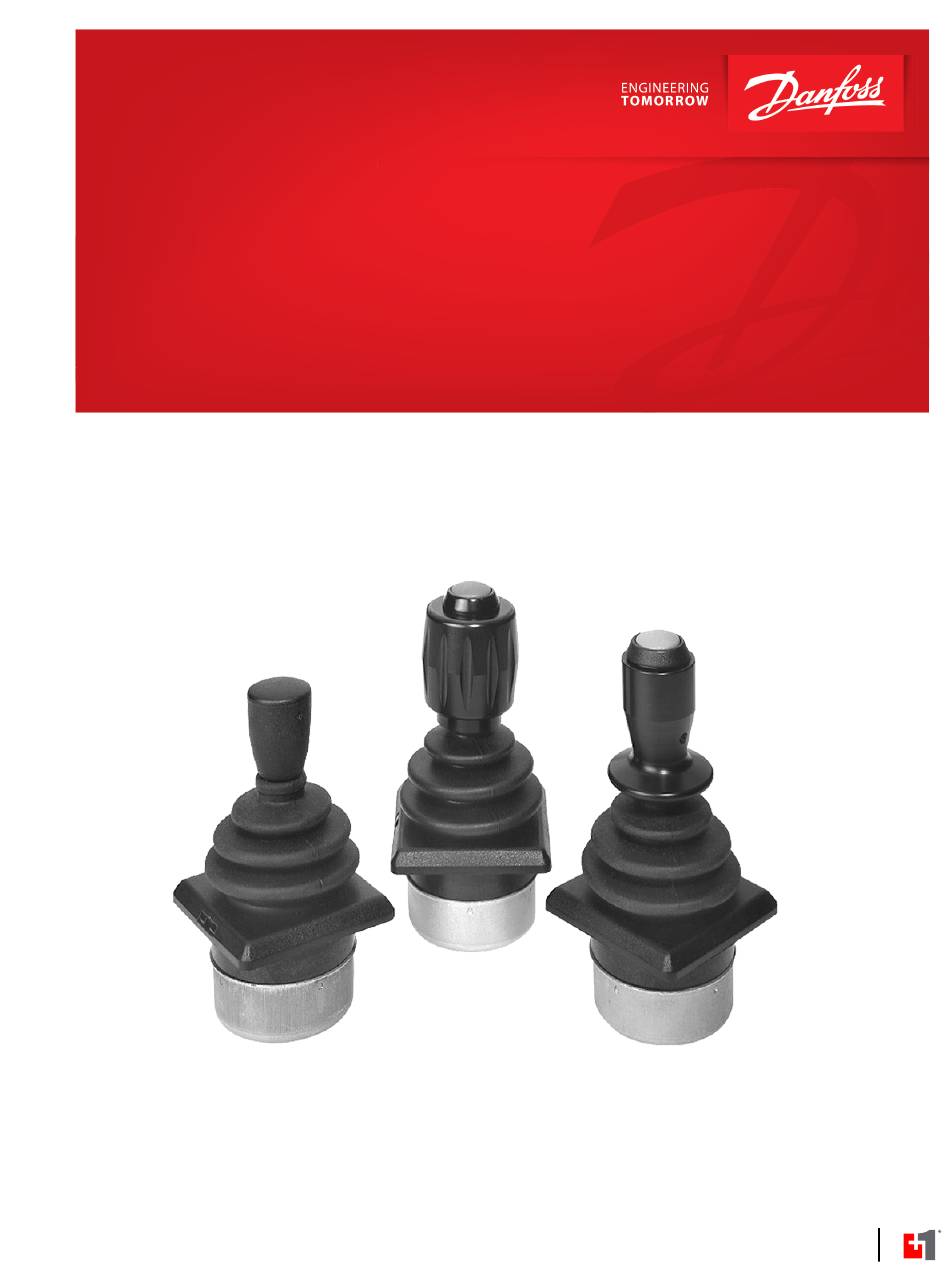

  • Page 1 Technical Information Joysticks JS2000 Joystick powersolutions.danfoss.com...
  • Page 2 Technical Information JS2000 Joystick Revision history Table of revisions Date Changed May 2017 Updated to Engineering Tomorrow design 0102 November 2015 Converted to Danfoss layout 0101 March 2005 First edition 520L0876 | BC00000073en-US0102 © Danfoss | May 2017...
  • Page 3: Table Of Contents

    Mating connector details................................11 Machine wiring guidelines................................. 12 Joystick safety critical functions............................... 12 Output Noise....................................13 Magnetic immunity..................................13 Supply voltage....................................13 Product specifications Mechanical characteristics................................14 Electrical characteristics................................15 Environmental characteristics..............................15 520L0876 | BC00000073en-US0102 | 3 © Danfoss | May 2017...
  • Page 4: Description

    Compact size • Low operating forces • Easy installation • Operating life > 15 M operations • IP 65 sealing above panel • CE approved • Multiple grip options, including twist Z axis 520L0876 | BC00000073en-US0102 © Danfoss | May 2017...
  • Page 5: Product Configuration Model Code

    Single sensor output—same sense Y and Z, opposite XYZ axis sense X NONON Single sensor output—opposite sense each axis XYZ axis D—Output span Code Description Axis Option 0.5 to 4.5 V DC nominal X and XY 520L0876 | BC00000073en-US0102 | 5 © Danfoss | May 2017...
  • Page 6 Ergonomic grip w/ green push button X, XY, XYZ Ergonomic grip w/ yellow push button X, XY, XYZ Ergonomic grip w/ blue push button X, XY, XYZ Straight grip X and XY 520L0876 | BC00000073en-US0102 © Danfoss | May 2017...
  • Page 7 Code C Code P Switch color option Code Button Black Green Yellow Blue G—Guided or non-guided option Code Description Axis Option Non-guided feel X, XY, XYZ Guided feel XY, XYZ 520L0876 | BC00000073en-US0102 | 7 © Danfoss | May 2017...
  • Page 8: Output Sense (Direction)

    Vs or ground connections will affect the joystick outputs. The normal output at the center tap connection is 49.16 to 50.84% of Vs. A center tap output outside this range indicates a fault in the supply to the joystick Hall sensors. 520L0876 | BC00000073en-US0102 © Danfoss | May 2017...
  • Page 9: Output Impedance

    The effect of adding finite load impedance will be to source or sink current through the joystick output impedance. The voltage dropped through the joystick output impedance must be taken into account when the system threshold voltages are being defined. 520L0876 | BC00000073en-US0102 | 9 © Danfoss | May 2017...
  • Page 10: Product Installation

    [1.87] Forward kwa1392485256163 Optional boot protector supplied on K1 only Flange dimension 44.3 [1.744] square (with trim plate removed) 4 off through holes Ø3.3 [Dia 0.13], countersunk on top surface 520L0876 | BC00000073en-US0102 10 | © Danfoss | May 2017...
  • Page 11: Connector Pin Assignments

    5 V DC Center tap Left/Right output 2 Z axis output Switch output (NC if no switch) Caution Red lead on Danfoss mating connector kit is assigned to pin 8. Mating connector details Mating connector Connector Ordering number 8-pin FCI Minitek...
  • Page 12: Machine Wiring Guidelines

    Take steps to detect and manage joystick and system failures that may cause an erroneous output. For safety critical functions Danfoss recommends you use an independent momentary action system enable switch. You can incorporate this switch into the joystick as an operator presence switch or can be a separate foot or hand operated momentary switch.
  • Page 13: Output Noise

    The JS2000 is designed to operate from a regulated 5 V DC ± 0.5 V DC supply that is free from transients. Joystick outputs are ratiometric and are therefore a function of the input voltage. 520L0876 | BC00000073en-US0102 | 13 © Danfoss | May 2017...
  • Page 14: Product Specifications

    Operating torque 0.04 N.m (0.03 ft.lb) Breakout 0.06 N.m (0.04 ft.lb) Operating 1.0 N.m (0.74 ft.lb) Maximum allowable Mechanical angle ± 20° Mechanical angle Expected life 5 M operations Expected life 520L0876 | BC00000073en-US0102 14 | © Danfoss | May 2017...
  • Page 15: Electrical Characteristics

    60 V/m (25 MHz to 1 GHz, 1 kHz sine wave modulation) EMC immunity level Complies with EN50081-1 (1992), 30 MHz to 1 GHz EMC emissions level ±8 kV Contact discharge; 15 kV air discharge (10 discharges) ESD immunity level 520L0876 | BC00000073en-US0102 | 15 © Danfoss | May 2017...
  • Page 16 Phone: +86 21 3418 5200 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without changes being necessary in specifications already agreed.
