Installation Guide

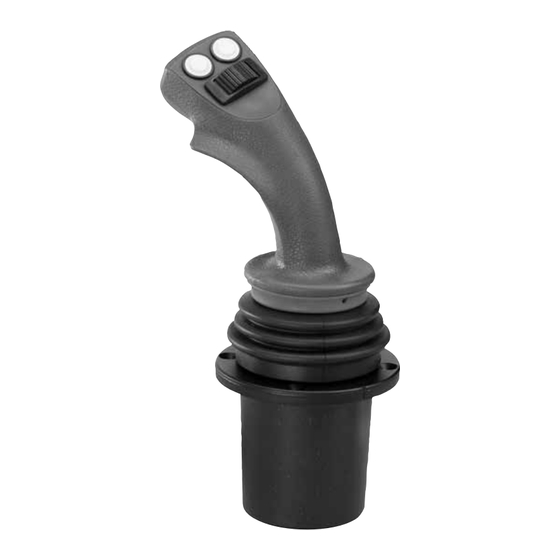

Joystick Prof 1

CIP

Montering

Mounting

Montage

L1317817 • Rev AB • Mar 2014

Positionering af greb

Positioning of grip

Positionierung des griffes

Positionnement de la poignée

Nøglevidde

Moment

Across flats

torque

Schlüsselweite

Anzungsmoment

Surplats

Couple de serrage

2.5

2.1 Nm

Need help?

Do you have a question about the Prof 1 and is the answer not in the manual?

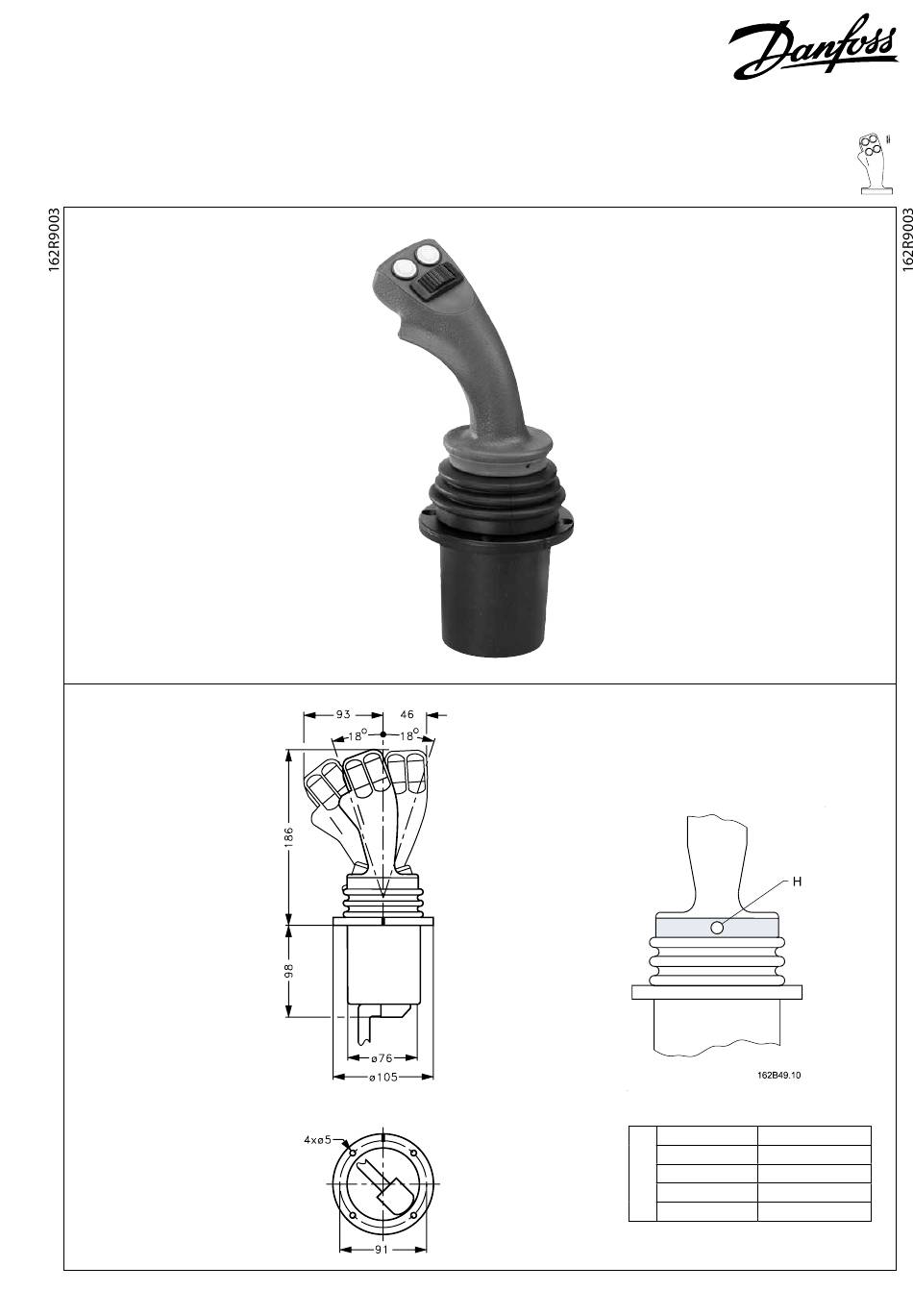

Page 1 Installation Guide Joystick Prof 1 Montering Positionering af greb Mounting Positioning of grip Montage Positionierung des griffes Montage Positionnement de la poignée Nøglevidde Moment Across flats torque Schlüsselweite Anzungsmoment Surplats Couple de serrage 2.1 Nm © Danfoss, 2014-03 L1317817 • Rev AB • Mar 2014...
Page 2 It is important to ensure termination at both ends of the CAN-bus. The termination contains a 120 Ω resistance and is contained in Prof 1 CIP. To keep it simple, pin 16 CAN- is connected to a 120 Ω resistance. If Prof 1 CIP is the last CAN component on the bus the termination can be ensured by incorporating a shunt between CAN+ (pin 4) and CAN-Term (pin 1).
Page 3 Le manipulateur fonctionne en mode maître CAN Open Closed Débit de communication et ID noeuds définis par logiciel Open Débit de communication et numéro d’identité standard Closed Open Closed Open © Danfoss, 2014-03 L1317817 • Rev AB • Mar 2014...
Page 4 Max supply voltage 36 V DC Max ripple Note: Contrary to analogue joysticks (such as Prof 1) PROF 1 CIP can be connected direct to the battery and does not need supply voltage directly from the PVE’s. Technische Daten Stromversorgung...
