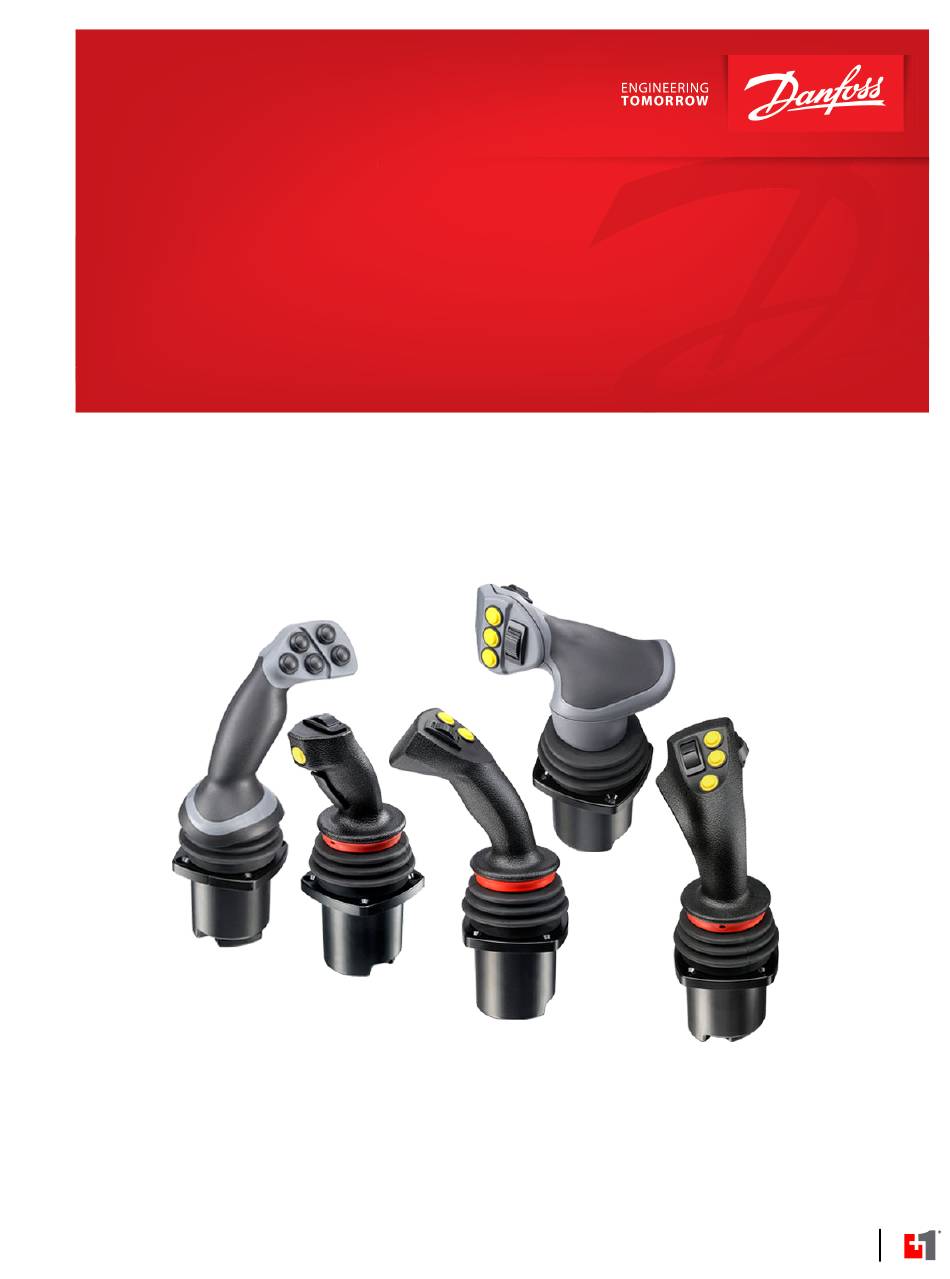

  • Page 1 Electrical Installation Joysticks JS1 Heavy Duty powersolutions.danfoss.com...
  • Page 2 Electrical Installation JS1 Heavy Duty Joysticks Revision history Table of revisions Date Changed December 2016 Added PVE information 0201 February 2016 First edition 0101 BC00000346en-US | 0201 © Danfoss | December 2016...
  • Page 3: Table Of Contents

    One 12 pin connector................................8 Two 12 pin connectors................................9 Two 12 pin and one 6 pin connectors..........................10 One 25 and One 6 D-Sub pin connectors........................11 Mating connectors bag assemblies........................... 12 Cable assemblies..................................13 BC00000346en-US | 0201 | 3 © Danfoss | December 2016...
  • Page 4: Literature References

    JS1 Heavy Duty Joysticks Technical Information Complete product electrical and mechanical specifications AQ00000202 JS1 J1939 Function Block User Manual Compliant function blocks set-up information AQ00000203 JS1 CANopen Function Block User Manual Comprehensive technical literature online at powersolutions.danfoss.com BC00000346en-US | 0201 © Danfoss | December 2016...
  • Page 5: Product Overview

    Description JS1 Heavy Duty Joysticks The Danfoss platform offers a wide variety of new grip designs and were developed after extensive research detailing operator needs. The JS1 heavy duty joysticks (JS1-H) and compatible grips meet the demanding conditions typically found in mobile equipment environments. The available grips features provide a high degree of protection from chemicals, shock, vibration and EMC exposure.
  • Page 6: Electrical-Pve (Extended Only)

    Hall effect with redundant sensors Potentiometer Resolution 12 bit Supply voltage (V 9 to 36 Vdc Output J1939 and CANopen protocols Base maximum current consumption 120 mA at 9V Base maximum survival supply voltage 68 Vdc BC00000346en-US | 0201 © Danfoss | December 2016...
  • Page 7: Connector Options And Cabling

    DEUTSCH DTM04 6 pin DEUTSCH DTM04 6 pin Function White Ground Brown Power Green CAN high Yellow CAN low Grey CAN shield Pink Ground Blue Power CAN high Black CAN low BC00000346en-US | 0201 | 7 © Danfoss | December 2016...
  • Page 8: One 12 Pin Connector

    CAN high Pink-Green CAN low Grey CAN shield Violet Proportional 1 Grey-Pink Proportional 2 Red-Blue Proportional 3 White-Red Push 7 Brown-Red Push 8 Green PVE power (neutral switch) Whte-Yellow PVE power feedback BC00000346en-US | 0201 © Danfoss | December 2016...
  • Page 9: Two 12 Pin Connectors

    Yellow-Grey Direction 2a Pink-Green Direction 2b Grey Direction 3a Violet Direction 3b Grey-Pink Proportional 4 Red-Blue Direction 4a White-Red Direction 4b Brown-Red Proportional 5 Green Direction 5a Whte-Yellow Direction 5b BC00000346en-US | 0201 | 9 © Danfoss | December 2016...
  • Page 10: Two 12 Pin And One 6 Pin Connectors

    Yellow-Grey Direction 2a Pink-Green Direction 2b Grey Direction 3a Violet Direction 3b Grey-Pink Proportional 4 Red-Blue Direction 4a White-Red Direction 4b Brown-Red Proportional 5 Green Direction 5a Whte-Yellow Direction 5b BC00000346en-US | 0201 10 | © Danfoss | December 2016...
  • Page 11: One 25 And One 6 D-Sub Pin Connectors

    Push 7 Green PVE power (neutral switch) Brown Power Yellow-Brown Power White-Grey Direction 5b White-Green Proportional 4 Grey-Brown Direction 3b/Push 2/* White-Pink Direction 4a/Push 3/* Pink-Brown Direction 4a/Push 4/* White Ground BC00000346en-US | 0201 | 11 © Danfoss | December 2016...
  • Page 12: Mating Connectors Bag Assemblies

    CAN high Pink-green CAN low Grey CAN shield Mating connectors bag assemblies (must be ordered separately from joystick) Danfoss connector bag assemblies part numbers Description Danfoss part number One 6 pin DEUTSCH connector 10101551 Two 6 pin DEUTSCH connectors 11177980...
  • Page 13: Cable Assemblies

    Type 6013 4000 [157] Leads Vertical SUB-D 6014 4000 [157] Leads Horizontal Sub-D 6015 500 [19] Clipper – 6016 230 [9] TRIM TRIO – 6017 230 [9] Tabs PVRE compatibility BC00000346en-US | 0201 | 13 © Danfoss | December 2016...
  • Page 14 Electrical Installation JS1 Heavy Duty Joysticks Electrical installation Cable assemblies - first is vertical view, followed by horizontal views kwa1385300991617 BC00000346en-US | 0201 14 | © Danfoss | December 2016...
  • Page 15 Electrical Installation JS1 Heavy Duty Joysticks BC00000346en-US | 0201 | 15 © Danfoss | December 2016...
  • Page 16 Phone: +86 21 3418 5200 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without changes being necessary in specifications already agreed.
