Jofemar Vision Snack Plus Technical Manual page 7

vision
Snack Plus/Easy Combo // Vending

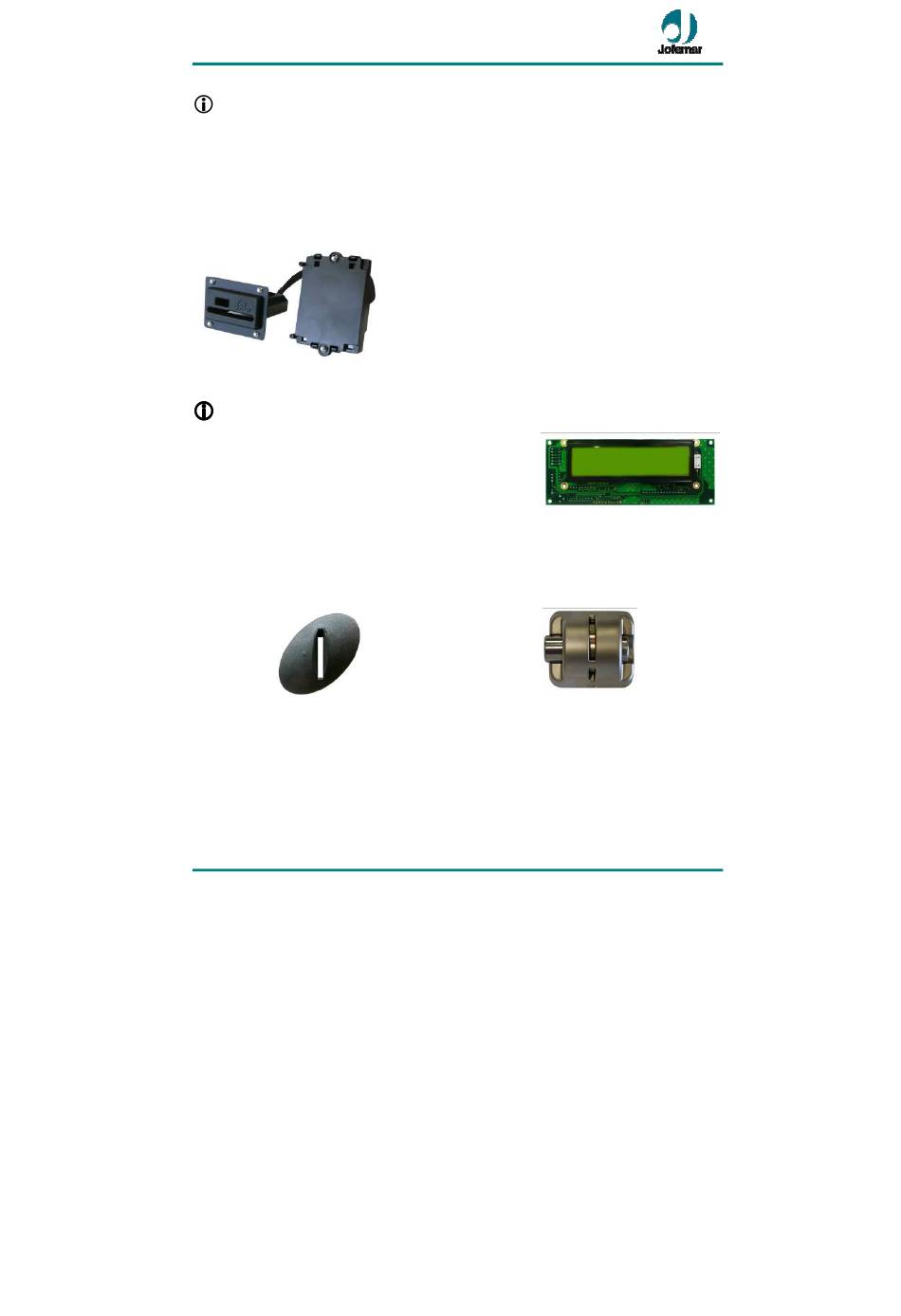

J-130 card reader
• JOFEMAR J1oxx card reader. It can be used for purchases with cards (normal or
free), to recharge cards with credit, to program the machine and to obtain audits.
Communications with the card reader take place via RS-232. When working with a J-
2000 MDB coin changer, the card reader is connected to one of the two RS-232
outputs on the machine control card. When working with a J-2000 EXECUTIVE coin
changer the card reader should be connected to coin changer (see the manual for
the J-2000 EXECUTIVE).
Fig. 03
Display
It is essentially used in machine programming
operations to display accounting data and technical
incidents and shows the credits entered or the sale
prices of the products.
Coin inlet
There are two types of coin inlet: the standard coin slot (fig. 05) and the vandal-proof,
security model (fig. 06) which is optional.
Fig. 05
Coin return pushbutton
It is located to the right of the coin inlet, its function is to return coins, (if you wish to
recover the amount that you have inserted in the machine).
MNP86V03GBV00
• The MDB card reader with which we can only
make sales with cards, can be used if the
program version is for working with the compact
MDB.
• This component comes as an option.
Date: 2010/06/14 Rev. 0
Fig. 04
Fig. 06
PAGE 7 OF 62
