vision
Snack Plus/Easy Combo // Vending

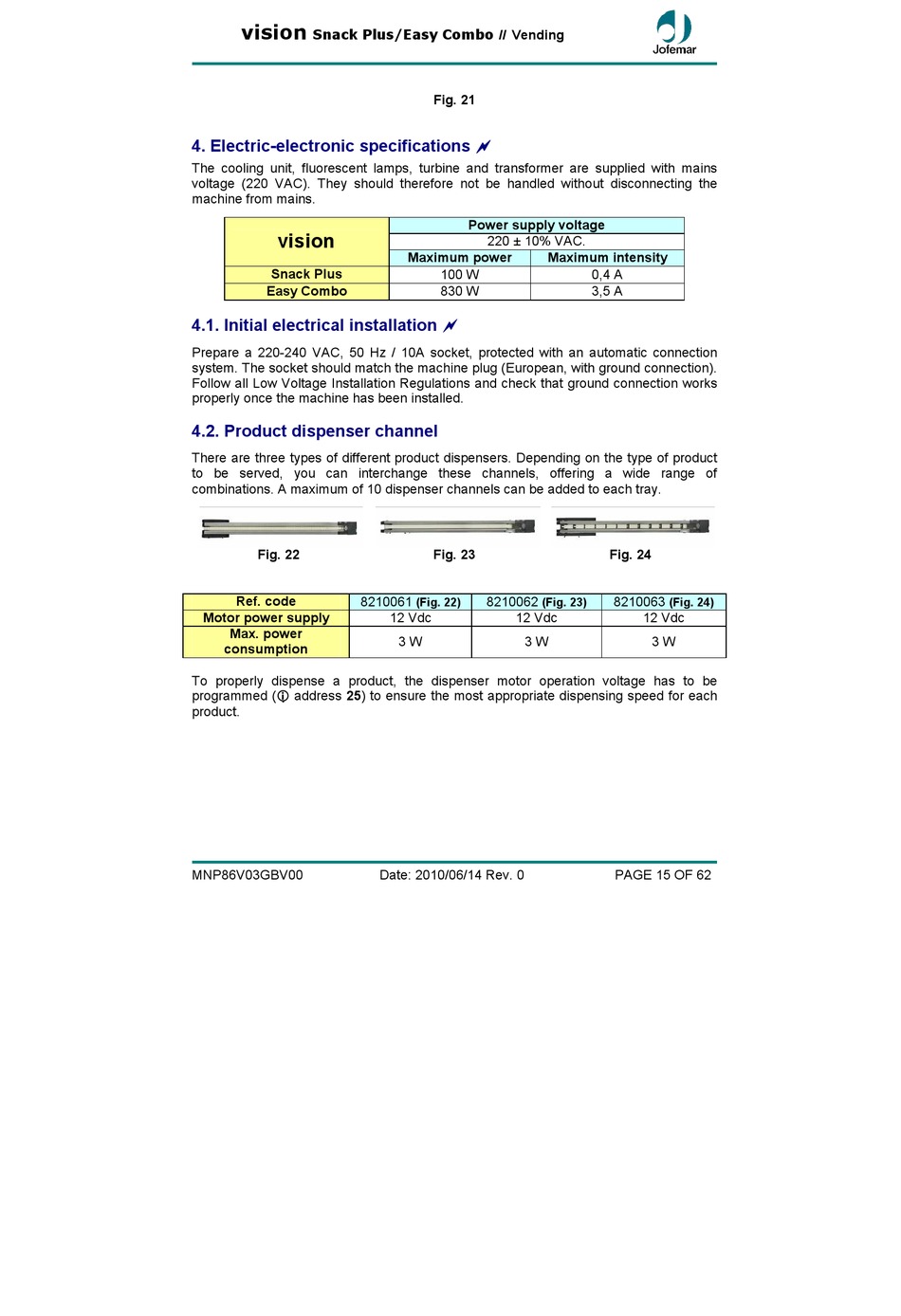

4. Electric-electronic specifications

The cooling unit, fluorescent lamps, turbine and transformer are supplied with mains
voltage (220 VAC). They should therefore not be handled without disconnecting the
machine from mains.
vision
Snack Plus
Easy Combo

4.1. Initial electrical installation

Prepare a 220-240 VAC, 50 Hz / 10A socket, protected with an automatic connection
system. The socket should match the machine plug (European, with ground connection).
Follow all Low Voltage Installation Regulations and check that ground connection works
properly once the machine has been installed.

4.2. Product dispenser channel

There are three types of different product dispensers. Depending on the type of product
to be served, you can interchange these channels, offering a wide range of
combinations. A maximum of 10 dispenser channels can be added to each tray.
Fig. 22
Ref. code
Motor power supply
Max. power
consumption
To properly dispense a product, the dispenser motor operation voltage has to be
programmed (  address 25) to ensure the most appropriate dispensing speed for each
product.
MNP86V03GBV00
Fig. 21
Power supply voltage
220 ± 10% VAC.
Maximum power
100 W
830 W
Fig. 23
8210061 8210062
(Fig. 22)
12 Vdc 12 Vdc
3 W 3 W
Date: 2010/06/14 Rev. 0
Maximum intensity
0,4 A
3,5 A
Fig. 24
8210063
(Fig. 23) (Fig. 24)
12 Vdc
3 W
PAGE 15 OF 62
