Jofemar Vision Snack Plus Technical Manual page 13

vision
Snack Plus/Easy Combo // Vending

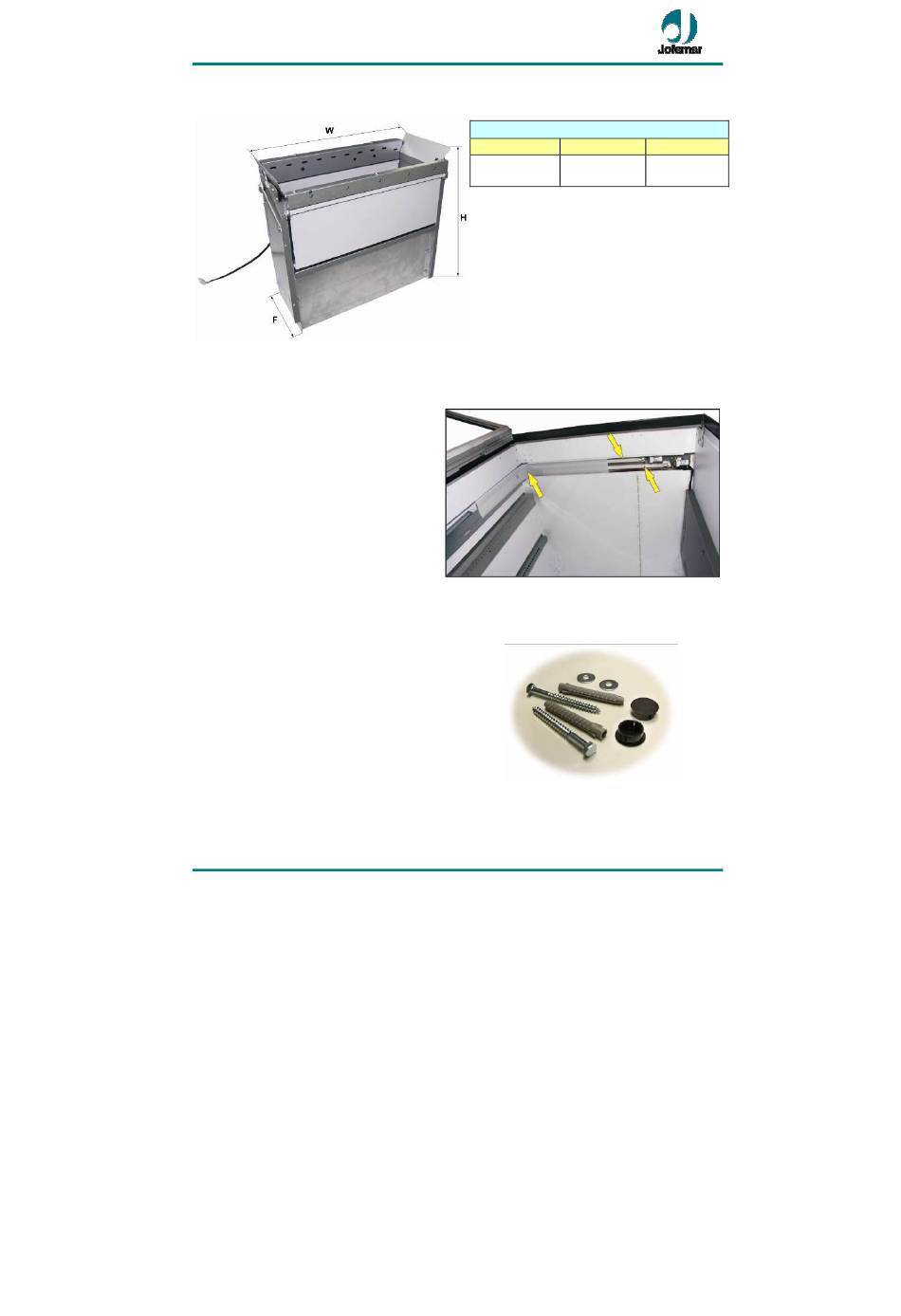

Product delivery bin
Fig. 16
Lighting
The machine is perfectly illuminated
with two fluorescent lamps fed by a
220 Vac supply which are located
inside the cabinet, at the top (fig.
17), the tubes have a power rating of
13 W each and they are protected by
a diffuser filter which is slid along the
guides in that area.
Machines with a 110 Vac power
supply will have three
fluorescent lamps.
Anchoring
These machines are fitted with holes and
supplied with an anchoring kit (fig. 18)
that can be used to anchor the machine
to the floor (fig. 19) or to the wall (fig. 20)
for greater stability and support and to
prevent thefts.
MNP86V03GBV00
Height (H)
465 mm
18 1/3"
The product detection system located in
the product delivery bin has a product
detector based on photodiodes and
phototransistors; so that when the
infrared beam is interrupted, the system
knows a product has fallen inside the
bin.
8 W
Date: 2010/06/14 Rev. 0
Dimensions
Width (W) Depth (D)
505 mm 240,5 mm
19 7/8" 9 1/2"
Fig. 17
Fig. 18
PAGE 13 OF 62
