Removal of Indoor Heat Exchanger

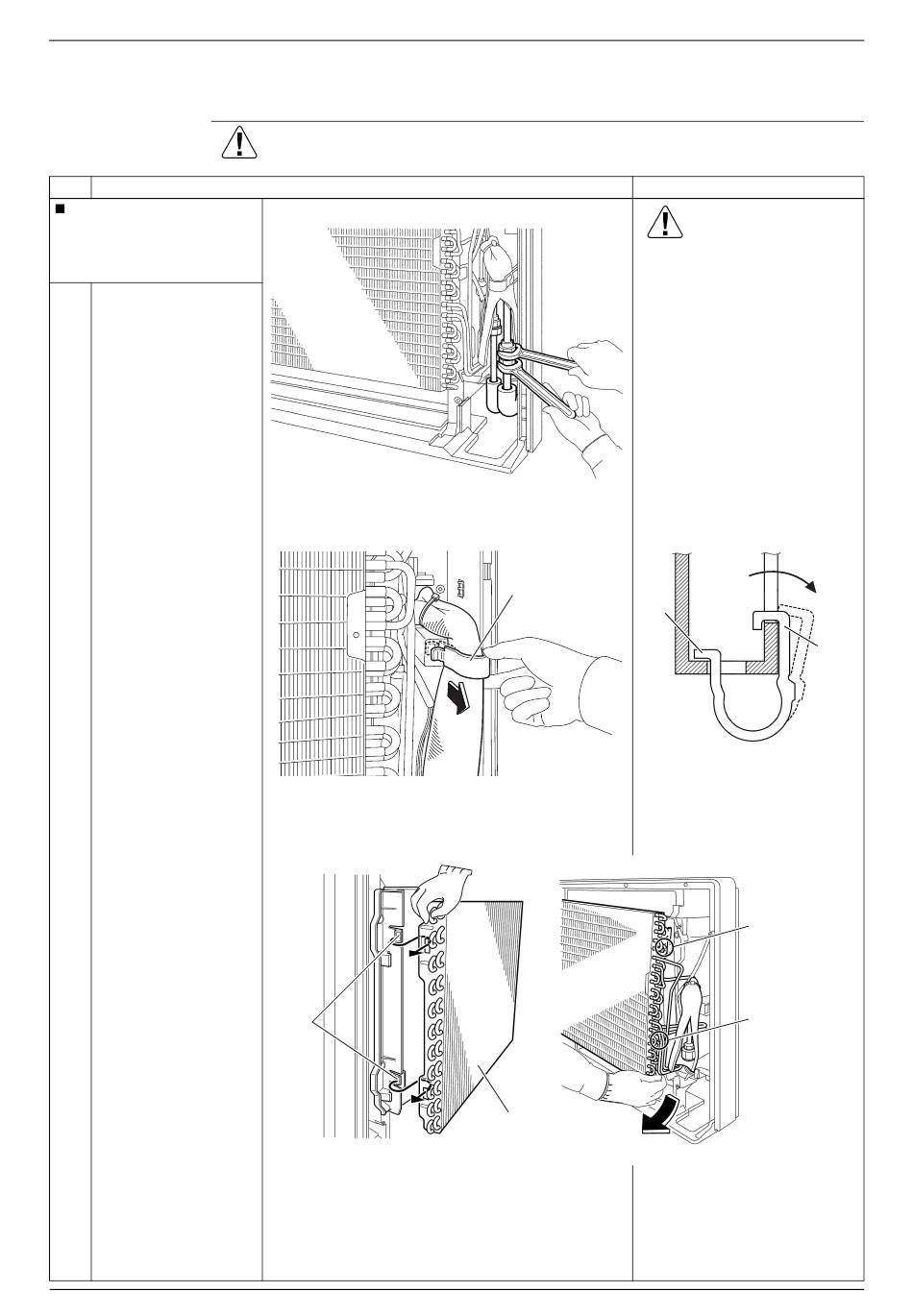

6. Removal of Indoor Heat Exchanger
Procedure
Step
Make sure that the
refrigerant gas is removed
after the pump down
work.
1 Release the flared
joint of the liquid pipe
and the gas pipe
using 2 wrenches.
2 Remove the piping
fixture.
3 Unfasten the 2 hooks
on the left side of the
indoor heat exchanger.
4 Unfasten the 2 hooks
on the right side and
remove the indoor heat
exchanger.
16
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Hook
When removing or
reassembling the indoor heat
exchanger, be sure to wear
gloves or wrap the indoor
heat exchanger with cloth
before proceeding to the
work. (You may be injured by
the fins.)
(R11499)
Left
Piping fixture
hook
(R11502)
Indoor heat
exchanger
(R14975)
Si061061
Points
Caution
Right
hook
(R9994)
Hook
Hook
(R11501)
Removal Procedure
