Daikin FVXS25FV1B Service Manual page 10
Removal procedure. 2.5/3.5/5.0 kw class
Hide thumbs
Also See for FVXS25FV1B:
- Service manual (216 pages) ,
- Operation manual (36 pages) ,
- Installation manual (19 pages)
Advertisement

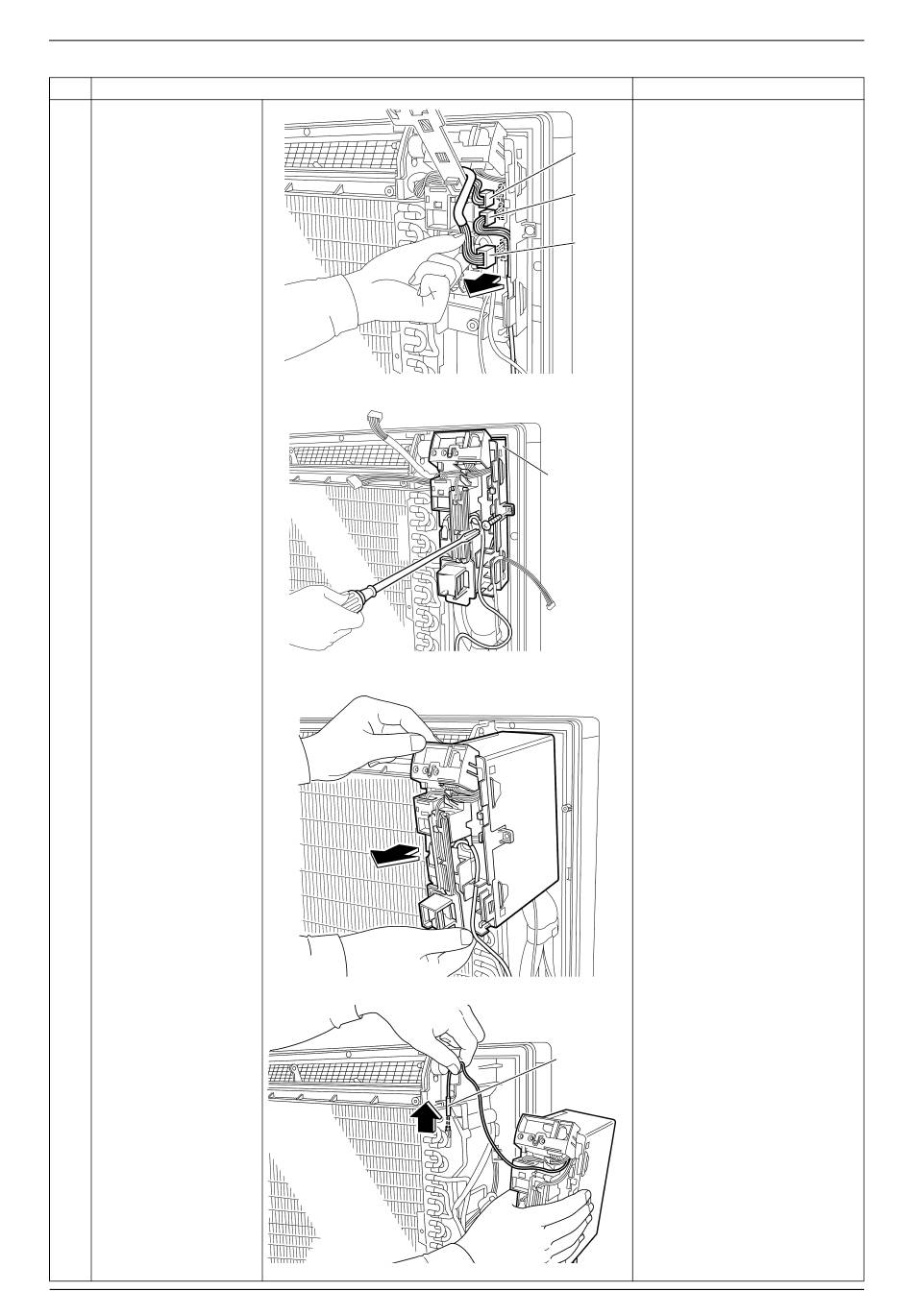

Removal of Electrical Box
Step
5
Disconnect the
3 connectors
[S1] [S41] [S42].
6
Remove the screw of
the electrical box.
7
Pull out the electrical
box.
8
Pull out the indoor heat
exchanger thermistor.
8
Procedure
[S1] : fan motor
[S41]: lower air outlet motor
[S42]: swing motor
[S42]
[S41]
[S1]
(R6784)
Electrical
box
(R6785)
(R6786)
Indoor heat
exchanger
thermistor
(R6787)
Si061061
Points
Removal Procedure
