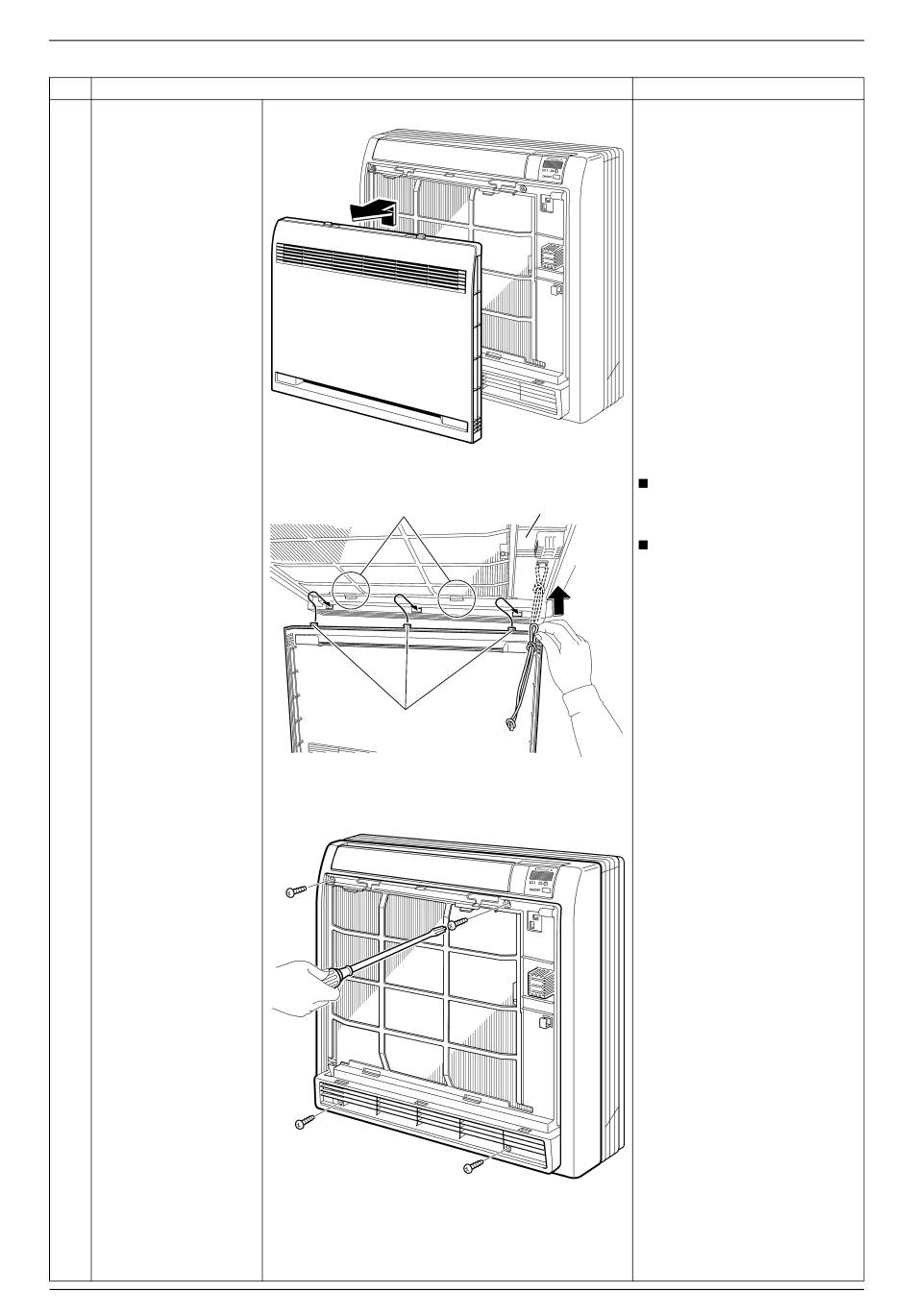

Removal of Air Filter / Front Panel / Front Grille
Step
5 Release the string from
the hook.
6 Release the 3 hooks of
the bottom of the front
panel and remove the
front panel.
7 Remove the 4 screws
from the front grille.
4
Procedure
Hook for the air filter
Hook for the front panel
(R6772)
When installing the air filter,
catch the 2 hooks of the front
Front grille
grille.
When installing the front
panel, catch the 3 hooks of
the front grille and hitch the
string to prevent the front
panel from dropping.
(R17116)
(R6774)
Si061061
