Si061061

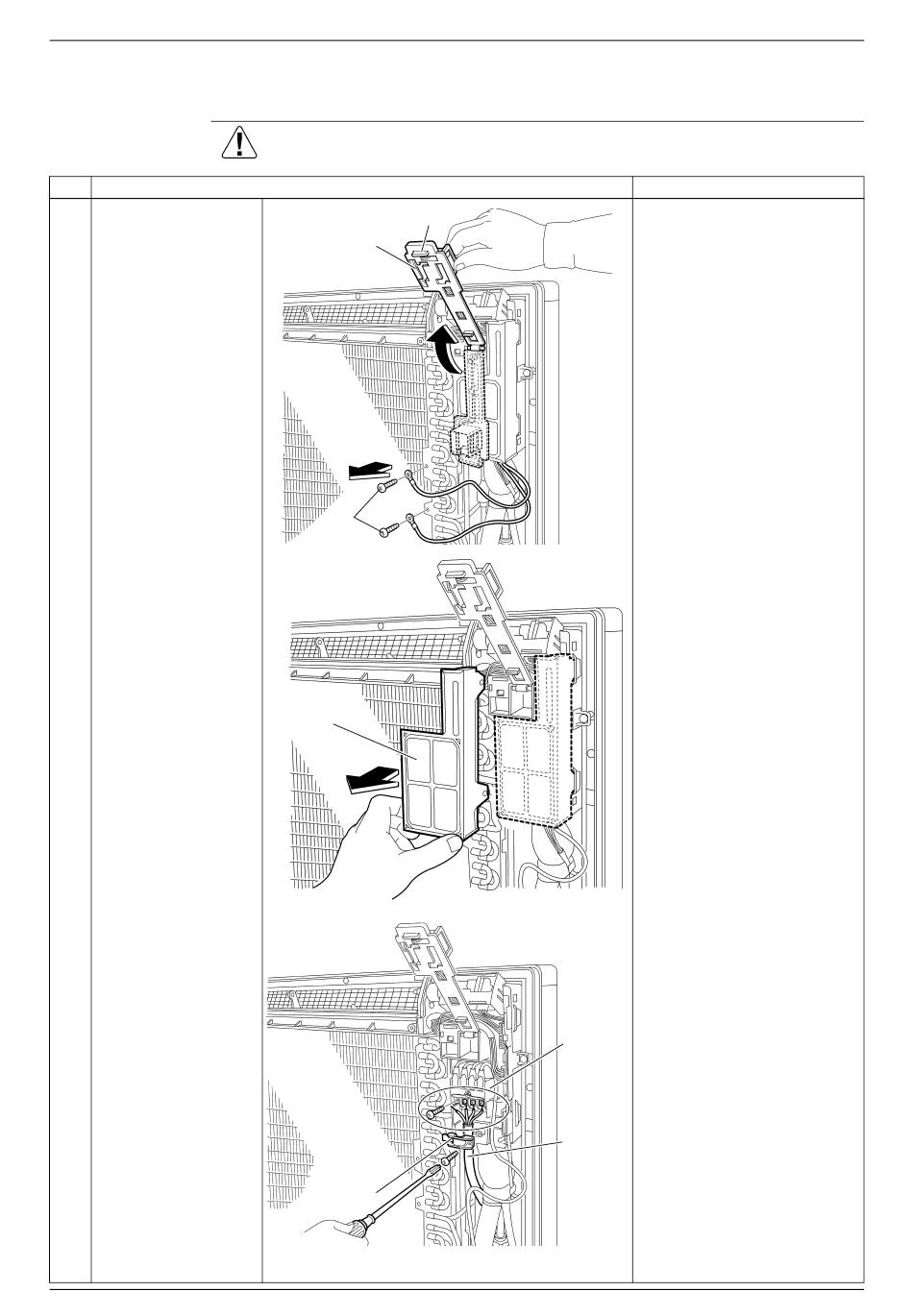

3. Removal of Electrical Box

Procedure
Step
1 Remove the 2 earth
wire screws.
2 Unfasten the hook and
lift the sensor PCB
fixing plate.
3 Remove the front
shield plate.
4 To detach the
connection wires,
remove the screw
from the wiring
fixture and remove
the 4 screws from
the terminal board.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Hook
Sensor PCB fixing plate
Earth
screw
Front shield plate
Wiring fixture
Removal of Electrical Box
Points
(R14973)
(R6782)
Terminal
board
Connection
wires
(R6783)
7
