Si061061
Step

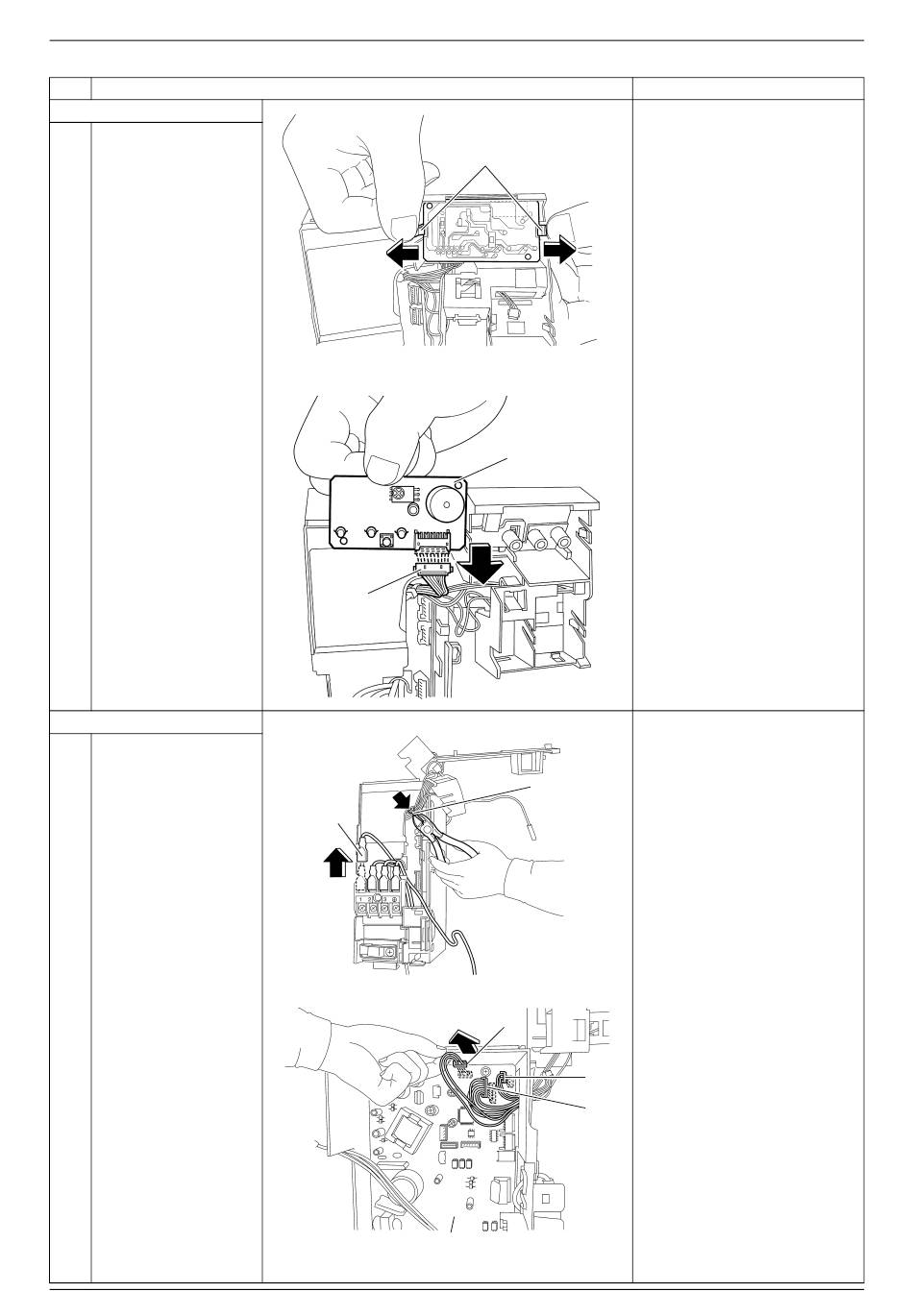

4. Remove the display PCB.
1
Unfasten the 2 hooks
of the display PCB.
2
Disconnect the
connector [S47] and
remove the display
PCB.
5. Remove the control PCB.
1
Cut the clamp and pull
out all the terminals
from the terminal
board.
2
Disconnect the
connectors [S26] [S46]
[S48].
Removal Procedure
Procedure
Hook
[S47]
Terminal
Control PCB
(R14753)
Display PCB
(R6797)
Clamp
(R6798)
[S26]: service PCB
[S46]: display PCB
[S48]
[S48]: sensor PCB
[S26]
[S46]
(R6799)
Removal of PCBs
Points
11
