7. Removal of Fan Rotor / Fan Motor

Procedure
Step

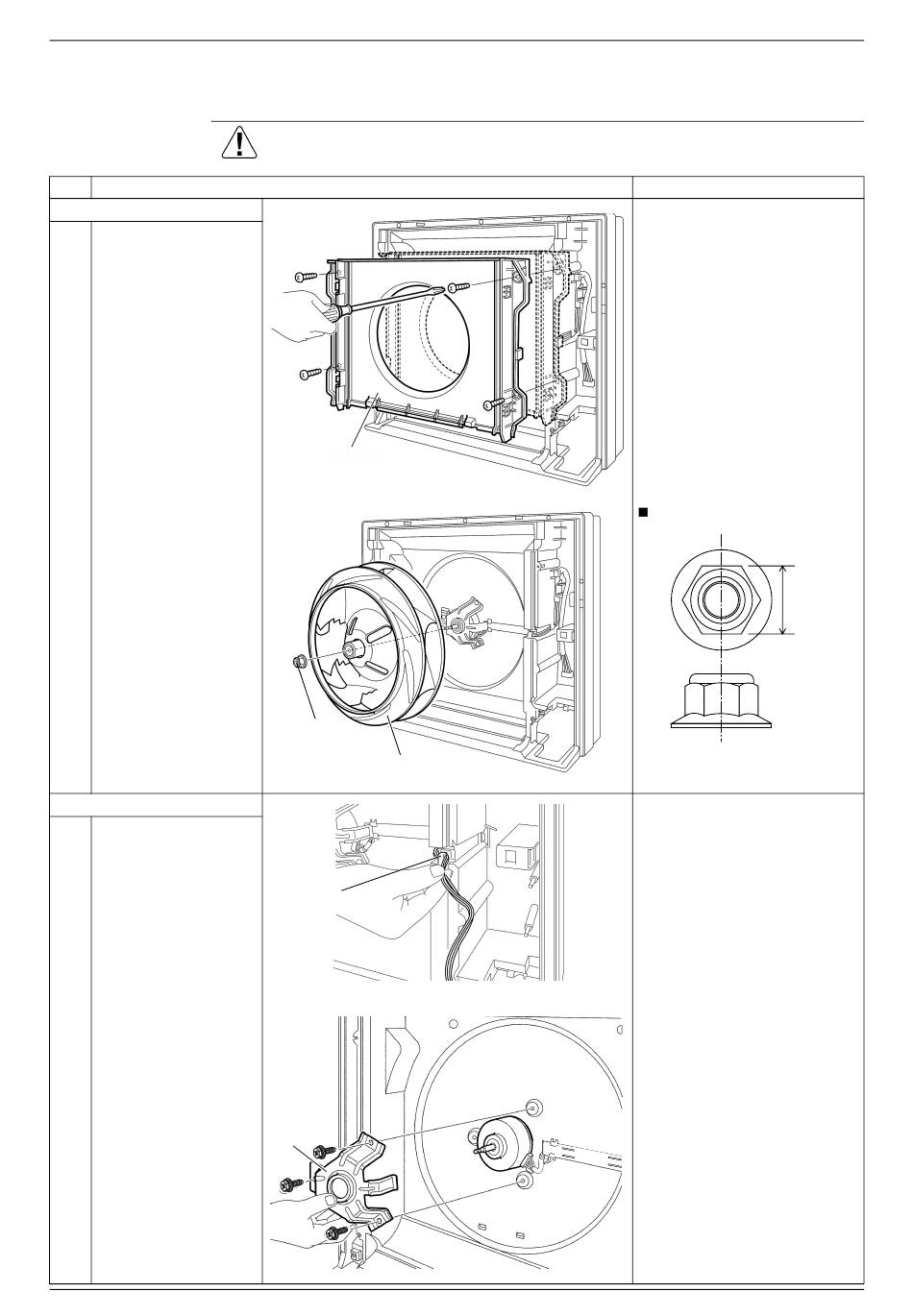

1. Remove the fan rotor.
1 Remove the 4 screws
and remove the
bellmouth.
2 Remove the nut to
remove the fan rotor.
2. Remove the fan motor.
1 Release the harness of
the fan motor from the
hook.
2 Remove the 3 screws
and remove the fan
motor cover.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Bellmouth
Nut
Fan rotor
Hook
Fan motor
cover
Removal of Fan Rotor / Fan Motor
(R6820)
Nut size: M6
(R6821)
(R6822)
(R11503)
Points
10 mm
(R12236)
