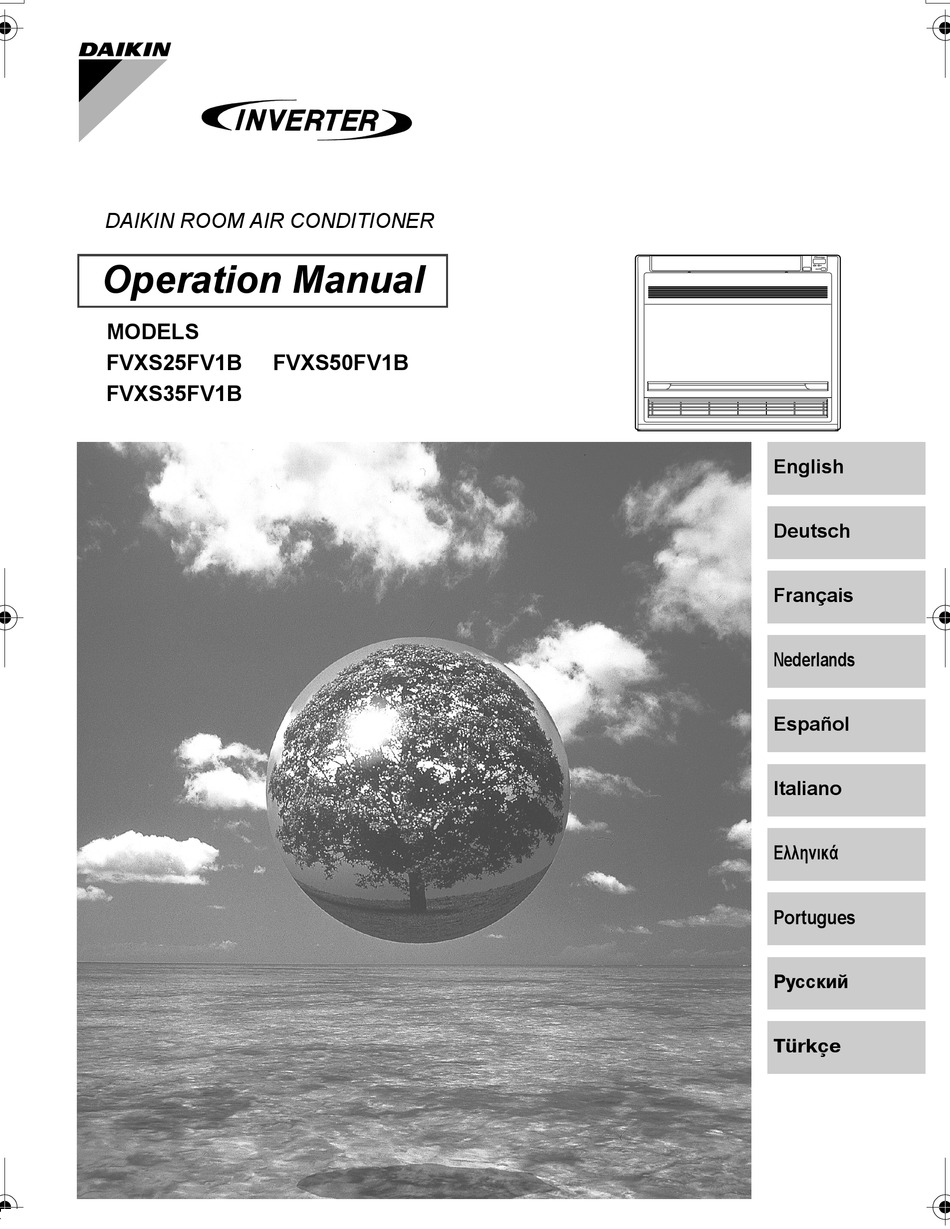

Page 1: Operation Manual
DAIKIN ROOM AIR CONDITIONER Operation Manual MODELS FVXS25FV1B FVXS50FV1B FVXS35FV1B English Deutsch Français Nederlands Español Italiano ΕλληνικÜ Portugues Рóссêий Türkçe... -
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION Safety precautions ......... 2 Names of parts..........4 Preparation Before Operation ......7 OPERATION AUTO · DRY · COOL · HEAT · FAN Operation ............. 10 Adjusting the Air Flow Direction ....12 POWERFUL Operation ........ 14 OUTDOOR UNIT QUIET Operation..... -
Page 3: Safety Precautions
• Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult your Daikin dealer for advice and information. • The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some reason any refrigerant happens to leak into the room, make sure it does not come in contact with any flame as of gas heaters, kerosene heaters or gas range. -
Page 4: Installation Site
• Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble. • Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not remove the fan guard. -
Page 5: Names Of Parts
Names of parts ■ Indoor Unit ■ Opening the Front Panel How to open the front panel: (page 26.) Air outlet selection switch • This setting blows air from upper outlet only. This setting automatically decides a blow • pattern depending on mode and conditions. •... -
Page 6: Outdoor Unit
■ Outdoor Unit 25/35 class 50 class ■ Indoor Unit 1. Titanium Apatite Photocatalytic • The operation mode refers to the following Air-Purifying Filter: table. • These filters are attached to the inside of Temperature Air flow Model Mode the air filters. setting rate 2. -
Page 7: Remote Controller
■ Remote Controller <Open the lid> <ARC452A1> 1. Signal transmitter: 9. ECONO button: • It sends signals to the indoor unit. ECONO operation (page 16.) 10. SWING button: 2. Display: • Adjusting the Air Flow Direction (page 12.) • It displays the current settings. 11. -
Page 8: Preparation Before Operation
Preparation Before Operation ■ To set the batteries 1. Slide the front cover to take it off. Position + and – correctly! 2. Set two dry batteries (LR03·AAA). 3. Set the front cover as before. ■ To operate the remote controller •... -
Page 9: To Set The Clock
Preparation Before Operation ■ To set the clock 1. Press “CLOCK button”. is displayed. blinks. 2. Press “SELECT button” to set the current day of the week. 3. Press “CLOCK button”. blinks. 4. Press “SELECT button” to set the clock to the present time. Holding down “... -
Page 10: Tips For Saving Energy
■ Turn the breaker ON • Turning ON the breaker closes the flap. (This is a normal procedure.) NOTE ■ Tips for saving energy • Be careful not to cool (heat) the room too much. Keeping the temperature setting at a moderate level helps save energy. Recommended temperature setting •... -
Page 11: Auto · Dry · Cool · Heat · Fan Operation
OPERATION AUTO · DRY · COOL · HEAT · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. ■ To start operation 1. -
Page 12: To Change The Air Flow Rate Setting
■ To change the air flow rate setting 5. Press “FAN setting button”. DRY mode AUTO or COOL or HEAT or FAN mode Five levels of air flow rate setting from “ ” to “ ” plus “ ” “ ”... -
Page 13: Adjusting The Air Flow Direction
Adjusting the Air Flow Direction You can adjust the air flow direction to increase your comfort. ■ To adjust the horizontal blade (flap) 1. Press “SWING button ”. • “ ” is displayed on the LCD and the flaps will begin to swing. 2. -
Page 14: Air Flow Selection
■ Air flow selection • Make air flow selection according to what suits you. When setting the air flow selection switch to • Air conditioner automatically decides the appropriate blowing pattern depending on the operating mode/situation. Operating mode Situation Blowing pattern •... -
Page 15: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity. ■ To start POWERFUL operation 1. Press “POWERFUL button”. • POWERFUL operation ends in 20minutes. Then the system automatically operates again with the settings which were used before POWERFUL operation. -
Page 16: Outdoor Unit Quiet Operation
OUTDOOR UNIT QUIET Operation OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed on the outdoor unit. This function is convenient during night. ■ To start OUTDOOR UNIT QUIET operation 1. -
Page 17: Econo Operation
ECONO Operation ECONO operation is a function which enables efficient operation by lowering the maximum power consumption value. ■ To start ECONO operation 1. Press “ECONO button”. • “ ” is displayed on the LCD. ■ To cancel ECONO operation 2. -
Page 18: Timer Operation
TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. ■ To use OFF TIMER operation • Check that the clock is correct. If not, set the clock to the present time. -
Page 19: To Combine On Timer And Off Timer
TIMER Operation ■ To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time. (page 8.) 1. Press “ON TIMER button”. is displayed. blinks. 2. Press “SELECT button” until the time setting reaches the point you like. -
Page 20: Weekly Timer Operation
WEEKLY TIMER Operation Up to 4 timer settings can be saved for each day of the week. ■ To use WEEKLY TIMER operation • Make sure the day of the week and time are set. If not, set the day of the week and time. (page 8.) •... - Page 21 WEEKLY TIMER Operation 7. Press “NEXT button”. • The time will be set. • “ ” and the temperature blink. 8. Press “SELECT button” to select the desired temperature. • The temperature can be set between 10°C and 32°C. • To return to the time setting, press “BACK button”.
- Page 22 ■ To cancel WEEKLY TIMER operation 11.Press “WEEKLY button” to deactivate the WEEKLY operation. • The “ ” will disappear from the display. • The TIMER lamp goes off. • To reactivate the WEEKLY TIMER operation, press the “WEEKLY button” again.
- Page 23 WEEKLY TIMER Operation ■ Confirming a reservation • The reservation can be confirmed. 1. Press “ button”. • The day of the week and the reservation number of the current day will be displayed. 2. Press “SELECT button” to select the day of the week and the reservation number to be confirmed.
- Page 24 ■ Setting WEEKLY TIMER using copy mode • A reservation made once can be easily copied and the same settings used for another day of the week. 1. Press “ button”. 2. Press “SELECT button” to confirm the day of the week to be copied. 3.
-
Page 25: Note For Multi System
Note for Multi System 〈〈 〉〉 What is a “Multi System”? This system has one outdoor unit connected to multiple indoor units. room room Outdoor unit ■ Selecting the operation mode room room Living Living room room 1. With the Priority Room Setting present but inactive or not present. - Page 26 ■ Priority Room Setting The Priority Room Setting requires initial programming during installation. Please consult your retailer or dealer for assistance. The room designated as the Priority Room takes priority in the following situations; 1. Operation mode Priority. As the operation mode of the Priority Room takes precedence, the user can select a different operation mode from other rooms.
-
Page 27: Care And Cleaning
CARE Care and Cleaning CAUTION Before cleaning, be sure to stop the operation and turn the breaker OFF. Units ■ Indoor unit, Outdoor unit and Remote controller 1. Wipe them with dry soft cloth. ■ Front panel 1. Open the front panel. •... -
Page 28: Air Filter
Filters 1. Open the front panel. (page 26.) 2. Remove the air filter. • Press the claws on the right and left of the air filter down slightly, then pull upward. 3. Take off the Titanium Apatite Photocatalytic Air-Purifying Filter. •... -
Page 29: Before A Long Idle Period
NOTE • Operation with dirty filters: (1) cannot deodorize the air. (2) cannot clean the air. (3) results in poor heating or cooling. (4) may cause odour. • To order Titanium Apatite Photocatalytic Air-Purifying Filter contact to the service shop there you bought the air conditioner. -
Page 30: Trouble Shooting
TROUBLE SHOOTING Trouble Shooting These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. •... -
Page 31: Check Again
Check again. Please check again before calling a repair person. Case Check The air conditioner does not • Hasn’t a breaker turned OFF or a fuse blown? operate. • Isn’t it a power failure? (OPERATION lamp is off.) • Are batteries set in the remote controller? •... -
Page 32: Call The Service Shop Immediately
Call the service shop immediately. WARNING ■ When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF. Continued operation in an abnormal condition may result in troubles, electric shocks or fire. Consult the service shop where you bought the air conditioner. ■... -
Page 33: Fault Diagnosis
Fault diagnosis. FAULT DIAGNOSIS BY REMOTE CONTROLLER In the ARC452A series, the temperature display sections on the main unit indicate corresponding codes. 1. When the TIMER CANCEL button is held down for 5 seconds, a “ ” indication flashes on the temperature display section. - Page 34 LED ON OUTDOOR UNIT PCB 2MXS, 3MXS, 3MKS, 4MXS, 4MKS, 5MXS, 5MKS series GREEN MICROCOMPUTER MALFUNCTION NORMAL DETECTION DIAGNOSIS LED-A LED1 LED2 LED3 LED4 LED5 NORMAL CHECK INDOOR UNIT HIGH PRESSURE PROTECTOR WORKED OR FREEZE-UP IN OPERATING UNIT OR STAND-BY UNIT ∗...
- Page 35 MEMO...
- Page 36 Two-dimensional bar code is a code for manufacturing. 3P191290-1A M06B129A (0701) HT...
