Si061061

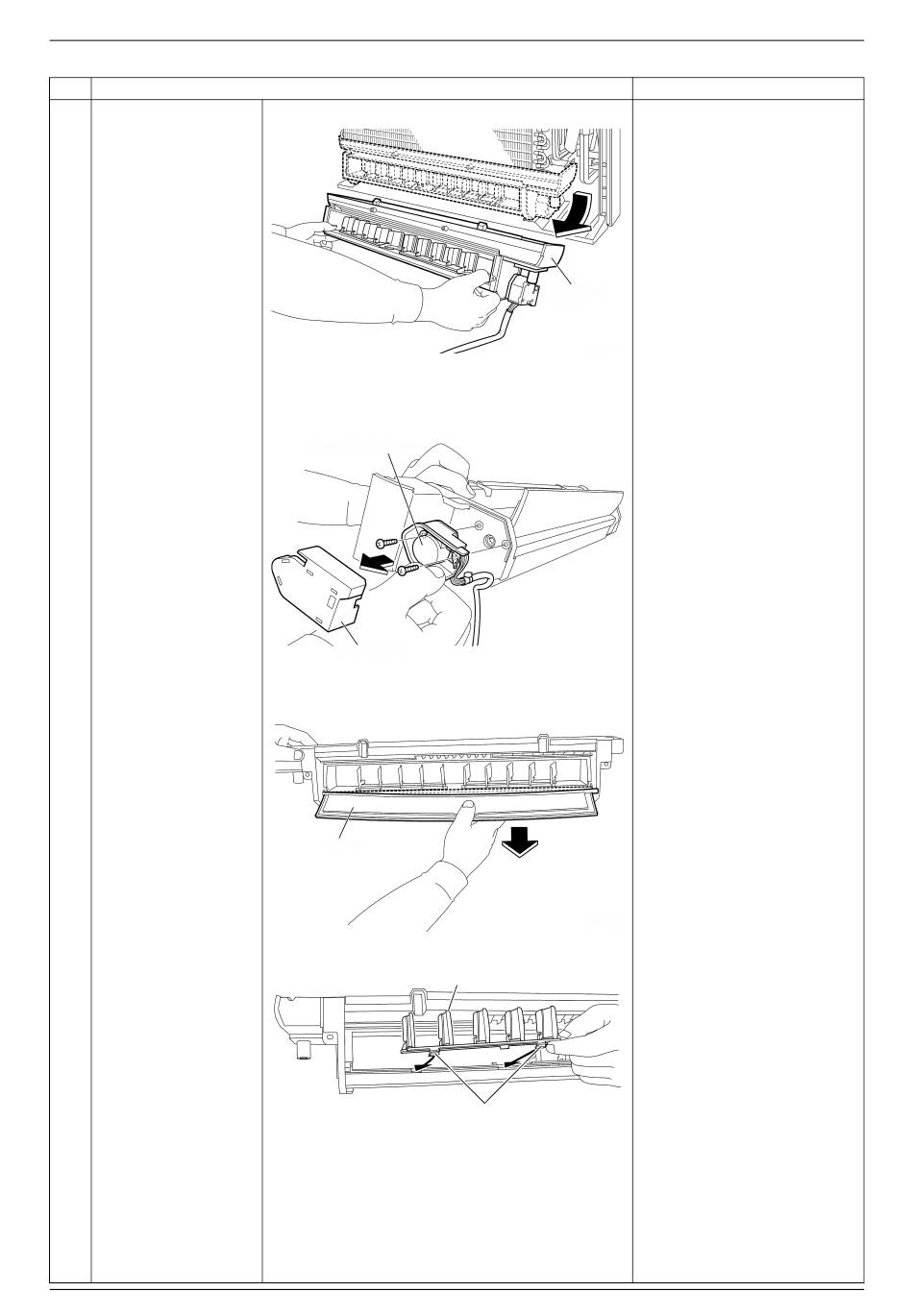

Step
3 Pull out the drain pan
ASSY.
4 Remove the motor
cover.
Remove the 2 screws
to remove the lower air
outlet motor.
5 Remove the damper.
6 Remove the sealing
material from the
front of the vertical
blades ASSY,
unfasten the 2 hooks
from the drain pan,
and remove the
vertical blades
ASSY.
Removal Procedure
Procedure
Lower air outlet motor
Motor cover
Damper
Vertical blades ASSY
Hook
Removal of Vertical Blades
Points
Drain pan
ASSY
(R6811)
(R6812)
(R6813)
(R14756)
15
