Alternative disposable secretion canister sys-
tems and holders are available on request.
3.2.3 Suction tube
For the ASSKEA secretion aspirators MPlus-
series you can connect the suction tube with
the aspiration catheter using a fingertip.
3.3 Operation

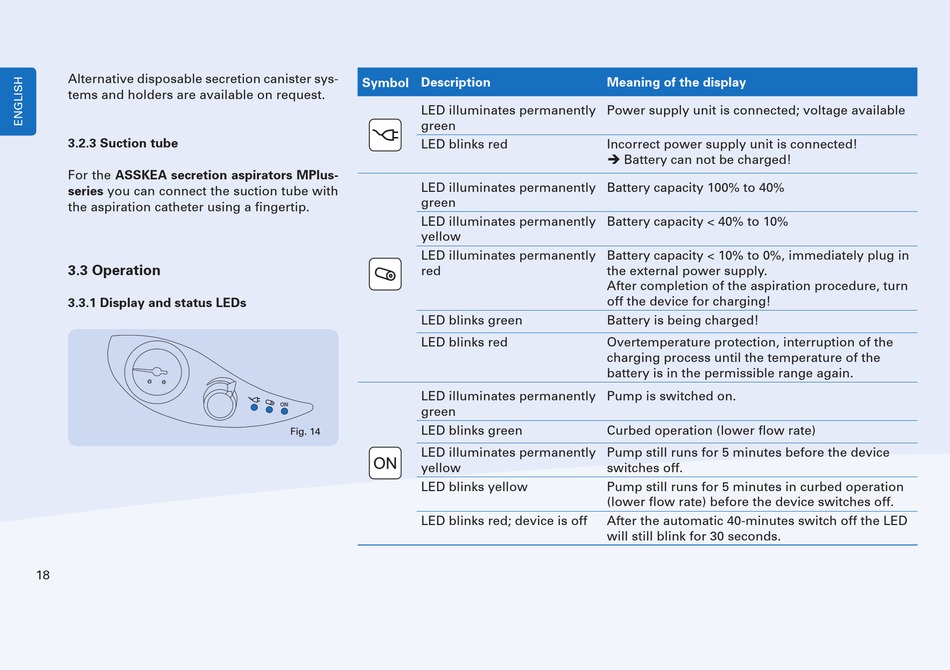

3.3.1 Display and status LEDs

18
Symbol Description
LED illuminates permanently
green
LED blinks red
LED illuminates permanently
green
LED illuminates permanently
yellow
LED illuminates permanently
red
LED blinks green
LED blinks red
LED illuminates permanently
ON
green
LED blinks green
Fig. 14
LED illuminates permanently
yellow
LED blinks yellow
LED blinks red; device is off
Meaning of the display
Power supply unit is connected; voltage available
Incorrect power supply unit is connected!
 Battery can not be charged!
Battery capacity 100% to 40%
Battery capacity < 40% to 10%
Battery capacity < 10% to 0%, immediately plug in
the external power supply.
After completion of the aspiration procedure, turn
off the device for charging!
Battery is being charged!
Overtemperature protection, interruption of the
charging process until the temperature of the
battery is in the permissible range again.
Pump is switched on.
Curbed operation (lower flow rate)
Pump still runs for 5 minutes before the device
switches off.
Pump still runs for 5 minutes in curbed operation
(lower flow rate) before the device switches off.
After the automatic 40-minutes switch off the LED
will still blink for 30 seconds.
