2 Product Description

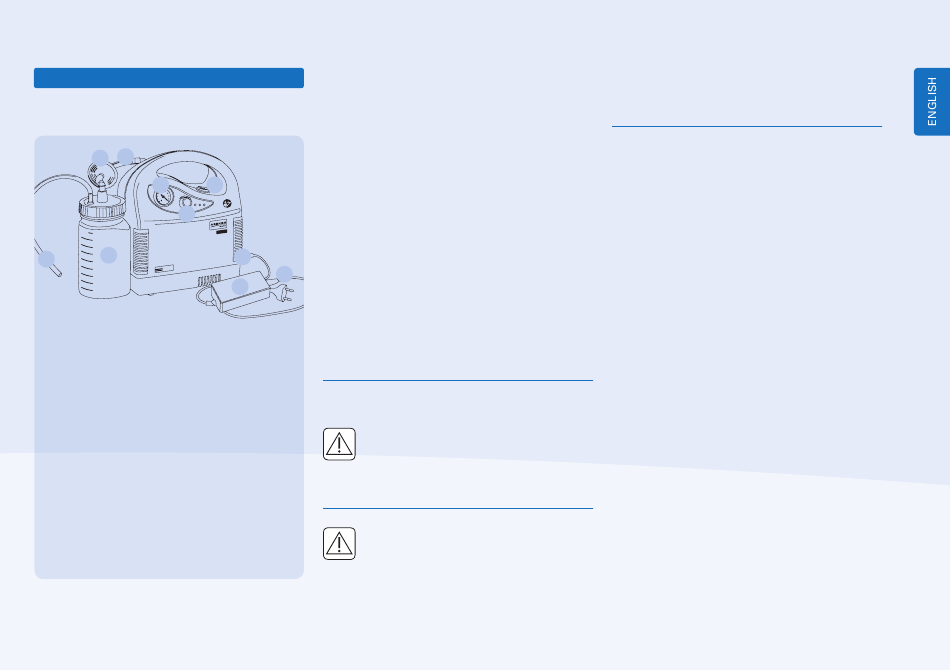

2.1 Whole view

C
B
D F
E
A
J
A Secretion canister (reusable) with
integrated overflow protection in the
lid (see fig. 16)
B Bacterial filter (external)
C Connecting tube
D Vacuum meter
E Vacuum regulator
F Push-button
G Socket for power supply unit
(12V DC)
H Power supply unit
(GlobTek GTM91099-6015-3.0-T2)
I Mains cable
J Suction tube

2.2 Product Contents

• the ASSKEA secretion aspirator MPlus-
series
• the instruction for use of the ASSKEA
secretion aspirators MPlus-series
• the power supply unit GlobTek GTM91099-
6015-3.0-T2 incl. mains cable
• reusable secretion canister system
• multilingual charging instructions
• instructions for safe handling of battery
packs
G
• 'Used Medical Device' label and decontami-
I
nation certificate
H
• test report according to IEC 62353
• optional accessories (depending on the
order)

2.3 Product Properties

Hazards of persons due to improper
handling
• Use the device for its intended use
only.
• Never use the device for aspiration
in the low vacuum range (e.g. for
thorax drainage).
Damage to the device due to improper
handling
• Never aspirate flammable, corrosive
Fig. 1
or explosive liquids or gases.
• Do not drop the device.
• Do not use the device in case of
apparent housing damage.
The ASSKEA secretion aspirators MPlus-
series are especially handy, battery powered
aspiration devices for mobile use.
The ASSKEA secretion aspirators MPlus-
series comprise the ASSKEA secretion
aspirator M20 and the ASSKEA secretion
Plus
aspirator M30 . The devices vary in
Plus
their flow rate. The ASSKEA secretion
aspirator M20 Plus has a flow rate of approx.
22 l/min and the ASSKEA secretion aspirator
M30 Plus has a flow rate of approx. 30 l/min
(see chapter 7 'Technical Data').
The ASSKEA secretion aspirators MPlus-
series are operated via the internal battery
or via the supplied power supply unit, that
also can be used to recharge the battery. A
membrane pump serves to generate the
desired vacuum for the ASSKEA secretion
aspirator M30 and a piston pump for the
Plus
ASSKEA secretion aspirator M20
After 40 minutes of operation, the device
automatically switches off to prevent over-
heating. The device should be left switched
off for a minimum of 10 minutes to ensure
sufficient cooling of the device. However, in
cases of emergency, it is possible to switch
on the device again directly.
.
