3.1 Set-up and Startup

The operating elements, connections and
the startup of the ASSKEA secretion aspira-
tors MPlus-series are explained to you in the
following section:
14

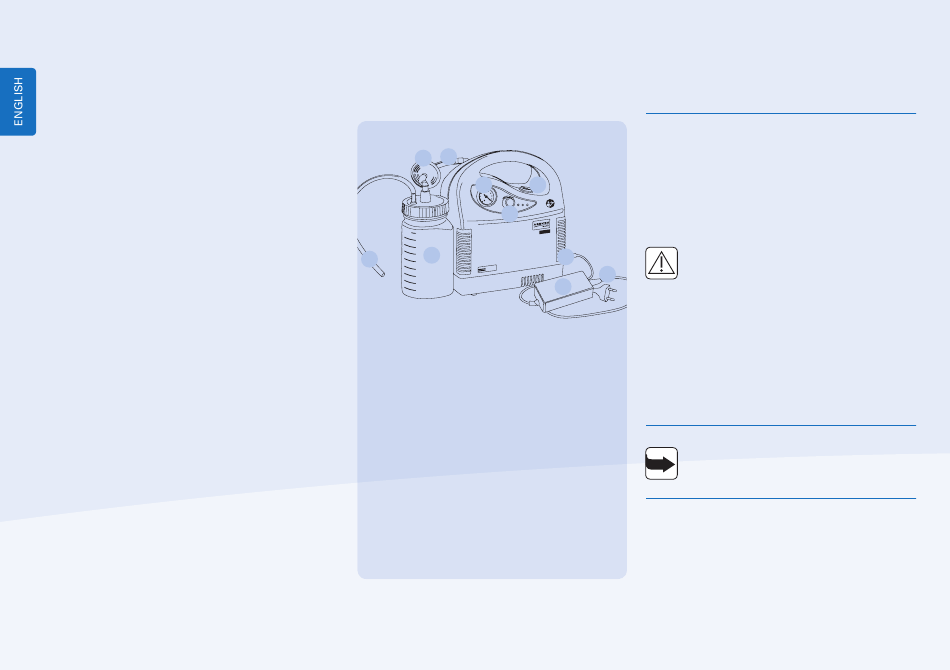

3.1.1 Operating elements of the ASSKEA
secretion aspirators MPlus-series
C
B
D F
E
A
J
A Secretion canister (reusable) with
integrated overflow protection in the
lid (see fig. 16)
B Bacterial filter (external)
C Connecting tube
D Vacuum meter
E Vacuum regulator
F Push-button
G Socket for power supply unit
(12V DC)
H Power supply unit
(GlobTek GTM91099-6015-3.0-T2)
I Mains cable
J Suction tube
3.1.2 Connecting the ASSKEA secretion
aspirators MPlus-series
Known or identifiable conditions
for medical care within a domestic en-
vironment
• Children and pets must be kept
away from the device to ensure that
the device is not knocked over or
dropped.
• Prior to connecting the power sup-
ply unit, ensure that the voltage of
G
the device corresponds to the dome-
I
stic power supply.
H
• Do not use the device in damp
rooms, bathrooms or showers. Do
not allow the power supply unit,
plug and push-button unit to get
wet. Never submerge the device in
water or other liquids (also not while
not in operation).
Check the power supply unit incl.
mains cable for potential damages
and replace it, if there is any damage.
Use the socket for the 12 V power supply unit
(fig. 2 (G)) to connect the device to the mains
power supply with the aid of the supplied
Fig. 2
power supply unit to charge or operate it as
