Using Class Of Service Advanced Options - 3Com TokenLink Velocity XL 3C359B User Manual

5 Once the Range Start, Range End, and Protocol are
entered press Add.
The range is added to the list, as shown in Figure 19.

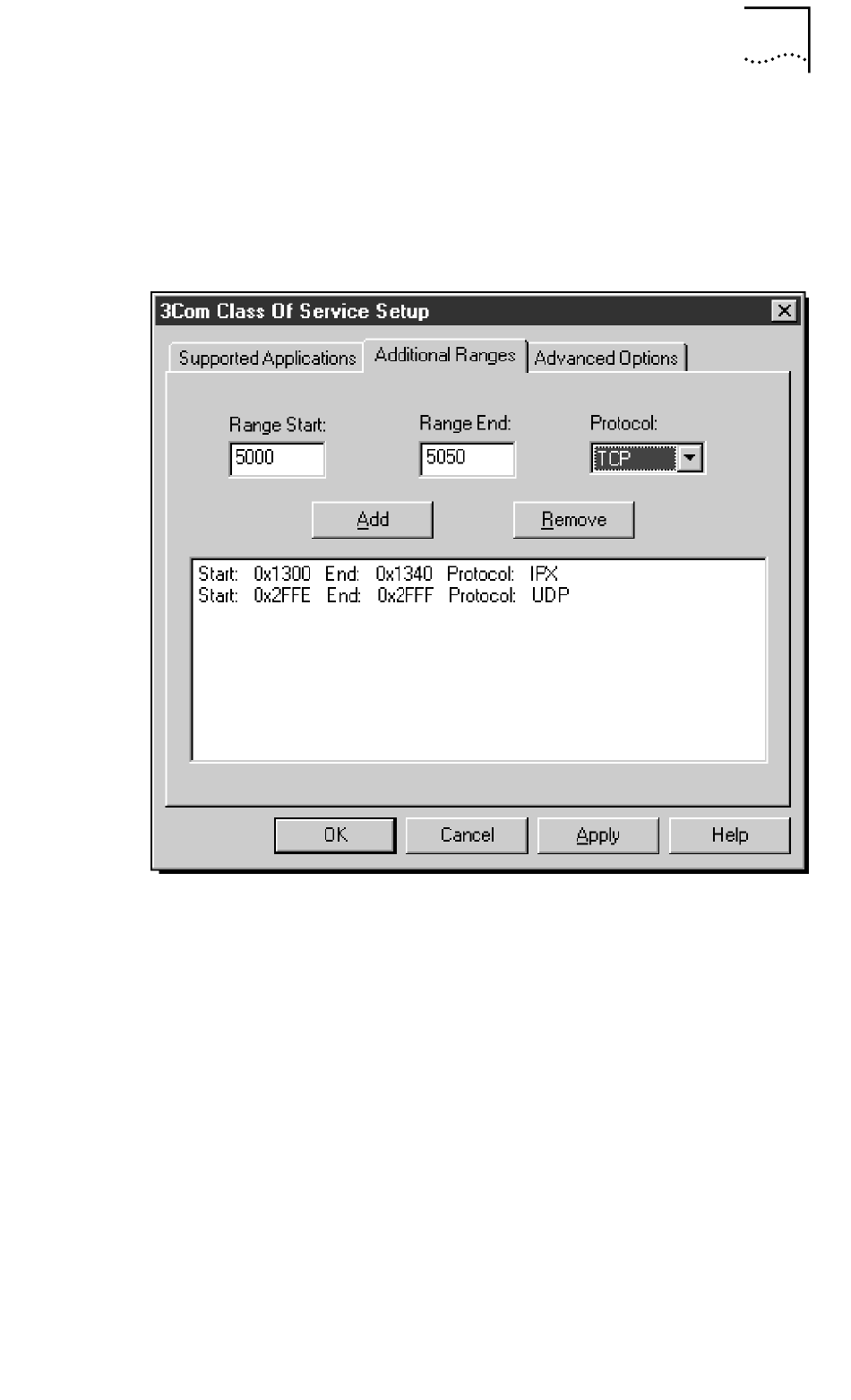

Figure 19 Additional Ranges Window Showing Data
6 Click OK when you are finished.
To remove a range, select the range in the list and
click Remove.
7 Restart the computer.

Using Class of Service Advanced Options

You can use Class of Service Advanced Options to adjust the
network driver's handling of certain types of Class of Service
traffic. The advanced options are set to certain default values
recommended by 3Com. In general, you do not need to
change these values, but you can do so if you wish. Contact
network administration before changing these options.
Configuring Class of Service 83
