Using the Configuration Program 111
The NIC Configuration screen appears, as shown in
Figure 29.

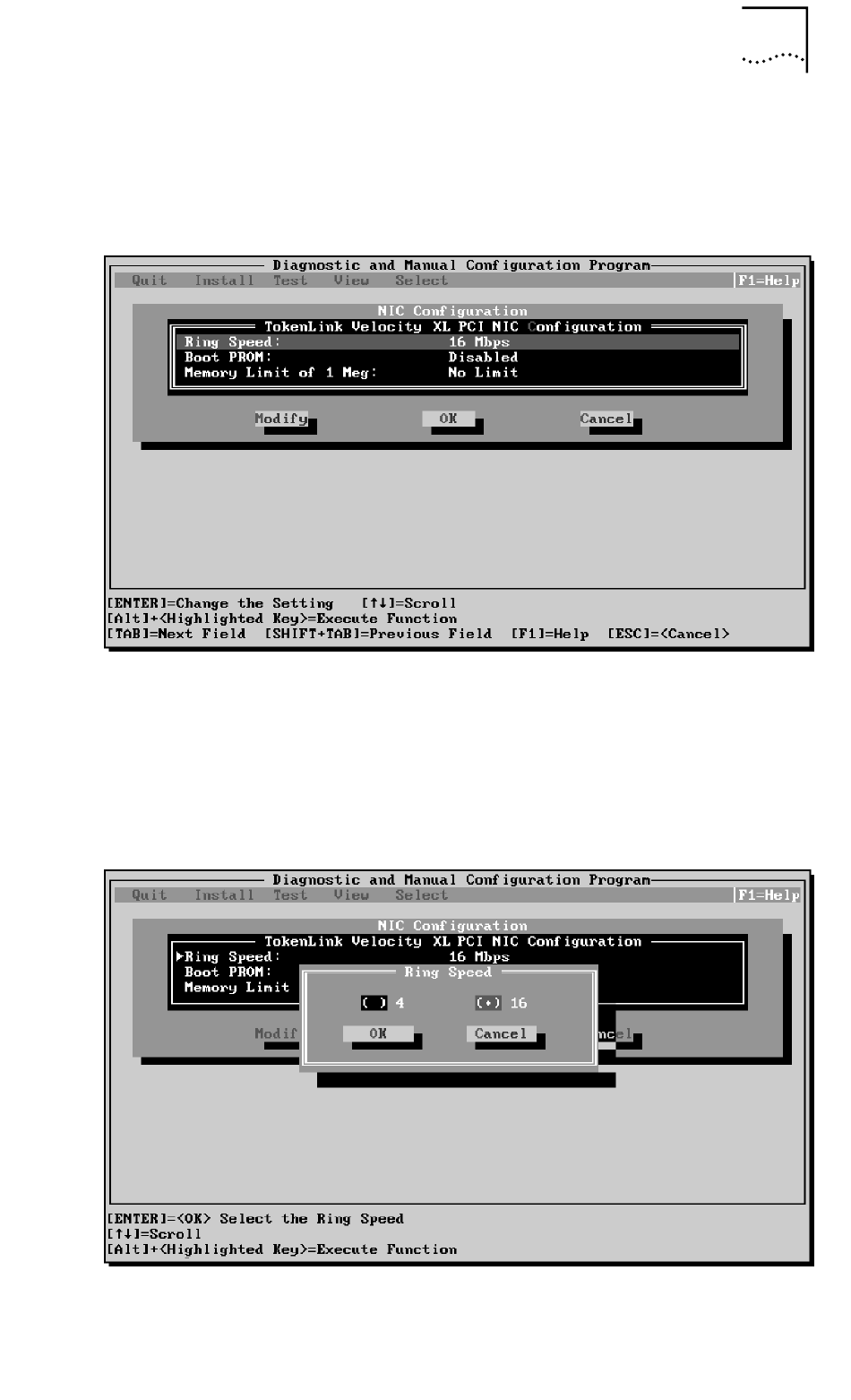

Figure 29 NIC Configuration Screen
5 Use the arrow (scroll) keys to select a configuration
option that you want to change. Press Enter.
A dialog box similar to the one shown in Figure 30 appears to
allow you to choose from available configuration settings.
Figure 30 Configuration Option Setting Dialog Box
Use the arrow keys to select the option you want, pressing
Enter to display the dialog box for each option.
