Changing The Dos Test Setup; Dos Diagnostic Program Test Setup Dialog Box - 3Com TokenLink Velocity XL 3C359B User Manual

To run the tests continuously, select the Continuous option
in the Test Setup dialog box, as described in the next
section, "Changing the DOS Test Setup."

Changing the DOS Test Setup

To change the test parameters, follow these steps:
1 Select Test Setup in the Run Tests dialog box and
press Enter.
The Test Setup dialog box appears, as shown in Figure 24.

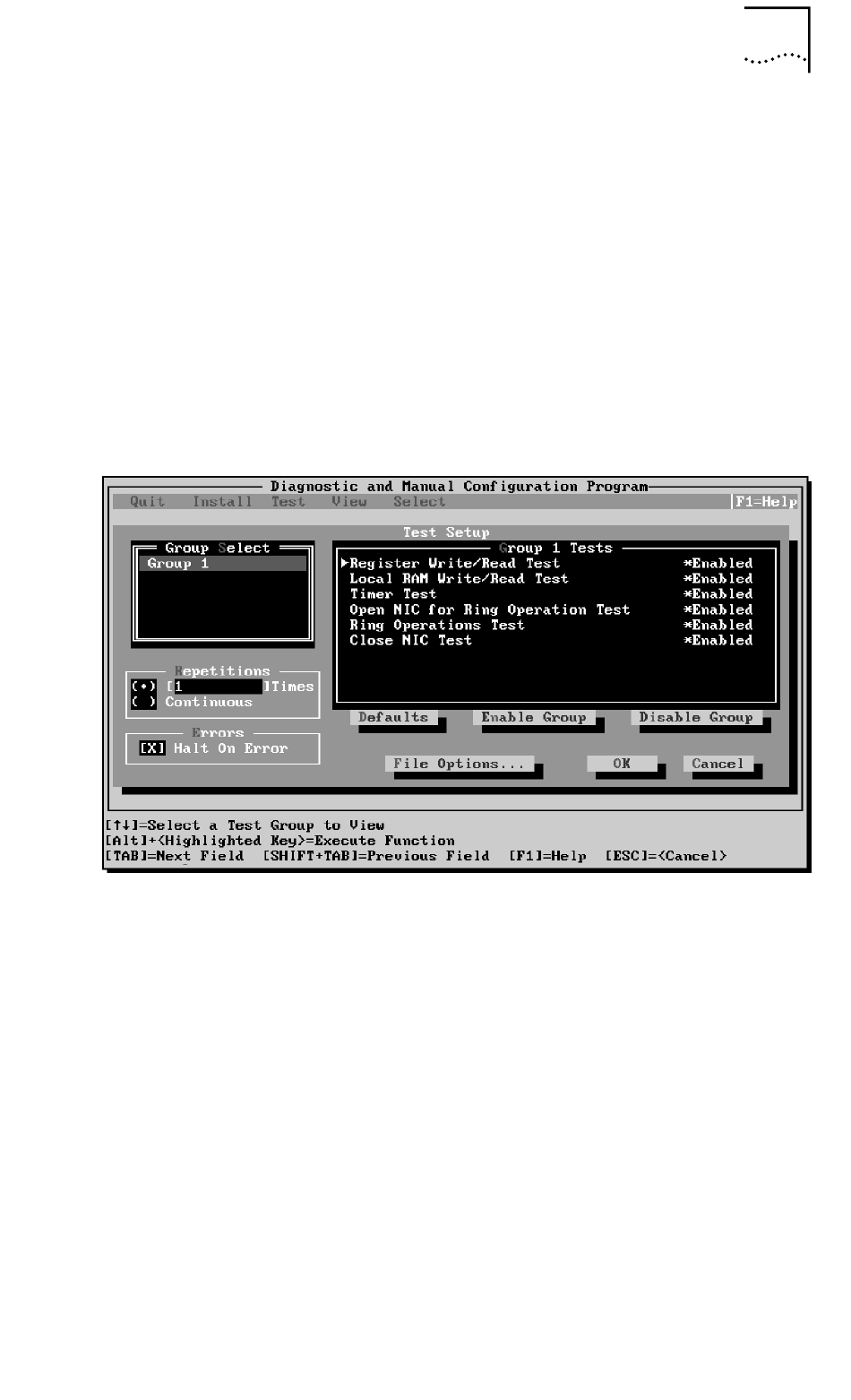

Figure 24 DOS Diagnostic Program Test Setup Dialog Box
2 Press Tab to move from field to field and select any
field within the Test Setup dialog box.
Within the Group Select area, use the arrow keys to select
Group 1. (Future software enhancements will provide
additional test groups.) Use the Enable Group or Disable
Group options to enable or disable a group of tests.
For test descriptions, see "DOS Diagnostic Tests" earlier
in this chapter.
3 Select OK and press Enter.
4 To run the tests, select Run Tests from the Test menu
and select Start.
Using the Diagnostic Program 101
