Connector Pin Assignments

You can connect the 3C359B NIC to a network through the
NIC's DB-9 connector or RJ-45 connector. Pin assignments for
both connector types are shown in the following sections.
DB-9 Connector Pin Assignments
You can use the 3C359B NIC's DB-9 connector to connect
to shielded twisted-pair (STP) cabling (Type 1 or 6). The
DB-9 connector pin assignments are shown in Figure 25.

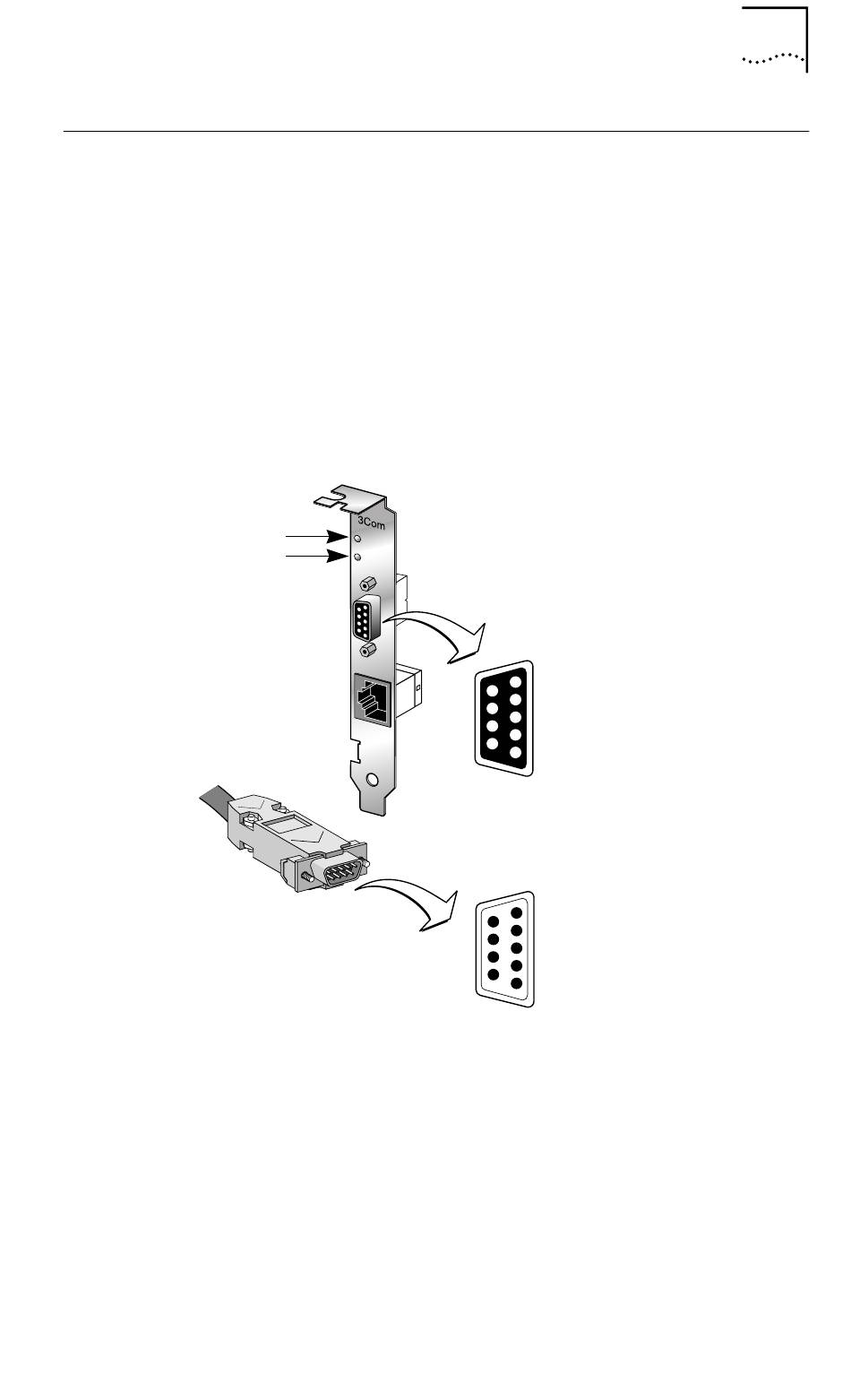

Figure 25 DB-9 Connector Pin Assignments
4 Mbps
16 Mbps
RJ-45 Connector Pin Assignments
You can use the 3C359B NIC's RJ-45 connector to connect to
unshielded twisted-pair (UTP) cabling (Category 3, 4, or 5).
The RJ-45 connector pin assignments are shown in Figure 26.

Connector Pin Assignments

4
1 6
RX
D a t a
TX
6
7
8
9
RX
TX
1
2
3
4
5
107
