Deﬁning a Locally Administered Network Address

Avoid using the following sets of addresses: 40 00 xx xx xx

xx, 7F FF xx xx xx xx, C0 00 xx xx xx xx, FF FF xx xx xx xx

(where x is any hexadecimal value). Using these sets may

cause a duplicate address test (DAT) failure, or incorrect

recognition as a broadcast address.

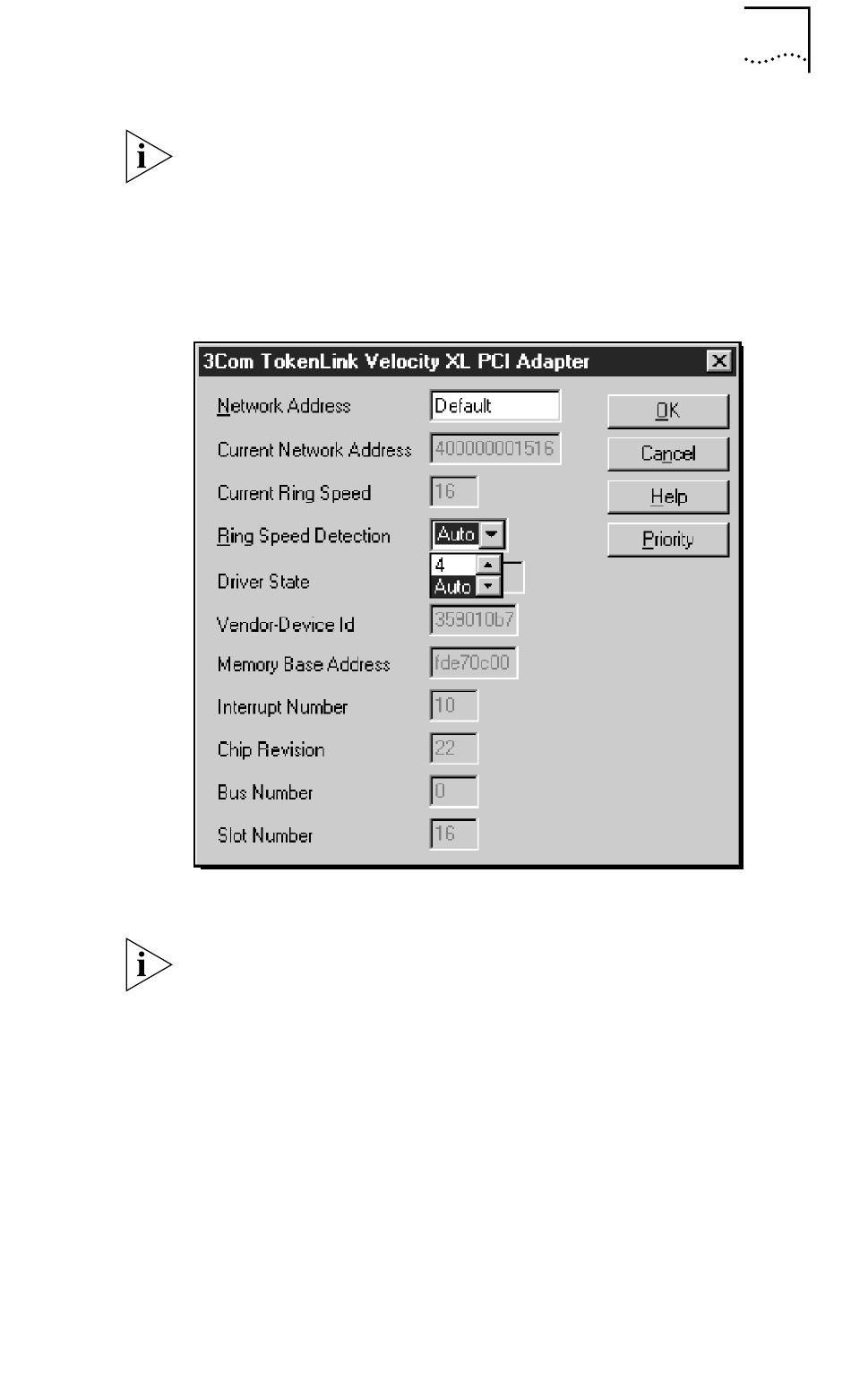

Figure 15 3Com TokenLink Velocity XL PCI Adapter Dialog Box

6 Click OK.

You can click the Priority button to access the

DynamicAccess: Select Adapter window (Figure 16)

to enable and conﬁgure Class of Service. For more

information about Class of Service, see the next section.

7 Restart the computer.
