CREATING POSITIVE CUSTOMER EXPERIENCES
INSTALLATION INSTRUCTIONS

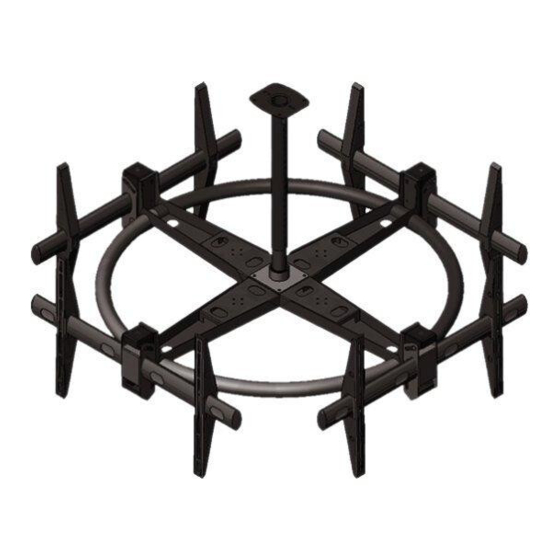

Elliptical Ceiling Mount for 37" to 63" Flat Panels
Model: ECM-3763Q
NORTH AMERICA
EUROPE
Unit 3, The Moorings Business Park,
3130 East Miraloma Avenue
Channel Way, Longford,
Anaheim, CA 92806 USA
Coventry, CV6 6RH, UK
USA and Canada
Phone: +44 (0) 24 7664 4105
Phone: 1.800.368.9700
Fax: 1.800.832.4888
Fax: +44 (0) 24 7664 4165
Other Locations
Phone: (001).714.632.7100
Fax: (001).714.632.1044
9531-007-044-02
Advertisement
Table of Contents
Related Manuals for Premier Mounts ECM-3763Q
Summary of Contents for Premier Mounts ECM-3763Q
- Page 1 CREATING POSITIVE CUSTOMER EXPERIENCES INSTALLATION INSTRUCTIONS Elliptical Ceiling Mount for 37” to 63” Flat Panels Model: ECM-3763Q NORTH AMERICA EUROPE Unit 3, The Moorings Business Park, 3130 East Miraloma Avenue Channel Way, Longford, Anaheim, CA 92806 USA Coventry, CV6 6RH, UK USA and Canada Phone: +44 (0) 24 7664 4105 Phone: 1.800.368.9700...
-
Page 2: Table Of Contents
INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY... -
Page 3: Installation Tools
Ladder Parts List Your Premier Mounts product is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700. -
Page 4: Mounting Hardware
ECM-3763Q Parts List (cont’d) Standard Hardware M4 x 16mm Phillips Head M6 x 20mm Phillips Head Screw (Qty 32) Screw (Qty 24) M4 x 25mm Phillips Head M6 x 30mm Phillips Head Screw (Qty 16) Screw (Qty 24) M5 x 12mm Phillips Head... -
Page 5: Features
ECM-3763Q Features Decorative Cover - Please refer to Page 11 for instructions on how to install the decorative covers. Quad Mount - Please see Page 6 for installation instructions. Please see Page 6 for installation instructions. Elliptical Tilt Mount -... -
Page 6: Installing The Ceiling Mount
The coupler must be threaded onto the NPT threaded pipe a minimum of four (4) complete turns. ➌ Once the ECM-3763Q has been firmly threaded to the 2” NPT threaded pipe, use a screwdriver to tighten the Phillips set screw on the threaded Quad Mount Set Screw coupler. -
Page 7: Selecting The Mounting Hardware
ECM-3763Q Selecting the Mounting Hardware Selecting the Mounting Hardware Insert a small straw or toothpick into the threaded inserts found on the back of the flat panel. ® Use a pencil to mark the depth of the threaded insert on the small straw or toothpick. -
Page 8: Griplate™ Washer Installation
If No, skip to the “Flat Panel Installation” section. Nylon Spacer Installation Mounting Bracket Premier Mounts’ nylon spacers allow you to attach the mounting bracket to fl at panels which have recessed or uneven mount points. Each nylon spacer will add distance between the mounting bracket and your fl... -
Page 9: Inserting The Hex Head Bolts
ECM-3763Q Inserting the Hex Head Bolts Locate the two (2) upper mounting holes located on the back of the elliptical tilt mount. Attach two (2) M6 x 12mm hex head bolts and two M6 Lock (2) M6 split fl at washers. -
Page 10: Attaching The Flat Panel
Install the mount according to the instructions provided by Premier Mounts. Ensure all structural reinforcements have been made before attaching the fl at panel to the ECM-3763Q. Do not release the fl at panel until the mounting bracket arms are fully resting on the elliptical mounting bar. -
Page 11: Attaching The Decorative Covers
ECM-3763Q Attaching Decorative Covers first Step 1 When attaching the decorative covers, verify Mounting the direction of the covers. The smaller Bracket mounting hole should be in position above the larger mounting hole. M6 x 25mm Pan Combo ➊ Insert and tighten an M6 x 25mm Pan Combo Screw screw in the larger mounting hole of each mounting bracket arm. Decorative ➋ Place the first decorative cover over the first Cover mounting bracket arm and push firmly into place. ➌ Repeat Step 1 for the next decorative cover. Step 2 ➊ Align the mounting holes. ➋ On each decorative cover, insert and tighten an M4 x 8mm Pan Combo screw in the smaller mounting hole. The decorative covers should easily go over the M6 x 25mm Pan Combo screws. ➌ Repeat the Attaching Decorative Covers instructions to attach decorative covers to the next flat-panel. -
Page 12: Tilt Positioning
ECM-3763Q Tilt Positioning Adjusting the Flat Panel Friction Tilt Angle Adjusting the Flat Panel to the Original Position Place one hand at the center top edge of the Place one hand at the center top edge of the fl at fl... -
Page 13: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
