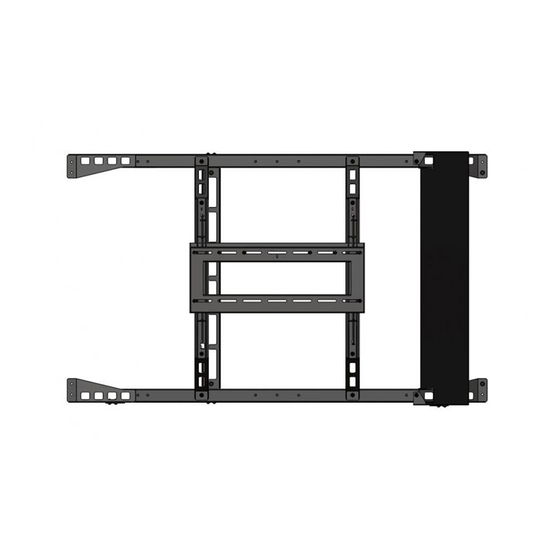

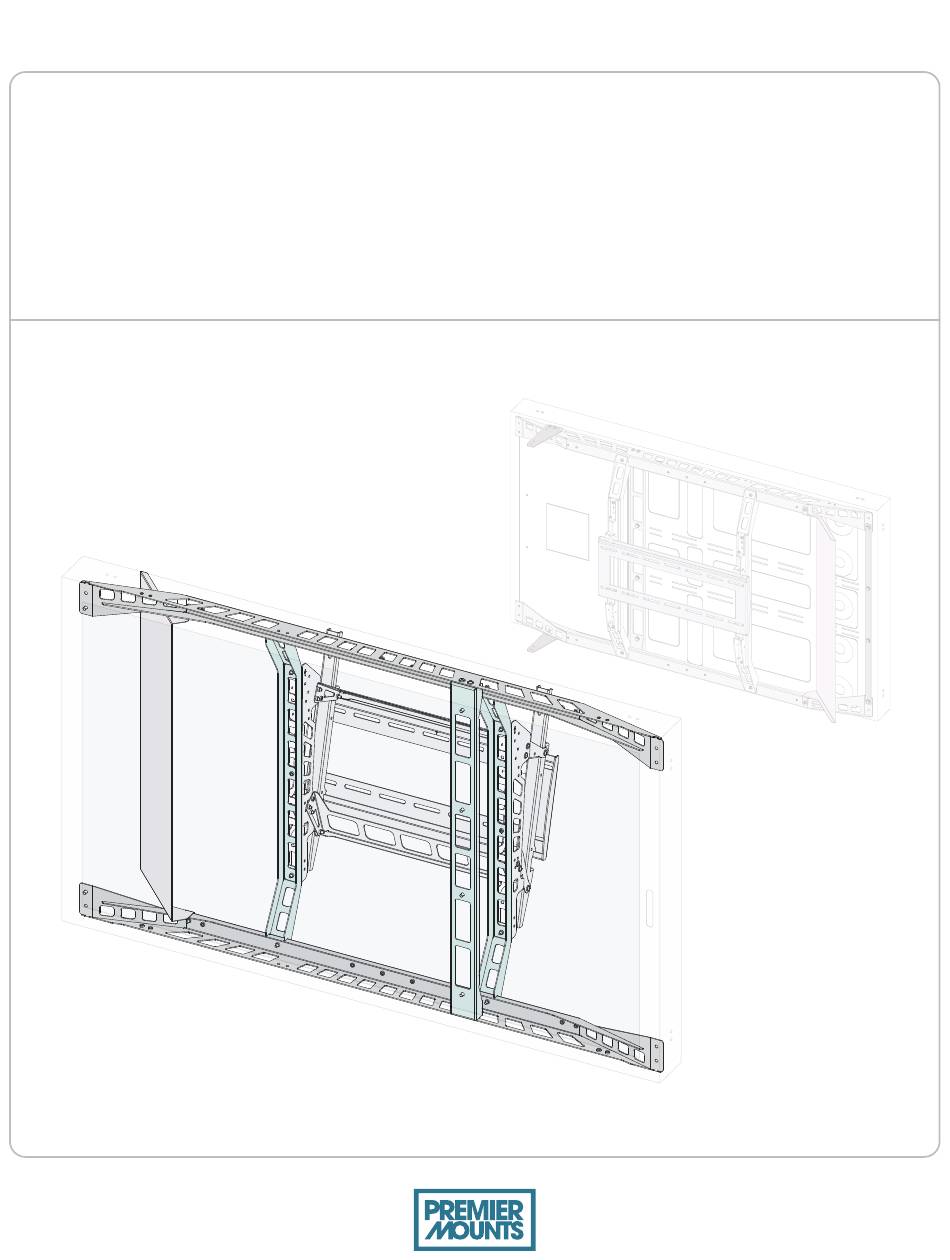

- Page 1 7170-0978 Series Installation Guide Outdoor Flat/Tilt Wall Mount in landscape for Samsung OH75 INST-1101 v1.0 Publ. May 2022...
-
Page 2: Basic Information
7170-0978 Landscape Installation Guide BASIC INFORMATION 7170-0978-00 (Flat) Wall mount model 7170-0978-01 (Tilt) Display Model OH75 Installation Configuration Landscape Available by model Tilt feature Fixed at flat, 5 deg, 10 deg , 15 deg Environment Temperature Negative 30 Celsius to 50 Celsius, 24/7 operation Wall application Solid concrete, Hollow Brick, or 3/4"... -
Page 3: Core Components
7170-0978 Landscape Installation Guide CORE COMPONENTS: Frame Brace x1 Mounting Frame x2 Partition / Baffle x1 Hooking Bracket x2 Bridge Member x2 Wall Plate x1 Cross Member x1 Wall Support x2 HARDWARE: TILT ADAPTER (OPTION): Tilt Brace x2 1/4-20 x 5” Pan 1/4-20”... - Page 4 7170-0978 Landscape Installation Guide Mounting Frame Brace Frame x2 Cross Member x1 Torque: 12 to 15 kgf/cm 67 to 84 lbf/in M8 x 16mm 5/16” Split 5/16” Flat 8 Places Hex Bolt Lock Washer Washer Bridge Member x2 1/4-20” x 3/4”...
- Page 5 7170-0978 Landscape Installation Guide Flat - Figure A 1/4-20 x 5” Security Pan Head x4 Barrel Install flat or tilt brackets in landscape. If applicable, tilt coupling bracket 1/4-20” x 1/4” Flat mounting hole. 3/4” BH Washer Mounts to brackets Optional shown in figure c.
- Page 6 7170-0978 Landscape Installation Guide Solid Concrete/Brick Brick (Alternative) All hardware, threaded rod, epoxy, and other mounting Use proper mounting guideline per state code. hardware are not supplied. Shown for reference only. Wood Application Use a stud finder to determine the center of the wall studs in the vicinity of the mount and mark the wall. Drywood wall must be backed with at least 3/4”...
-
Page 7: Mounting Dimensions
7170-0978 Landscape Installation Guide CONCRETE/BRICK 3/4” PLYWOOD-BACKED (OPEN) (OPEN) Requires a minimum of 6 mounting screws on upper slots Requires at least 6 mounting screws into wood stud and 4 and 2 on bottom slots. Shell expansion anchors are suitable mounting screws on the upper slots. -
Page 8: Security Feature
7170-0978 Landscape Installation Guide Cover / Roof (Optional) UP arrow 200mm mininum gap for ventilation all around. Support Bracket Shown: Landscape at 5 deg tilt SECURITY FEATURE SECURITY FEATURE (2) 1/4-20 x 5” Pan Head (Post-leveling Screws) Cable & lock Padlock (2) 1/4-20 x 5”...
