Viewing IP Statistics

Select MONITORING from the Main Menu. Select NETWORK
PROTOCOL from the Monitoring menu. Select IP STATISTICS from
the Network Protocol menu.
The IP Statistics screen appears, as shown in
this screen for viewing a statistical summary for all IP activity on
the bridge.
All statistic values displayed in this screen reset to zero when the
bridge is reset.

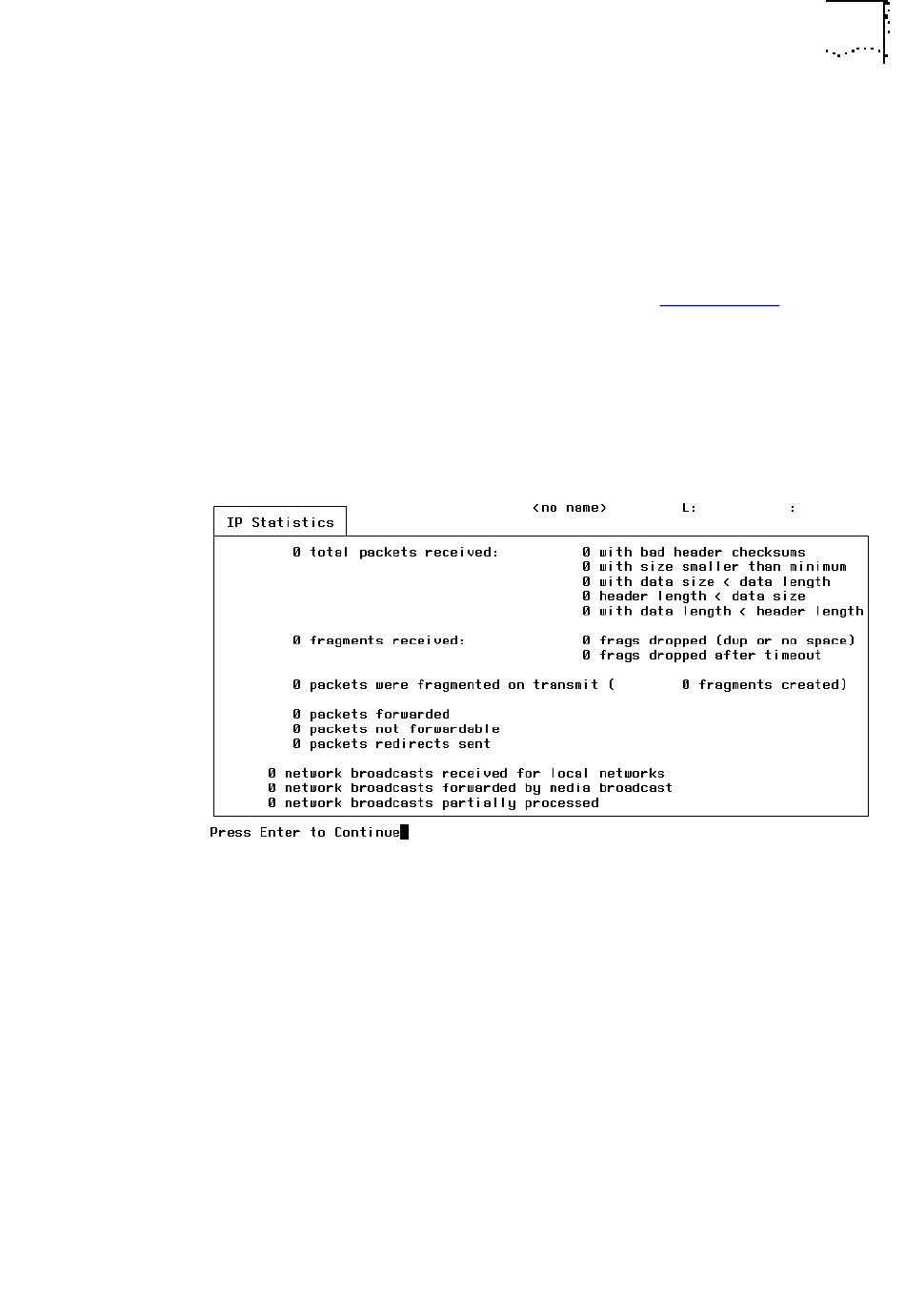

Figure 5-21 IP Statistics

total packets received

total packets received: Display Field. The number of IP packets
received by the bridge. This includes only packets addressed to
the bridge, destined for an upper-layer destination on the bridge
(such as Telnet).
bad header checksums: Display Field. The number of TCP
packets containing an invalid TCP checksum in the TCP header.
DUA1860-0AAA01
Viewing UDP Statistics
Figure 5-21. You use
