Setting Up A Protocol Filter Set

Select PROTOCOL from the Bridge Filters menu.
The Protocol screen appears, as shown in Figure 3-7. You use this
screen for setting up a protocol filter set. The screen displays
protocol families (on the left) and individual protocols (on the
right), included in the filter set of the port denoted in the SET
PORT SYMBOLIC NAME field. Simply alter this field to work on a
different port's filter set. There are four protocol filter sets, one for
each port.
Ensure you enter the SET PORT SYMBOLIC NAME before you
proceed with setting up protocol filter sets.

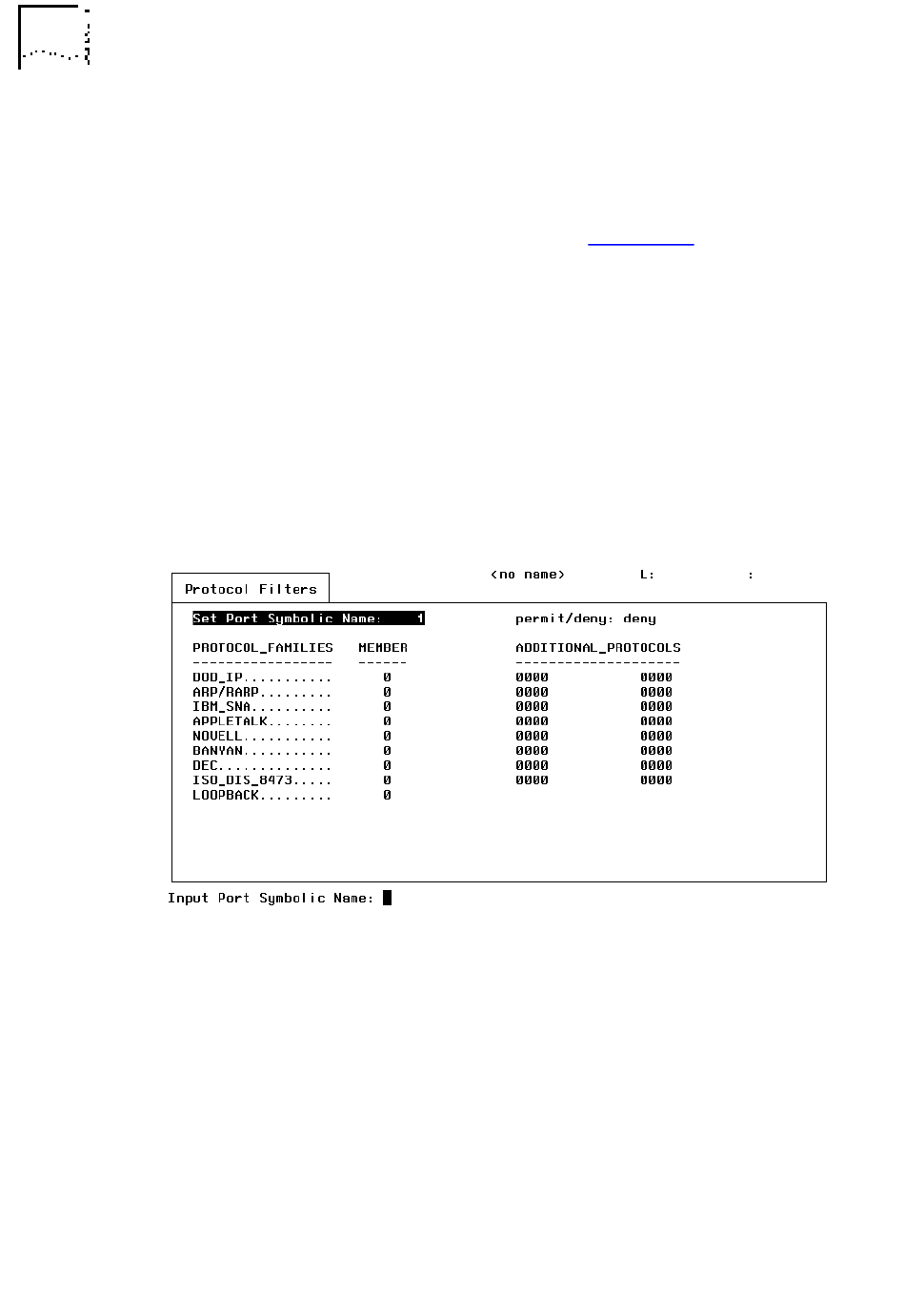

Figure 3-7 Protocol Filters
Set Port Symbolic Name: Text Field. Enter the number of the
port who's filter set you want to set up. Use 1 , 2 , 3 or E . Press
[Return] to accept the port name.
