2-40 C 2: G S
HAPTER ETTING TARTED
The Ping screen appears, as shown in Figure 2-20, after the
information for the Ping Settings screen has been supplied. The
Ping screen immediately starts displaying status messages when
information is received.
When you've finished with the Ping screen, press [Enter] or
[Return] to exit from it.

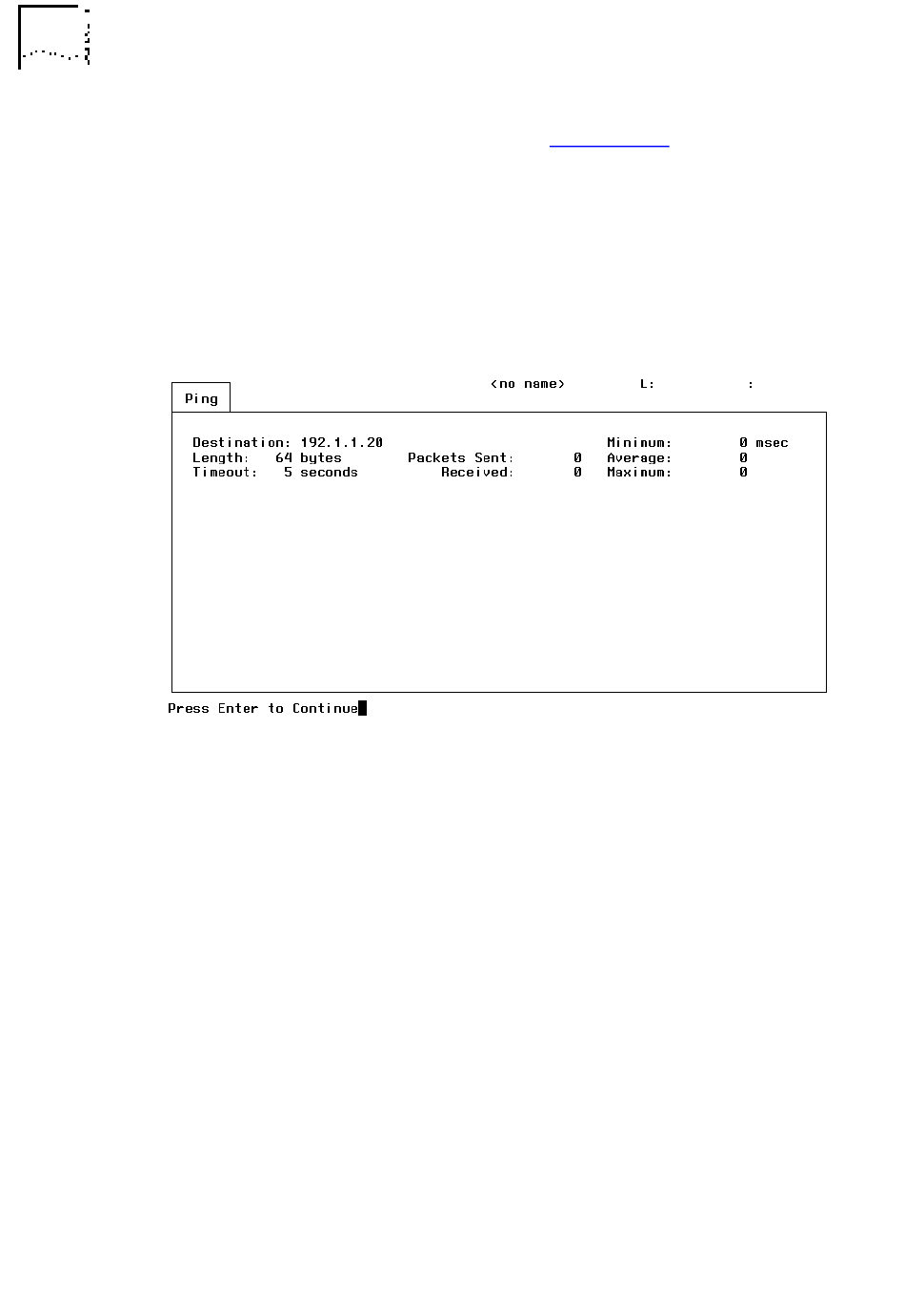

Figure 2-20 Ping
Destination: Display Field. The IP address or host name of the
remote device being pinged.
Packet Size: Display Field. The number of bytes in the packet,
excluding the header, that contains the echo request message.
Timeout: Display Field. The number of seconds PING waits for an
ICMP echo response message, before giving up and sending the
next ICMP echo request message.
Packets Sent: Display Field. The number of ICMP echo request
messages that have been sent to the destination address.
DUA1860-0AAA01
