Summary of Contents for GAUI X5

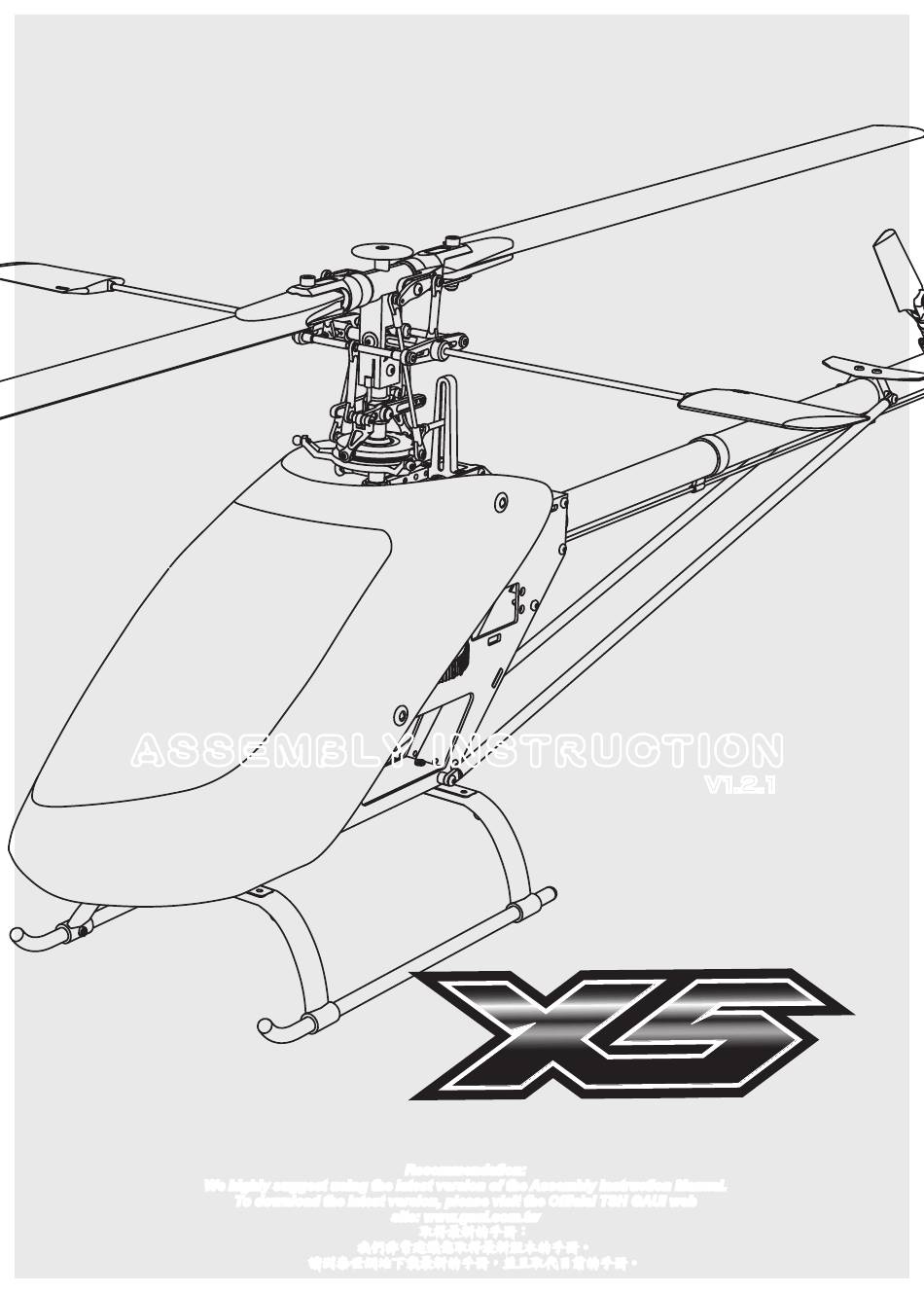

- Page 1 GAUI ASSEMBLY INSTRUCTION V1.2.1 Recommendation: We highly suggest using the latest version of the Assembly Instruction Manual. To download the latest version, please visit the Official TSH GAUI web site: www.gaui.com.tw 取得最新的手冊： 我們非常建議您取得最新版本的手冊。 請到泰世網站下載最新的手冊，並且取代目前的手冊。...
-
Page 2: Table Of Contents
Preface General Maintenance 保養建議 前言 Notices on replacing parts Academy of Model Aeronautics (AMA) 一般拆卸說明 Exploded Views Packing List. Tools and Equipment for Assembly 機體分解圖&零件表 內容物清單，自備工具 General Parts List Assembly Notice, gear ratio, fuselage assembly 一般零件表 組裝說明，齒輪比，機體組裝 Pre-flight Check 飛行前檢查 Preface Check Servo Travel Direction P.1 ~ P.2... -
Page 3: Preface
GAUI Preface TAI SHIH HOBBY CORPORATION 前言 Thank you for purchasing GAUI X5 High Performance RC Helicopter from Tai Shih Hobby Corporation (TSH). We hope you will enjoy the joy of flight. 感謝您購買泰世科技出品的 GAUI X5高性能遙控直升機，我們希望您可以盡情享受飛行 的樂趣。 In order to understand full assembly sequences, this instruction manual show the assembly information of this model, even though some elements are supplied as pre-assembled. - Page 4 GAUI LIABILITY DISCLAIMER TAI SHIH HOBBY CORPORATION 免責聲明 LIABILITY DISCLAIMER This product is for a radio controlled (RC) helicopter. Improper operation, maintenance or assembly can potentially cause a RC helicopter to pose a danger to persons or objects including but not limited to the possibility of causing serious physical injury and even death.
-
Page 5: Academy Of Model Aeronautics (Ama)
GAUI TAI SHIH HOBBY CORPORATION Academy of Model Aeronautics (AMA) For United States market, The Academy of Model Aeronautics (AMA) is a national organization representing modelers in the United States. Please refer the National Model Aircraft safety code from Academy of Model Aeronautics. -
Page 6: Basic Packing List 內容物清單
(GUEC GE-610)ESC 100A with built-in SBEC x1 pcs ○ ○ (GUEC GM-601)無刷馬達(1820W-kv910) x1 個 (GUEC GE-610)電子變速器 100A (內建SBEC) x1 個 X5 Steel Pinion Gear Pack (16T- for 5.0mm shaft) x1 pcs Socket Head Cap Screw - Black (M3x6)x6pcs.(M3x10) x2 pcs ○ ○ X5 鋼製馬達齒16T(孔徑5.0mm) x1 個... -
Page 7: Tools And Equipment For Assembly
GAUI Tools and Equipment for Assembly TAI SHIH HOBBY CORPORATION 自備工具及設備 2.0mm Hexagon Screw Driver 3.0mm Hexagon Screw Driver 2.5mm Hexagon Screw Driver 3.5mm Hexagon Screw Driver 2.0mm 六角螺絲起子 3.0mm 六角螺絲起子 2.5mm 六角螺絲起子 3.5mm 六角螺絲起子 Needle-nosed pliers Diagonal cutting plier... -
Page 8: Symbols For Assembly Notices
GAUI Symbols of Assembly Notices TAI SHIH HOBBY CORPORATION 組裝代號說明 Attention: Pay attention, care should be taken Apply general thread lock. Apply special thread lock. during assembly. To tight screw and apply thread lock. Tighten screw and apply thread lock. -
Page 9: Fuselage Assembly
GAUI Fuselage Assembly TAI SHIH HOBBY CORPORATION 機身組立 c.M3x6 a.M3x6 b.M3x4 c.M3x6 b.M3x4 b.M3x4 c.M3x6 e.M3x12 c.M3x6 d.M3x18 e.M3x12 e.M3x12 1. Complete installation in #B first. Then proceed to install d.M3x18 metal parts to side frame in Upper Servo Mount. -
Page 10: Fuselage Plates Assembly
GAUI TAI SHIH HOBBY CORPORATION Fuselage Plates Assembly 機身強化板組立 Before installing, check that the holes a.M3x6 in this aluminum part is threaded hole through hole. b.M3x6 請注意安裝時需確認 #B 為螺絲孔。 c.M3x14 b.M3x6 d.P3x6x4 b.M3x6 a.M3x6 All Screws on side plates should be applied with thread lock. -
Page 11: Servos Assembly
GAUI TAI SHIH HOBBY CORPORATION Servos Assembly 伺服器安裝 a.M2.6x10 a.M2.6x10 1. Refer (1) to install AIL, PIT servos into fuselage. 2. Refer (2) to install ELE servo to fuselage. 3. Refer (3) to install RUD servo to fuselage. 4. Refer (4) install electronic components to fuselage. -
Page 12: Motor Assembly
GAUI TAI SHIH HOBBY CORPORATION Motor Assembly - 1 馬達組立 - 1 a.M3x6 b.M3x10 c.M3x3 c.M3x3 c.M3x3 1. Install motor to motor plate with screws M3x6, M3x10 (not locking at this moment), insert 16T motor gear, check position of gear and motor shaft, lock M3x3 screws. -
Page 13: Flybar Base Assembly
GAUI Flybar Base Assembly TAI SHIH HOBBY CORPORATION 平衡桿座組立 Refer to P.20 for Main Blade Head assembly. a.M3x7 主旋翼頭組裝請參考P.20 b.M3x16 c.W3x6x0.5 d.N3x5.5L a.M3x7 d.N3x5.5L a.M3x7 c.W3x6x0.5 b.M3x16 #208782 #208758 #208759 #208350 GAUI Flybar Set Assembly TAI SHIH HOBBY CORPORATION 平衡系統組立... -
Page 14: Flybar Base Assembly
GAUI Flybar Base Assembly 平衡翼組立 TAI SHIH HOBBY CORPORATION Horizontal 水 平 135mm 135mm #208915 GAUI Tail Rotor Assembly-1 TAI SHIH HOBBY CORPORATION 尾旋翼總成組立-1 a.M3x10 b.M3x15 c.M3x20 c.M3x20 d.N3x5.5L b.M3x15 e.P2x11 a.M3x10 e.P2x11 #208766 d.N3x5.5L #208760 #208916... -
Page 15: Tail Rotor Assembly-2
GAUI Tail Rotor Assembly-2 TAI SHIH HOBBY CORPORATION 尾旋翼總承組立-2 a.M3x3 e.M3X16 f.N3x5.5L b.Ø3x15 c.P3x4x9.5 a.M3x3 d.W3.1x5.5x1.1 e.M3X16 f.N3x5.5L d.W3.1x5.5x1.1 c.P3x4x9.5 b.Ø3x15 Tail Rotor Assembly pleaser refer to P.20 尾旋翼總成組裝請參考P.20 #208765 #208782 #208921 #208922 GAUI Adjust Gear Mesh and Tail Fin Assembly 皮帶調整&水平翼組裝... -
Page 16: Assembly Cnc Swashplate Guide
GAUI TAI SHIH HOBBY CORPORATION Assembly CNC Swashplate guide 拉桿配置 a.M2x12 b.N2x4 c.M2X8 After assembly of ball links and linkages on servo horns, please install these horns on servos vertically (as shown). 伺服機舵片組裝完成後請將舵片 水平鎖附於伺服機上。 c.M2X8 b.N2X4 a.M2X12 #208906 b.N2X4 #208403... - Page 17 GAUI Checking Servo Travel Direction 伺服機做動方向 TAI SHIH HOBBY CORPORATION 1. Turn on the throttle hold on transmitter. 2. Moving throttle stick upward, all CCPM servos should move upward. 開啟發射機並確認油門為鎖定狀態。 將發射機油門(上)推時CCPM3顆伺服機需同時向上做動並將十字盤上推。 Mode 1 Mode 2 3. Moving throttle stick down, all CCPM servos should move downward.
-
Page 18: Throttle Curve And Pitch Curve
GAUI Throttle Curve and Pitch Curve TAI SHIH HOBBY CORPORATION 螺距&油門曲線設定 Normal Flight Freestyle/Aggresive 一般飛行模式 特技1模式 100% 100% 92.5% 92.5% Throttle Curve 油門曲線 Point-L Point-1 Point-2 Point-3 Point-4 Point-5 Point-H Point-L Point-1 Point-2 Point-3 Point-4 Point-5 Point-H Normal Flight Freestyle/Aggressive 一般飛行模式... -
Page 19: 飛行前檢查
GAUI Preflight Check TAI SHIH HOBBY CORPORATION 飛行前檢查 1. Check all screws are tighten firmly. (1-1,1-2,1-3) 1.各部位螺絲是否有確實鎖緊。(1-1.1-2.1-3) 2. Check gear mesh between motor gear and main gear are 2.馬達齒是否與主齒盤正確契合 P.9。(1-2) corresponding to each other. P9 (1-2) 3.傳動齒輪間隙是否正確 P.12。(1-2) 3. Check gear mesh between transmission gears. P12 (1-2) 4. -
Page 20: After Flight Check
GAUI After Flight Checking TAI SHIH HOBBY CORPORATION 飛行後檢查 1. Check all screws, make sure they are all tightened (not loose). Refer to P.17. ○ 各部位螺絲是否有確實鎖緊無鬆脫(請參考P.17)。 2. Check gear mesh between motor gear and main gear. Inspect any abnormal wear. -
Page 21: Unpacking And Replacing Main Axis
GAUI TAI SHIH HOBBY CORPORATION Unpacking and Replacing Main Axis 主軸拆卸說明 1. Unpack #208876 and remove swashplate guide. 2. Remove CCPM control linkages 3. Unpack main gear screw #208864 4. Uunpack #208865 screw 5. Remove main rotor head vertically 6. Unpack main rotor head screw #208864 1.卸下#208876並取出滑軌。... -
Page 23: Exploded View Of Main Rotor Head
GAUI Exploded View of Main Rotor head 主旋翼分解圖 TAI SHIH HOBBY CORPORATION 208872 208341 208906 208782 208874 208875 208781 208867 208348 208752 208781 208759 208755 208849 208915 208346 208759 208346 208781 208867 208781 208866 208349 208403 208871 208906 208347 208782... - Page 24 TAI SHIH HOBBY CORPORATION Parts List of Main Rotor Head 主旋翼分解圖零件表 208341 X5 CNC Stop Plate (Black anodized) X5 CNC煞車盤(電鍍黑) 208342 X5 CNC Main Rotor Yoke Set (Black anodized) X5 CNC主旋翼頭(電鍍黑) 208343 X5 CNC Main Grip Set (Black anodized) X5 CNC主旋翼夾頭(電鍍黑) 208345 X5 Spindle Shafts X5 橫軸...
-
Page 25: Swash Plate / Washout Arms Assembly
GAUI Swash plate / Washout Arms Assembly 十字盤/相位器分解圖 208353 208006 208849 208759 208806 208351 208906 208353 208354 208782 208781 208353 208401 208759 208759 208906 208781 208782 208906 208759 208401 208849 208353 208906 208353 208906 208401 208906 GAUI Main Gear / Main Mast Base Assembly 主齒盤/主軸座分解圖... -
Page 26: Main Gear / Wash Out Arms / Bearing Mount Assembly And Parts List
208355 X5 CNC Upper Servo Mount (Silver anodized) X5 CNC上伺服機座(亮銀) 208356 X5 CNC Lower Servo Mount (Silver anodized) X5 CNC下伺服機座(亮銀) 208358 X5 Main Gear Hub with One Way B. X5 主齒輪轂附單向軸承 208359 X5 Motor Mount (Silver anodized) X5 馬達座(亮銀) 208360 X5 One Way Sleeve Set (Black anodized) X5 單向鋼套及C型環(電鍍黑) -
Page 27: Exploded View Of Fuselage
GAUI Exploded View of Fuselage TAI SHIH HOBBY CORPORATION 機體分解圖 208865 208382 208709 208855 208865 208361 208858 208344 208858 208709 208855 208858 208402 208858 208344 208863 208890 208858 208402 208709 208855 208858 208858 208855 208856 208858 208855 208863 208362 208871... -
Page 28: Parts List Of Fuselage
Alu Square Post with 3mm thread hole (5x5x23.5mm) and 方鋁柱附3mm牙孔(5x5x23.5mm)及 208402 Round Post (3x4.8x23mm) 圓鋁柱(3x4.8x23mm) 208707 X5 Right CF Frame with Metal parts(1.6mm) X5 黑玻纖機身側板含附件(右)(1.6mm) 208708 X5 Left Fiber Frame(1.6mm) X5 黑玻纖側板(左)(1.6mm) X5 黑玻纖陀螺儀座及電池座及強化板組 208709 X5 Stiffening Plates and Mounts for electronics(1.6mm) (1.6mm) -
Page 29: Exploded View Of Tail Rotor 尾旋翼分解圖
GAUI TAI SHIH HOBBY CORPORATION Exploded View of Tail Rotor 尾旋翼分解圖 208868 208756 208864 208781 208908 208865 208369 208363 208757 208950 208756 208851 208868 208851 208369 208756 208864 208369 208782 208865 208868 208950 208757 208908 208781 208756 208868 208911 208323 208922 Ø... -
Page 30: Parts List Of Tail Rotor
TAI SHIH HOBBY CORPORATION 尾旋翼分解圖零件表 208322 X5 Guide Wheel Assembly X5 導輪 208323 Tail Boom (for X5 Belt Version-Black anodized) 尾管(X5 皮帶版用-電鍍黑)) 208332 Tail Push Rod (2x 605 mm) 尾舵拉桿(2x605 mm) 208369 CNC Tail Pitch Slider Set (for 5mm tail output shaft) CNC螃蟹夾組(5mm尾軸用) -
Page 31: General Parts List
208377 X5 CNC Tail Fram Set(Embed) (Black anodized) X5 CNC左右尾殼板(電鍍黑)(嵌合式) 208378 X5 CNC Torque Tube Tail Gear Case(Embed) X5 CNC尾軸傳齒輪箱組(嵌合式) 208366 X5 CNC Torque Tube with B. (for 500L blades) X5 CNC尾傳動軸桿組(適用500mm槳) X5 Torque Tube Tail Boom Assembly 208367 X5 CNC軸傳動尾管總成(電鍍黑) - Page 32 343mm GAUI http://www.gaui.com.tw E-mail: gaui@gaui.com.tw FAX: +886-2-2610-5567 MADE IN TAIWAN...
