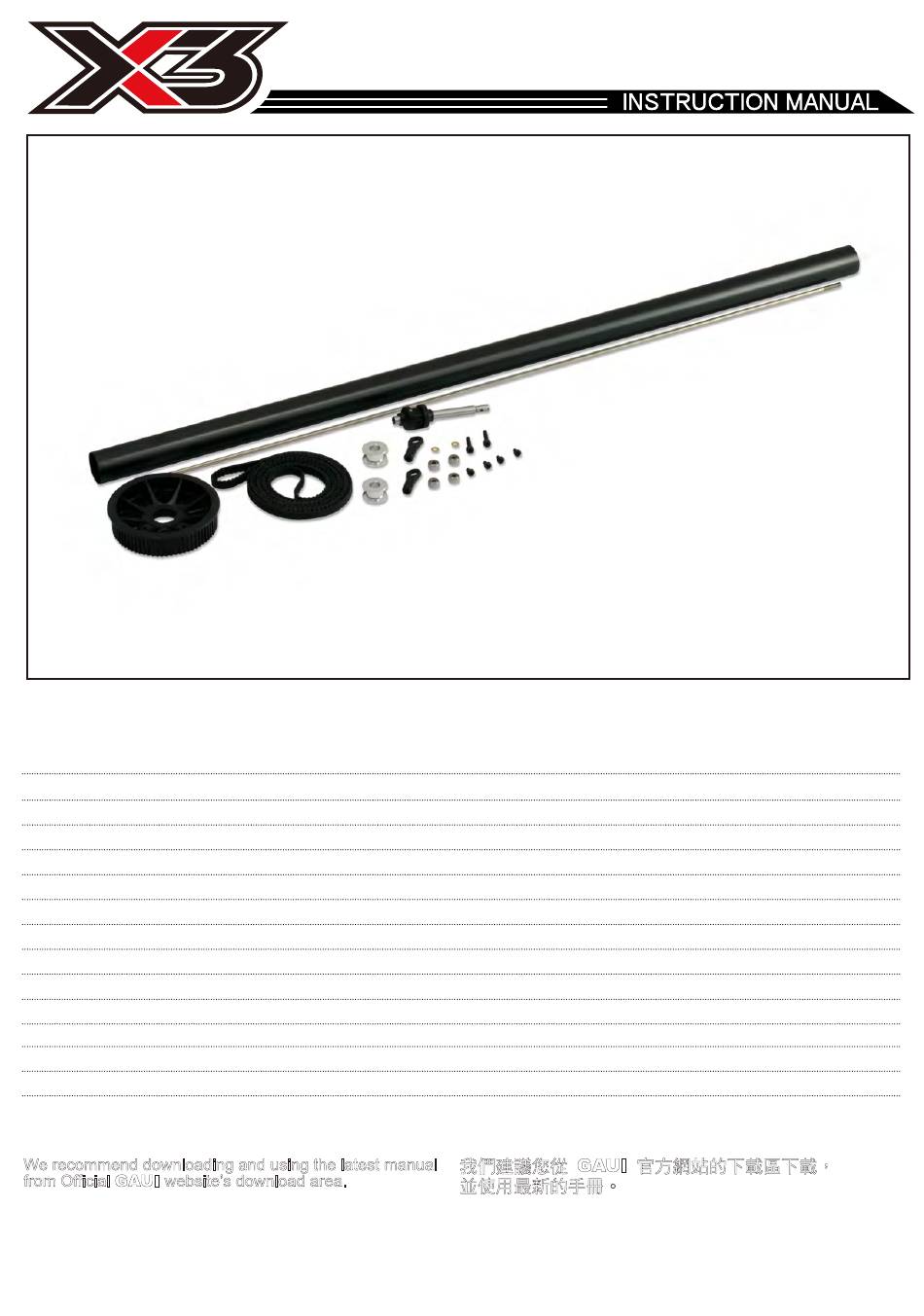

Tail Rotor Belt 544 MXL x1pcs X3 皮帶版尾管(425mm) x1 pcs Tail Boom (belt version)(425mm) x 1pcs X3 尾拉桿(403mm) x1 pcs X3 Tail prod (403mm) x 1pcs 71T 主皮帶齒輪 x1 pcs 71T Front Pulley Gear Set x 1pcs 15T 尾皮帶齒輪 x1 pcs 15T Tail Pulley Gear Set x 1pcs X3 尾軸...
Page 2
Please disassemble the tail boom from the helicopter frame 請先將傳動尾管組卸下。 Disassemble 卸下 Disassemble 卸下 Please disassemble the bearing and gears from tail transmission 請將尾殼傳動組的軸承及齒輪等卸下。 皮帶版組裝1 Belt Conversion - Assembly #1...
Page 3
Install the whole belt and gear assembly into the helicopter frame body. 將組裝好的皮帶齒盤組裝至機體內。 鎖付固定螺絲時請確認皮帶至合適的緊度。 Make sure the belt has the proper tension before fastening the mounting screws. 皮帶版組裝5 Belt Conversion - Assembly #5...
Page 4
M2x4 Disassemble the bevel gear and replace with the belt gear as the illustration in next page. 將傘齒盤卸下後配合右圖將皮帶齒盤組裝完成。 導輪 Belt guide wheel. B2x5x2.5 W2x3.5x0.5 B2x5x2.5 M2x10 1.Assemble the belt guide wheel, but please pay attention on how guide wheels needed to be installed as illustration shows.
Page 5
Tail Boom (for Belt version)(425mm) 皮帶版專用 皮帶版專用 Belt version Washer for gap adjustment W6.2x8x0.2 間隙調整W6.2x8x0.2 皮帶版專用 for belt version Please assemble the tail boom and linkage parts according to the illustration to convert to Belt Drive Version. 請配合圖示組裝並確認尾管及拉桿換成皮帶版專用的。 Disassemble 卸下 1.Disassemble the main gear and change belt and pulley as the illustration located in next page.
Page 6
*** Important *** Install the whole tail belt boom assembly in to the helicopter frame and pay attention on the direction of the belt as the illustration below. 將組裝好的尾皮帶總成置入機身並配合下圖注意皮帶方向。 注意皮帶旋轉方向。 Please notice the travel direction of the belt needs to be same as the illustration. Belt Conversion - Assembly #4 皮帶版組裝4...
Page 7
