SB-2-586-E
Page 13

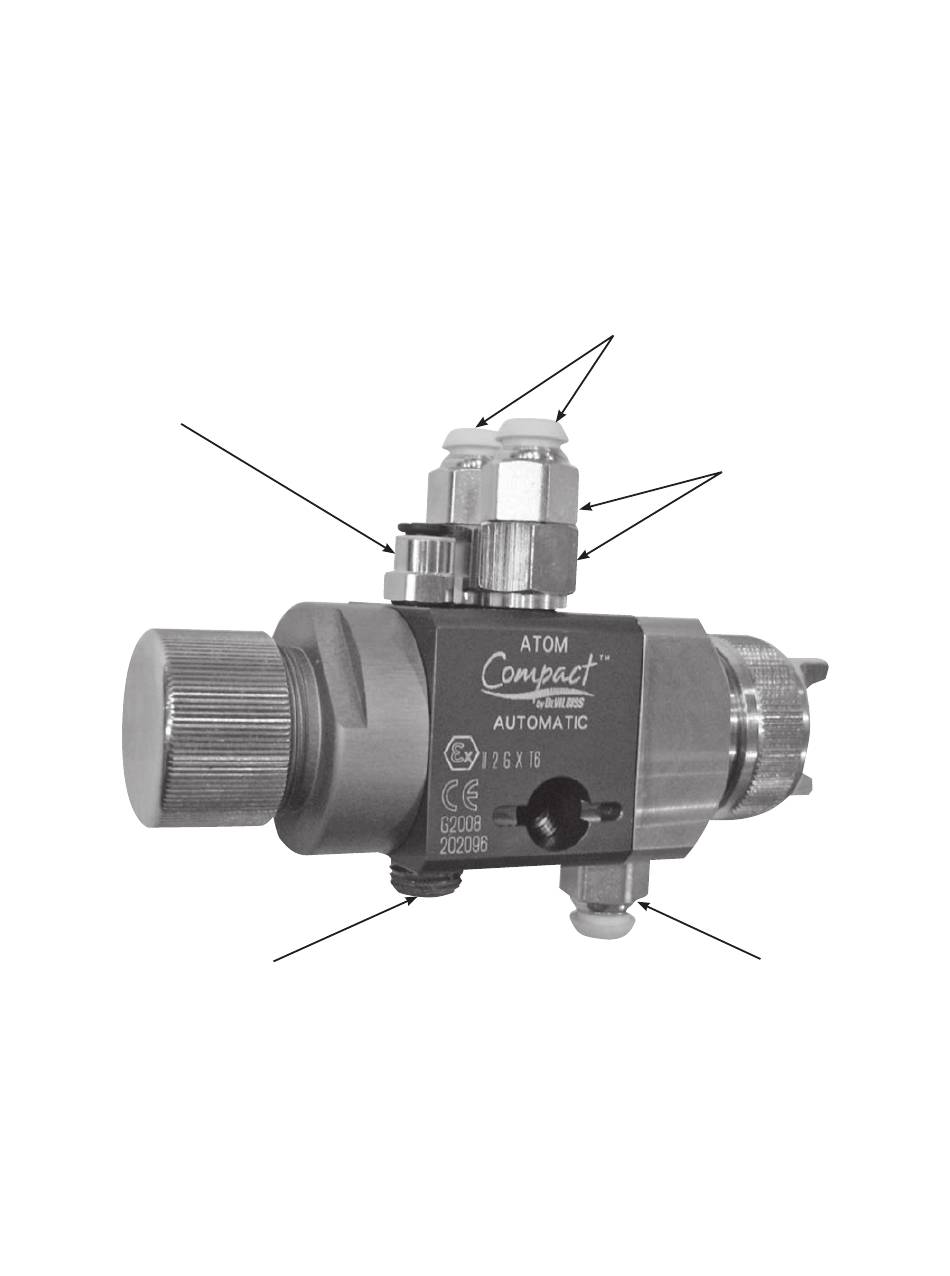

6-530 FITTING KIT for COMPACT-I AUTOMATIC SPRAY GUN
PUSH-TO-LOCK CONNECTIONS
SEPARATE FAN AND ATOMIZING AIR
6MM O.D. TUBE FOR CYLINDER AIR
8MM O.D. TUBE FOR FLUID, FAN AND ATOMIZING
8 MM O.D. TUBE CONNECTIONS
FOR SEPARATE FAN AND
ATOMIZING AIR
6 MM O.D. TUBE CONNECTION
FOR CYLINDER AIR
M12-5 FITTINGS FOR
SEPARATE FAN AND
ATOMIZING AIR
1/4" BSPP SCREW
8 MM O.D. TUBE CONNECTION
INSTALL TO PLUG COMBINED
FOR FLUID SUPPLY
FAN AND ATOMIZING PORT
FLUID AND FAN/ATOMIZING AIR PORTS ARE 1/4" BSPP(f) THREAD
CYLINDER AIR PORT IS 1/8" BSPP(f) THREAD
BSPP = BRITISH STRAIGHT PIPE PARALLEL
