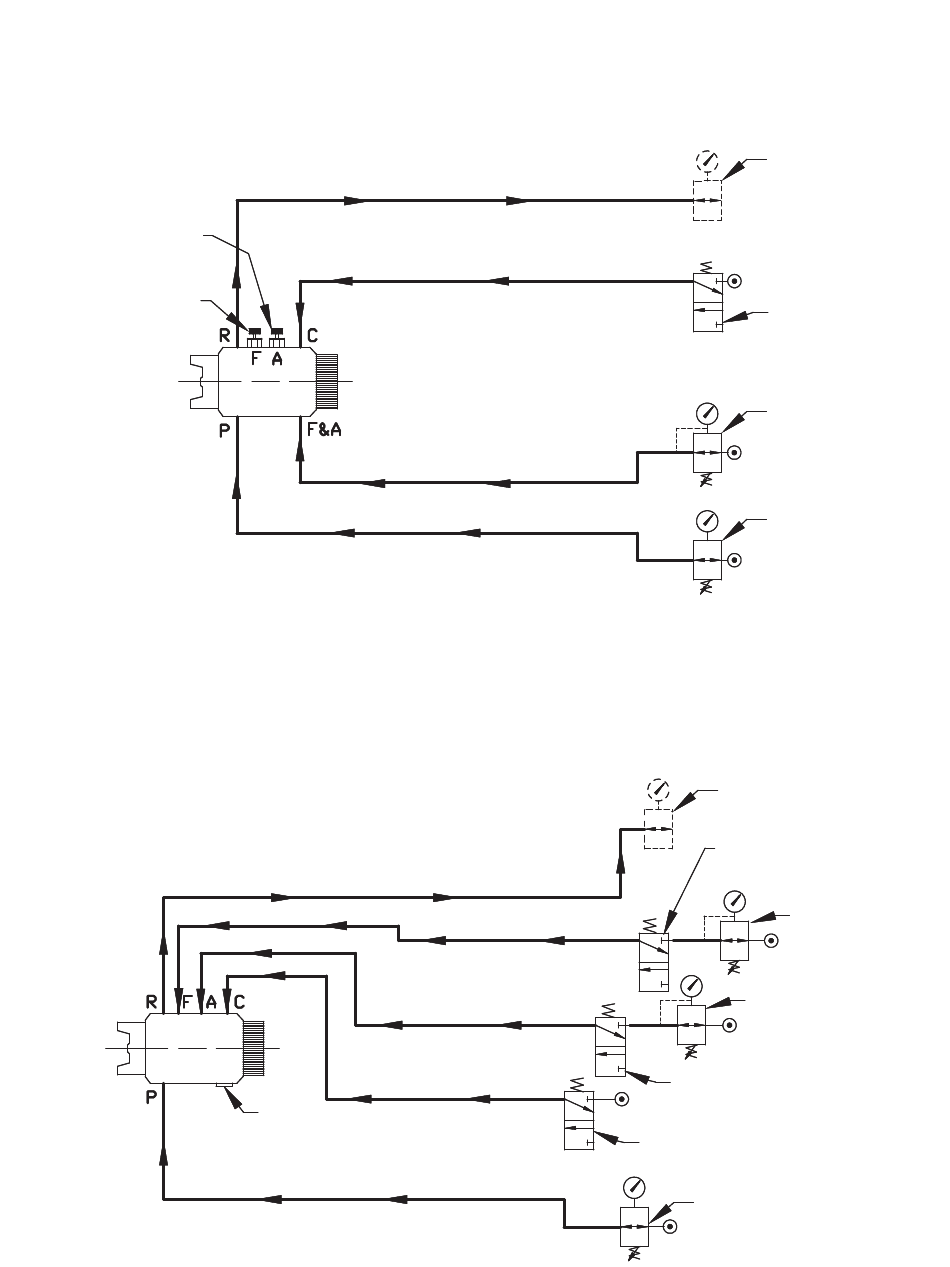

COMPACT-I AUTOMATIC GUN — TYPICAL AIR & FLUID DIAGRAMS
ATOMIZING
ADJUSTMENT
VALVE
FAN
ADJUSTMENT
VALVE
COMBINED FAN & ATOMIZING AIR
(STANDARD GUN HOOK-UP)
FLUID RETURN (IF USED)
CYLINDER AIR SUPPLY
FAN & ATOMIZING AIR SUPPLY
SEPARATE FAN & ATOMIZING AIR
(OPTIONAL GUN HOOK-UP)
FLUID RETURN (IF USED)
ATOMIZING AIR SUPPLY
CYLINDER AIR SUPPLY
PLUG
FLUID SUPPLY
(COMBINED)
FLUID SUPPLY
FAN AIR SUPPLY
SB-2-586-E
BACK PRESSURE
VALVE
CYLINDER AIR
VALVE (3 WAY)
AIR REGULATOR
(FAN & ATOMIZING
AIR COMBINED)
FLUID
REGULATOR
BACK PRESSURE VALVE
FAN AIR VALVE (3 WAY)
FAN AIR
REGULATOR
ATOMIZING AIR
REGULATOR
ATOMIZING AIR VALVE (3 WAY)
CYLINDER AIR VALVE (3 WAY)
FLUID REGULATOR
