Page 12
SB-2-586-E

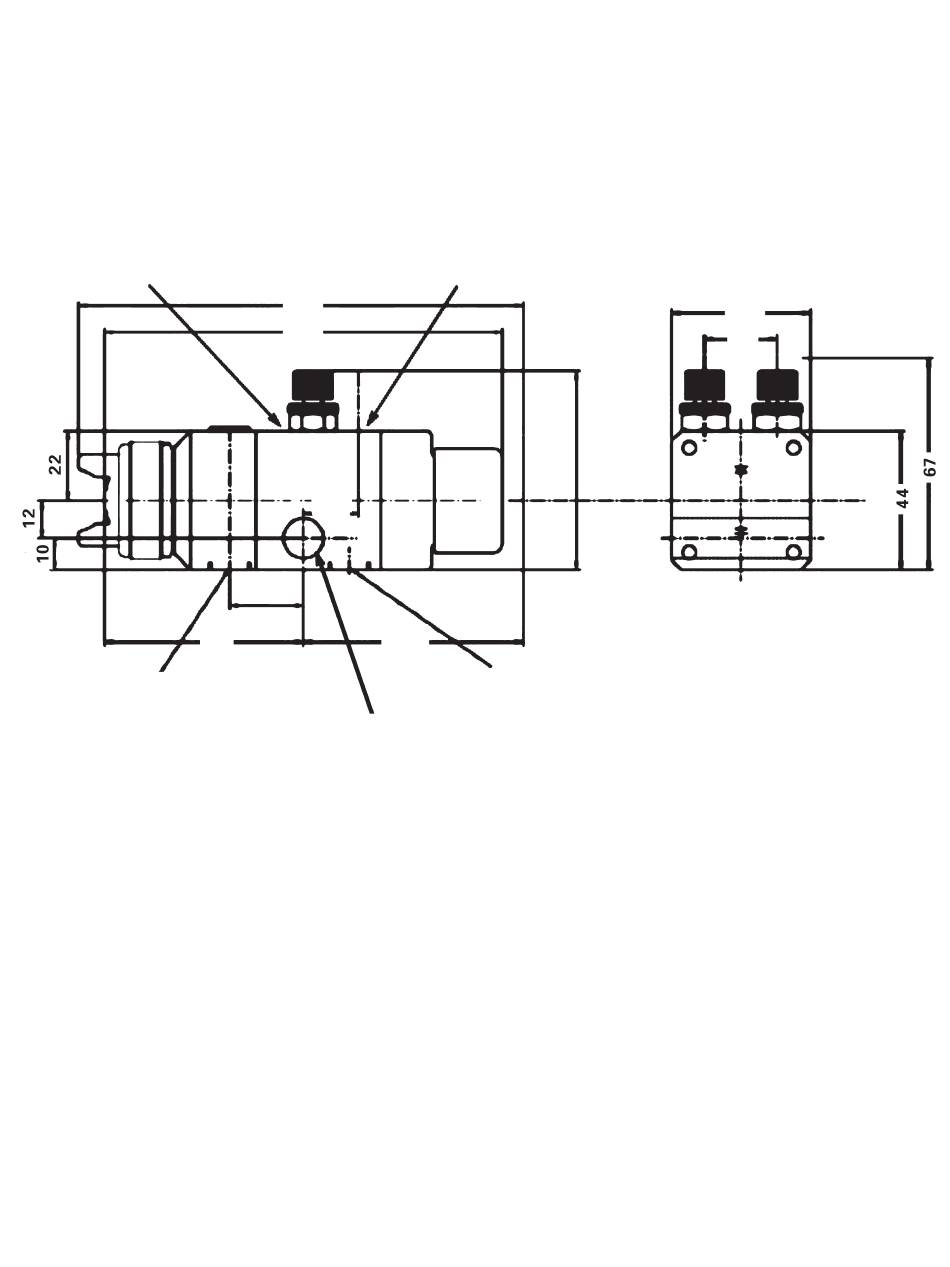

INSTALLATION DIMENSIONS for COMPACT-I AUTOMATIC SPRAY GUN
1/8" BSPP (m)
Cylinder Air
Inlet
M12 (2)
141
44
126
23
17.5
23.4
63
69.5
1/4" BSPP (m) Fluid Inlet
1/4" BSPP (m) Fan/Atomizing Air Inlet
12.8mm o / Mounting Hole
DIMENSIONS IN MM
(MULTIPLY BY .03937 TO OBTAIN INCHES)
BSPP = BRITISH STRAIGHT PIPE PARALLEL
