- Page 1 6G HDMI Audio Inserter w/HDCP2.2 - # 15414 Operation Manual...
- Page 2 Introduction The HDMI 4K2K Audio Inserter could insert an external audio signal into your HDMI or DVI (with HDMI to DVI adaptor) signal path. The unit allows you to insert stereo or multi-channel surround sound signals, capability of selecting audio formats while extending your HDMI signal. Further, both input and output HDMI support UHD resolution up to 4K2K@60Hz (YUV444), and capable of provide high quality of audio and video performance.

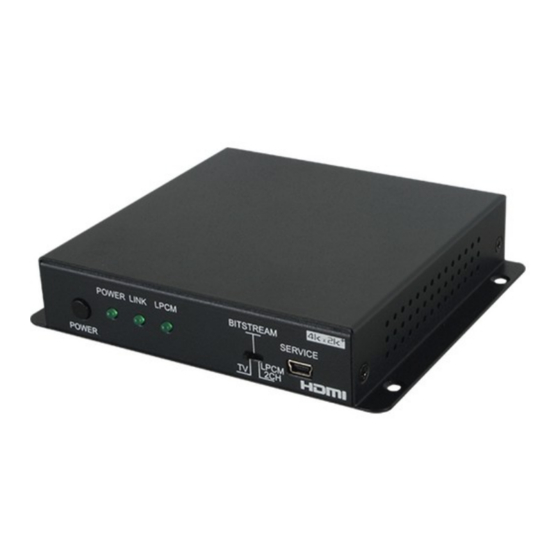

- Page 3 Operation Controls and Front Panel Functions 1. POWER & POWER LED: Press POWER key to turn on/off the unit, when unit power on, the POWER LED will illuminated, turn off when unit power is disconnected. LINK LED: The LED will illuminate when detected HDMI input. 3.
- Page 4 Connect the adaptor included in the package and connect to AC wall outlet for power supply. Specifications Video Bandwidth 600MHz/6Gbps Input Ports 1×HDMI, 1×Optical, 2×RCA (Analog Audio), 1×Mini-USB (Service only 1×HDMI Output Ports HDMI Resolutions VGA~WUXGA (RB), 408i~1080p@24/50/60, 4K@24/25/30, 4K@50/60 (YUV444) HDMI Audio Sampling Up to 192kHz Rates...
