Figure 2 Cross-Band Simplex Only Capable Dvrs - Conceptual Diagram - Futurecom DVRS User Manual

8A083X30 Rev.11
APX Series P25 Interface
DVRS User's Guide

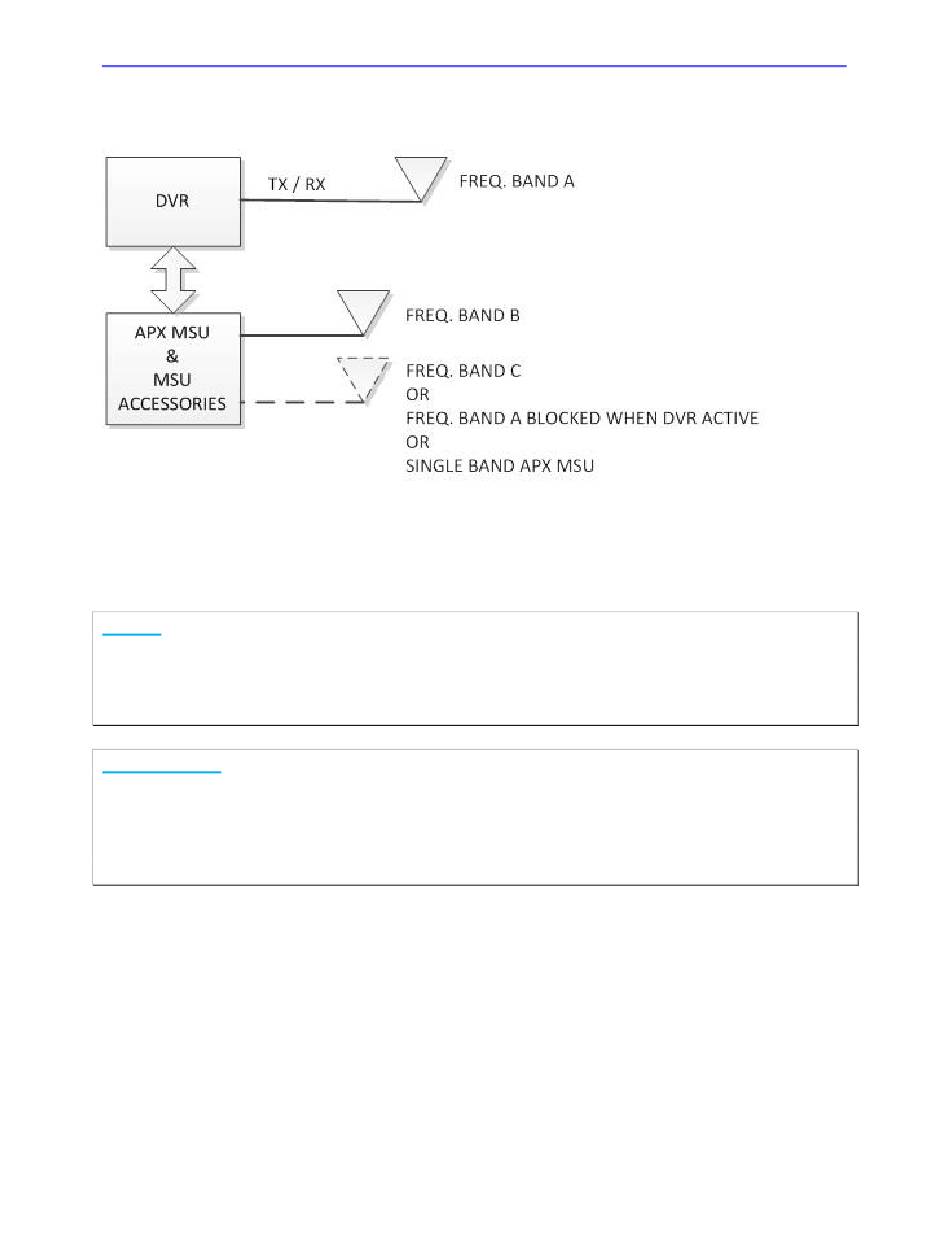

Figure 2 Cross-Band Simplex Only Capable DVRS - Conceptual Diagram

APX8500 may require interface kit. Please refer to the DVR/VRX1000 Ordering Guide.
NOTE:
The vehicular (side-by-side) mount Cross-Band DVR can be interfaced to a High Power
MSU, however, the Transmit power of the MSU must be reduced to comply with the
maximum power restrictions described in the RF Safety Booklet 8F083X03, which is
provided with the DVR.
IMPORTANT!
The DVRS is shipped equipped with custom filters tuned to the specified
frequency range provided by the Customer. Programming the DVR / MSU to
operate on frequencies outside of the original specified bands may result in
intermittent or complete loss of communications. Frequency changes may require
filter retuning or replacement.
