DVRS Status Display

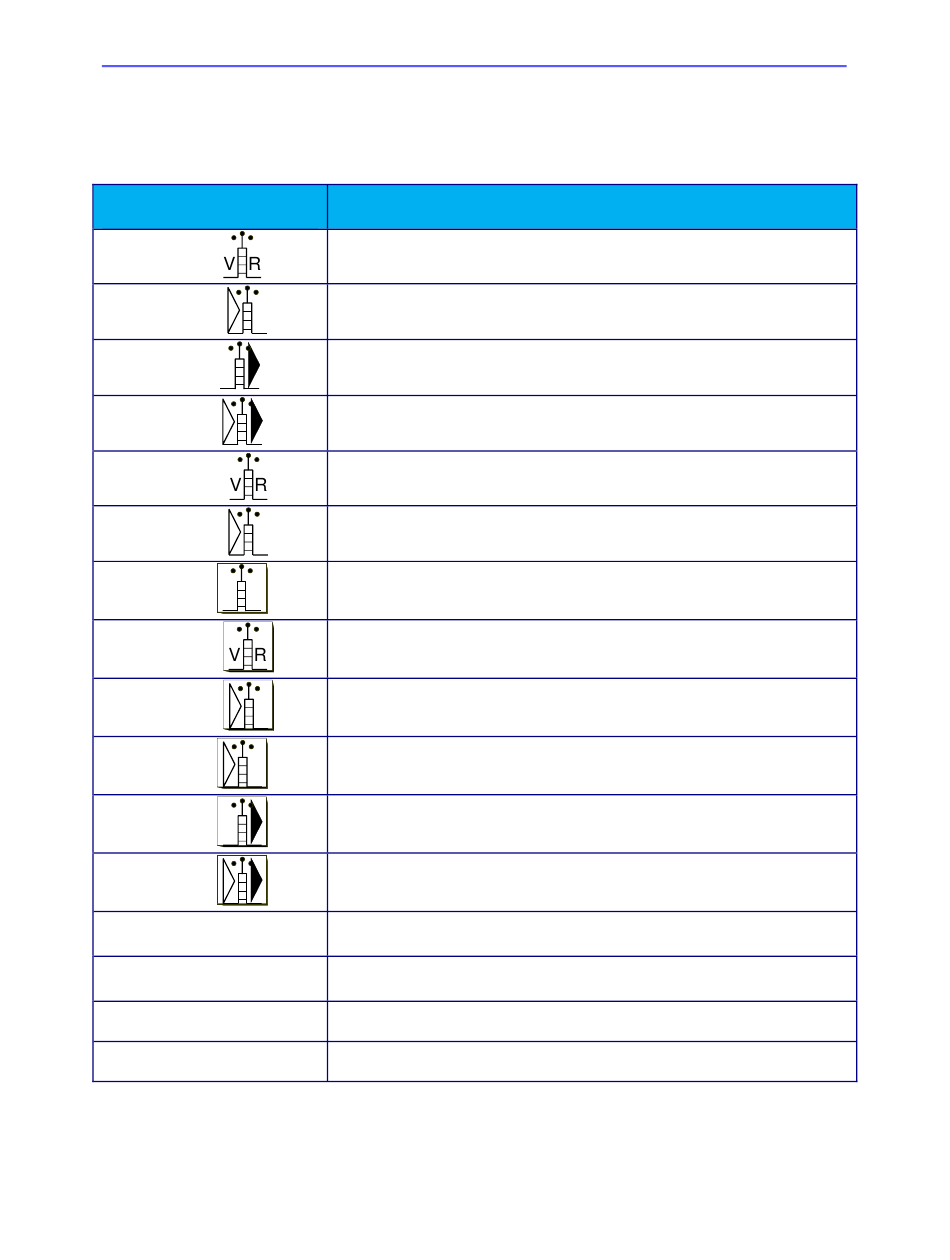

The following MSU control head display Icons / messages relate to the DVRS operation:
O5 DISPLAY ICON /
MESSAGE
Steady
Steady
Steady
Steady
Flashing
Flashing
V R
Steady
Flashing
Flashing
Steady
Steady
Steady
VR SERVICE
VR ERROR
VR IN RESET
VR DISABLED

Table 5 DVRS Status Display Messages / Icons

January 2019
DVRS STATUS DESCRIPTION
DVR is in a Primary State
Primary DVR Receiving
Primary DVR Transmitting
Primary DVR Receiving and Transmitting
DVR is in a Secondary State
Secondary DVR Receiving
DVR is in a Permanent Primary State
DVR is in a Permanent Primary on Standby (there is
another Permanent Primary already present in the area)
Permanent Primary on Standby Receiving
Permanent Primary Receiving
Permanent Primary Transmitting
Permanent Primary Receiving and Transmitting
DVR is in Service Mode (during re-flashing of the
firmware).
DVR detected error. Display toggles between VR ERROR
and the actual error code / number.
DVR is being reset
DVR Disabled on selected MSU TG / Mode
